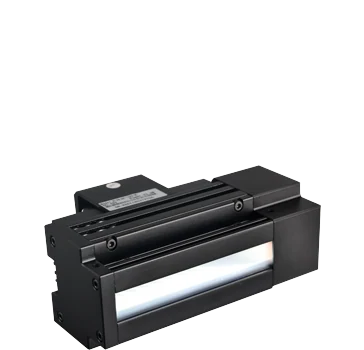

Line Scan Light, 143 mm, Red (LS-LSC-0646)
Model LS-LSC-0646
- ColourRed
- Emitting area100 mm × 17 mm
- Size143 mm × 58 mm × 90.1 mm
- Power48 W
- Wavelength625 nm
$459.00
Ships in 2-3 weeks
0.66 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Line Scan Light, 143 mm, Red. One-piece aluminum alloy housing with fan for good heat dissipation Imported high-power LEDs with brightness up to 100 × 10, 000 lux
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0646 |
|---|
Interfaces and I/O
| Connector type | 19M-6H |
|---|---|
| Cable length | 500 mm |
Light
| Color | Red |
|---|---|
| Wavelength | 625 nm |
| LED rows | 1 |
| Emitting area dimension | 100 mm × 17 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 48 W |
|---|
Mechanical
| Dimension | 143 mm × 58 mm × 90.1 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
