Line Scan Light, 1070 mm, White (LS-LSC-0658)
  • Line Scan Light, 1070 mm, White (LS-LSC-0658)

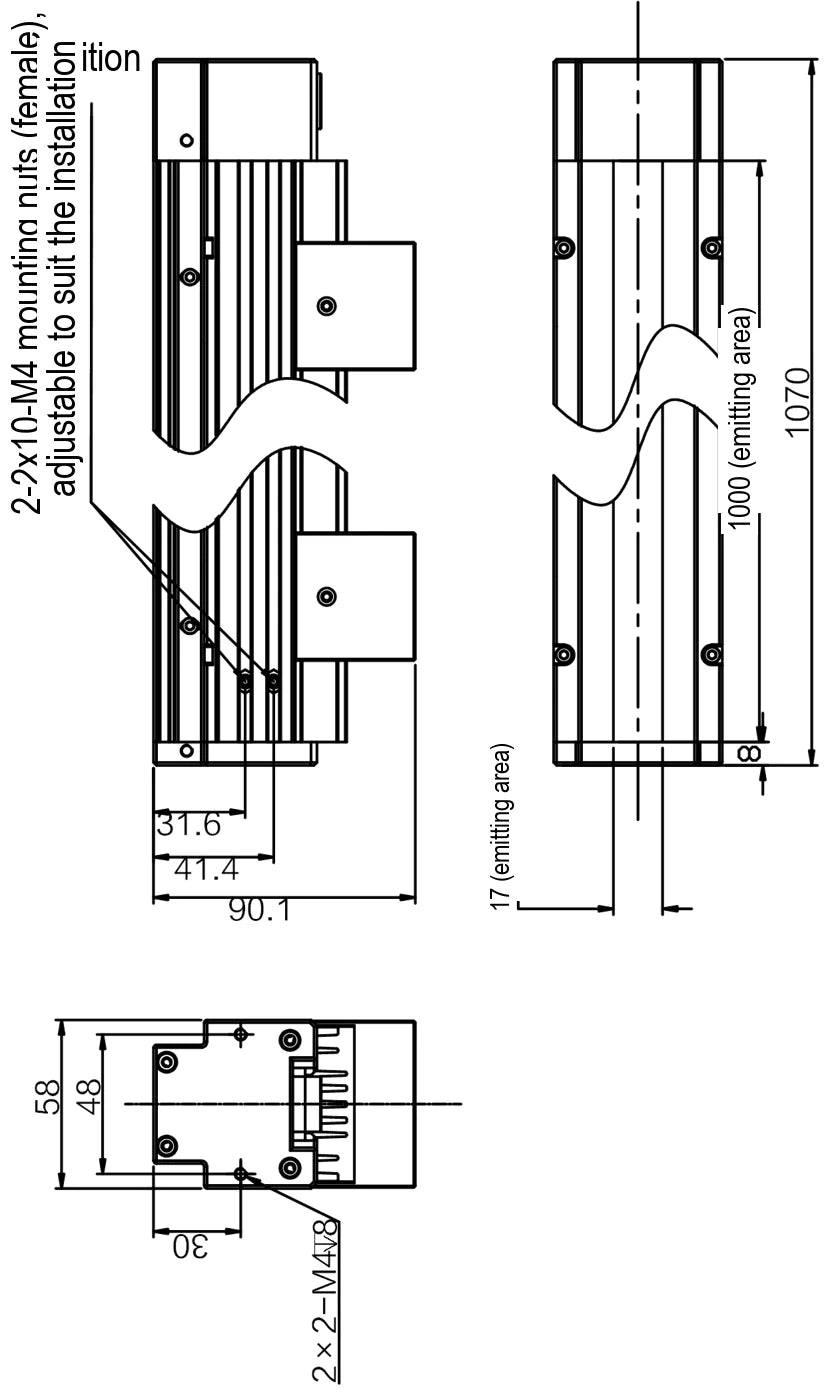

  • LS-LSC-0658 dimensions (mm)

Line scan lights

Line Scan Light, 1070 mm, White (LS-LSC-0658)

Model LS-LSC-0658

  • ColourWhite
  • Emitting area1000 mm × 17 mm
  • Size1070 mm × 58 mm × 90.1 mm
  • Power432 W
$2,899.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

0.66 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Line Scan Light, 1070 mm, White (LS-LSC-0658)LS-LSC-0658

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Line Scan Light, 1070 mm, White. One-piece aluminum alloy housing with fan for good heat dissipation Imported high-power LEDs with brightness up to 100 × 10, 000 lux

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSC-0658

Interfaces and I/O

Connector typeDual-channel 19M-6H
Cable length500 mm

Light

ColorWhite
Color temperature6000 ~ 7000K
LED rows1
Emitting area dimension1000 mm × 17 mm
Diffuse plate includedIncluded

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% to 85% RH (non-condensing)

Electrical

Power432 W

Mechanical

Dimension1070 mm × 58 mm × 90.1 mm
Shipping weight (estimated)0.66 kg

Other models in the High-brightness line lights (LS-LSC-S61) series

See all 22 models
ModelSize / key dataPriceAvailabilityLink
LS-LSC-0646 143 mm, Red $459.00 Ships in 2-3 weeks View
LS-LSC-0647 143 mm, White $459.00 Ships in 2-3 weeks View
LS-LSC-0648 243 mm, White $739.00 Ships in 2-3 weeks View
LS-LSC-0649 343 mm, White $1,009.00 Ships in 2-3 weeks View
LS-LSC-0650 393 mm, White $1,139.00 Ships in 2-3 weeks View
LS-LSC-0652 420 mm $1,269.00 Ships in 2-3 weeks View
LS-LSC-0651 443 mm, White $1,279.00 Ships in 2-3 weeks View
LS-LSC-0653 543 mm, White $1,549.00 Ships in 2-3 weeks View
LS-LSC-0654 643 mm, White $1,809.00 Ships in 2-3 weeks View
LS-LSC-0655 770 mm, White $2,089.00 Ships in 2-3 weeks View
LS-LSC-0656 870 mm, White $2,359.00 Ships in 2-3 weeks View
LS-LSC-0657 970 mm, White $2,629.00 Quote Ships in 2-3 weeks View
LS-LSC-0659 1170 mm, White $3,169.00 Quote Ships in 2-3 weeks View
LS-LSC-0660 1270 mm, White $3,439.00 Quote Ships in 2-3 weeks View
LS-LSC-0661 1370 mm, White $3,709.00 Quote Ships in 2-3 weeks View
LS-LSC-0662 1570 mm, White $4,249.00 Quote Ships in 2-3 weeks View
LS-LSC-0663 1670 mm, White $4,519.00 Quote Ships in 2-3 weeks View
LS-LSC-0664 1770 mm, White $4,789.00 Quote Ships in 2-3 weeks View
LS-LSC-0665 1870 mm, White $5,059.00 Quote Ships in 2-3 weeks View
LS-LSC-0666 1970 mm, White $5,329.00 Quote Ships in 2-3 weeks View
LS-LSC-0667 2070 mm, White $5,589.00 Quote Ships in 2-3 weeks View
