Line scan lights
Line Scan Light, 170 mm, White (LS-LSC-0671)
Model LS-LSC-0671
- ColourWhite
- Emitting area142 mm × 17 mm
- Size170 mm × 109 mm × 53 mm
- Power23.0 W
$579.00
Ships in 2-3 weeks
0.66 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Line Scan Light, 170 mm, White. Modular design: coaxial module and line light detach easily One-piece aluminum alloy housing for good heat dissipation
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0671 |
|---|
Interfaces and I/O
| Connector type | 20M-4J |
|---|---|
| Cable length | 500 mm |
Light
| Color | White |
|---|---|
| Color temperature | 6000 ~ 7000K |
| Emitting area dimension | 142 mm × 17 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 23.0 W |
|---|
Mechanical

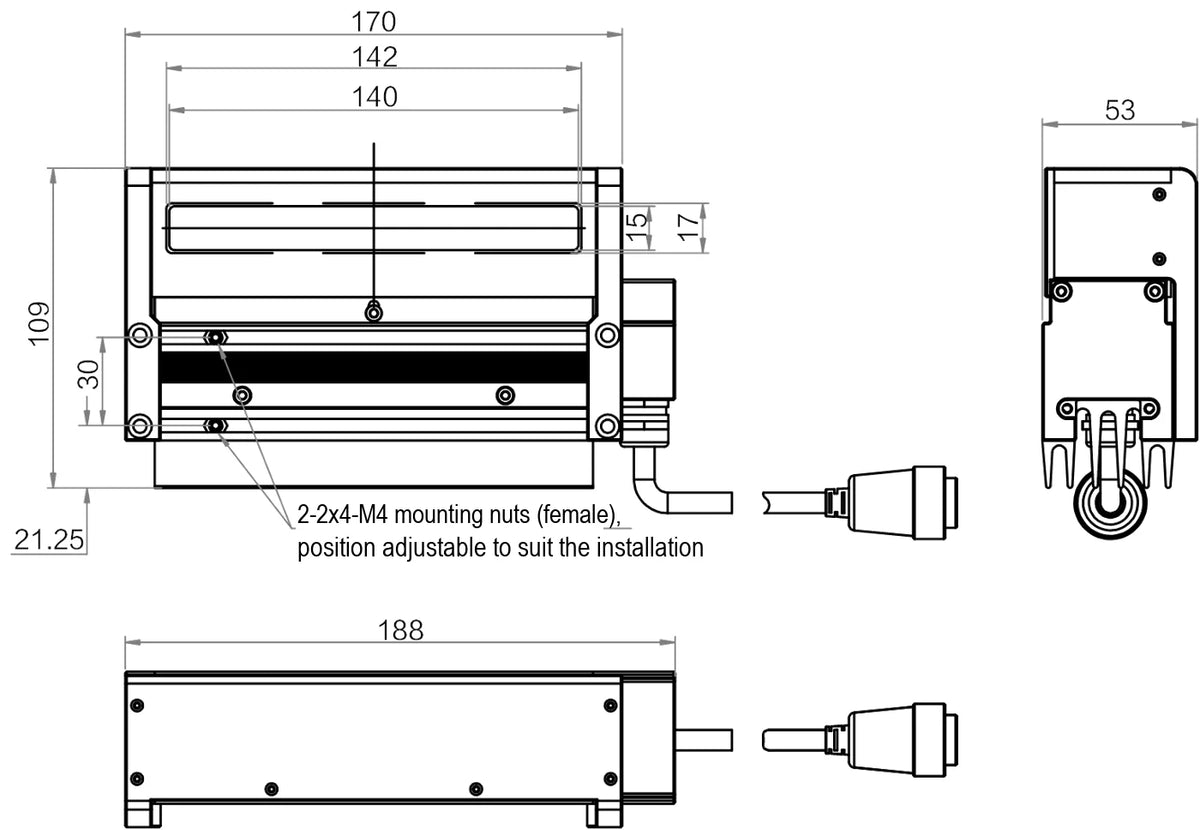

| Dimension | 170 mm × 109 mm × 53 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
Other models in the High-brightness line lights (LS-LSC-S63) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0672 | 338 mm, White | $989.00 | Ships in 2-3 weeks | View |
| LS-LSC-0673 | 470 mm, White | $1,389.00 | Ships in 2-3 weeks | View |
