C-mount machine vision lenses

Choose the lens beyond its mount

Choose a C-mount lens for an industrial camera by sensor coverage, field of view and working distance. These catalog entries are explicitly classified as C-mount; CS-mount and other lens interfaces are separate choices.

All Machine vision lenses

1330 models Configure a systemAll lenses
C-mount machine vision lenses

841-864 of 1330 models

Products

Compare
LS-FFL-07271", C-mount machine vision lens, 0.2x, WD 590 mm 0.2xC-mount1"590 mmF13.5$309.00 Ships in 2-3 weeks
LS-FFL-07281", C-mount machine vision lens, 0.2x, WD 550 mm 0.2xC-mount1"550 mmF13.6$309.00 Ships in 2-3 weeks
LS-FFL-07661" machine vision lens, 0.29x 0.29xC-mount1"225 mmF9.5$309.00 Ships in 2-3 weeks
LS-FFL-07651", C-mount machine vision lens, 0.29x, WD 200 mm 0.29xC-mount1"200 mmF9.5$309.00 Ships in 2-3 weeks
LS-FFL-07641", C-mount machine vision lens, 0.28x, WD 680 mm 0.28xC-mount1"680 mmF11.8$309.00 Ships in 2-3 weeks
LS-FFL-07631", C-mount machine vision lens, 0.27x, WD 425 mm 0.27xC-mount1"425 mmF10$309.00 Ships in 2-3 weeks
LS-FFL-07621", C-mount machine vision lens, 0.26x, WD 186 mm 0.26xC-mount1"186 mmF9.5$309.00 Ships in 2-3 weeks
LS-FFL-07611", C-mount machine vision lens, 0.25x, WD 465 mm 0.25xC-mount1"465 mmF10$309.00 Ships in 2-3 weeks
LS-FFL-07601", C-mount machine vision lens, 0.24x, WD 760 mm 0.24xC-mount1"760 mmF11.2$309.00 Ships in 2-3 weeks
LS-FFL-07591", C-mount machine vision lens, 0.22x, WD 530 mm 0.22xC-mount1"530 mmF10.9$309.00 Ships in 2-3 weeks
LS-FFL-07581", C-mount machine vision lens, 0.22x, WD 445 mm 0.22xC-mount1"445 mmF12.3$309.00 Ships in 2-3 weeks
LS-FFL-07571", C-mount machine vision lens, 0.22x, WD 380 mm 0.22xC-mount1"380 mmF12.3$309.00 Ships in 2-3 weeks
LS-FFL-07561", C-mount machine vision lens, 1.18x, WD 630 mm 1.18xC-mount1"630 mmF5.6$309.00 Ships in 2-3 weeks
LS-FFL-07551", C-mount machine vision lens, 0.18x, WD 330 mm 0.18xC-mount1"330 mmF18.7$309.00 Ships in 2-3 weeks
LS-FFL-07541", C-mount machine vision lens, 0.17x, WD 1050 mm 0.17xC-mount1"1050 mmF10.6$309.00 Ships in 2-3 weeks
LS-FFL-07721", C-mount machine vision lens, 0.175x, WD 640 mm 0.175xC-mount1"640 mmF10.9$309.00 Ships in 2-3 weeks
LS-FFL-07531", C-mount machine vision lens, 0.16x, WD 696 mm 0.16xC-mount1"696 mmF5$309.00 Ships in 2-3 weeks
LS-FFL-07521", C-mount machine vision lens, 0.16x, WD 350 mm 0.16xC-mount1"350 mmF15.5$309.00 Ships in 2-3 weeks
LS-FFL-07511", C-mount machine vision lens, 0.14x, WD 700 mm 0.14xC-mount1"700 mmF12$309.00 Ships in 2-3 weeks
LS-FFL-07501", C-mount machine vision lens, 0.14x, WD 600 mm 0.14xC-mount1"600 mmF15$309.00 Ships in 2-3 weeks

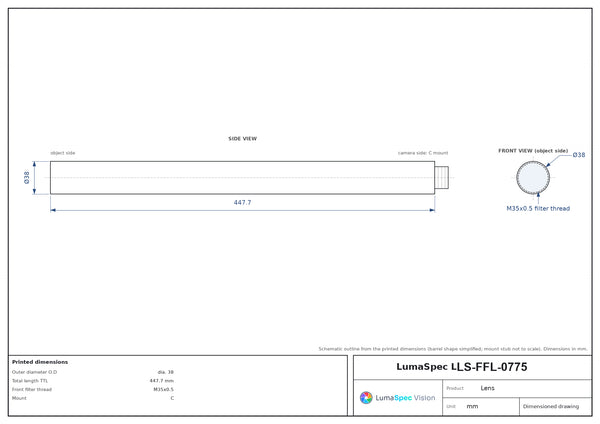

LS-FFL-07751.1", C-mount machine vision lens, 1x, WD 370 mm 1xC-mount1.1"370 mmF25$309.00 Ships in 2-3 weeks

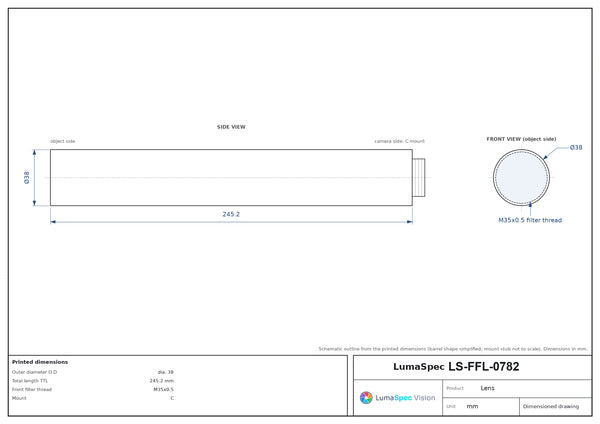

LS-FFL-07821.1", C-mount machine vision lens, 0.7x, WD 300 mm 0.7xC-mount1.1"300 mmF17.9$309.00 Ships in 2-3 weeks
LS-FFL-07811.1", C-mount machine vision lens, 0.4x, WD 582 mm 0.4xC-mount1.1"582 mmF10$309.00 Ships in 2-3 weeks
LS-FFL-07801.1", C-mount machine vision lens, 0.4x, WD 550 mm 0.4xC-mount1.1"550 mmF13.2$309.00 Ships in 2-3 weeks

Choose the lens beyond its mount

A matching thread is the start of a lens selection. The lens must also cover the sensor and form the required field at the available working distance. Use the individual specifications to compare focal length, image circle and focus range before choosing a model.

  • Match the camera mount and flange arrangement. A CS-mount camera is a different mechanical case; confirm the adapter or spacer arrangement rather than treating the two mounts as interchangeable.
  • Compare the sensor diagonal with the rated image circle. A lens may attach correctly and still vignette the corners of a larger sensor.
  • Set the field of view and working distance first, then check focal length, aperture, resolution and the clearance needed for connectors and mounting.

Configure a system · Browse all Machine vision lenses
