Machine vision lenses
1.1", C-mount Machine Vision Lens, 0.7x, WD 300 mm (LS-FFL-0782)
Model LS-FFL-0782
- Magnification0.7x
- MountC-mount
- Sensor1.1"
- Working distance300 mm
- Aperture17.9
$309.00
Ships in 2-3 weeks
0.52 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1.1", C-mount Machine Vision Lens. At a glance: magnification 0.7x; working distance 300 mm; max sensor size 18 mm (1.1"); object-side resolution 17.2 µm; image-side f/# 17.9.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0782 |
|---|
Optics
| Magnification (x) | 0.7 |
|---|---|
| Working distance (mm) | 300 |
| Image-side F/# | 17.9 |
| Object-side telecentricity (deg max) | Non-telecentric |
| Image-side distortion (% max) | 0.02 |
| Numerical aperture NA | 0.01948 |
| Object-side resolution (um) | 17.2 |
| Theoretical depth of field (mm) | 2.9 |
| Image-side MTF30 (lp/mm) | 55 |

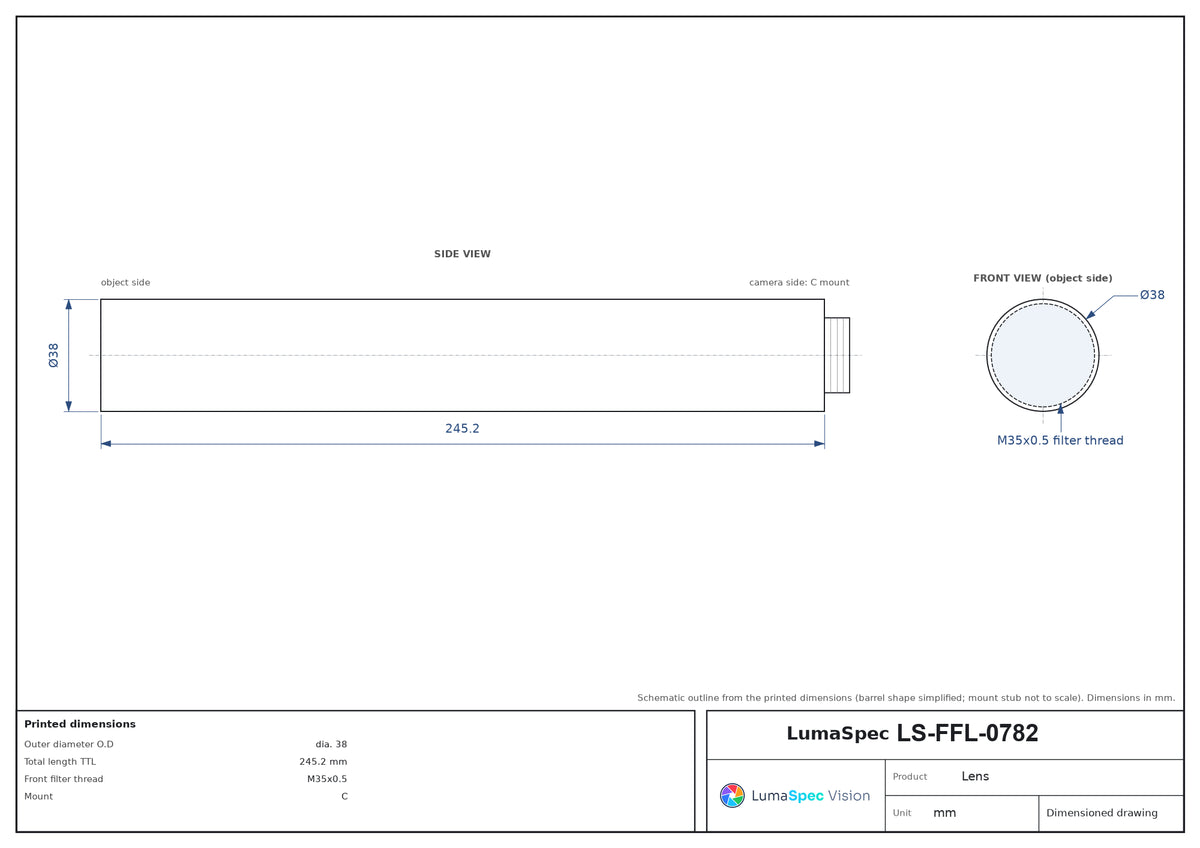

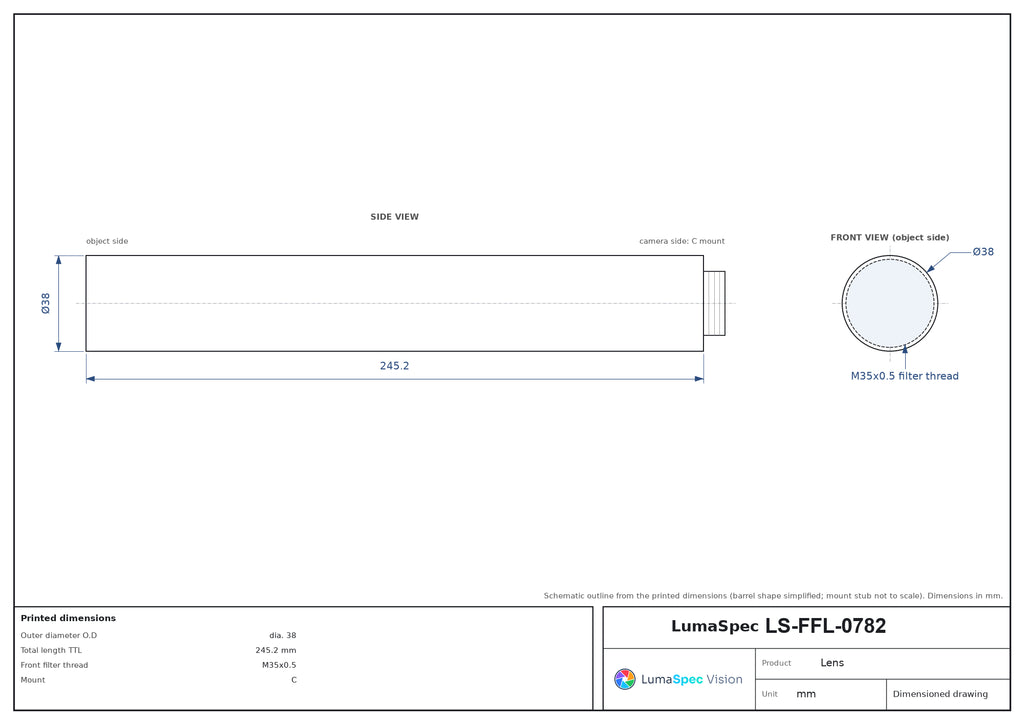

| Total length TTL (mm) | 245.2 |
| Front filter thread | M35x0.5 |
Sensor and imaging
| Max sensor size (dia. mm) | 18(1.1") |
|---|
Mechanical
| Outer diameter O.D (mm) | dia. 38 |
|---|---|
| Mount | C |
| Shipping weight (estimated) | 0.52 kg |
Photo shows a representative model of this series; see the specifications for this model.
