Machine vision lenses
1", C-mount Machine Vision Lens, 0.16x, WD 696 mm (LS-FFL-0753)
Model LS-FFL-0753
- Magnification0.16x
- MountC-mount
- Sensor1"
- Working distance696 mm
- Aperture5
$309.00
Ships in 2-3 weeks
0.52 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1", C-mount Machine Vision Lens. At a glance: magnification 0.16x; working distance 696 mm; max sensor size 16 mm (1"); object-side resolution 21 µm; image-side f/# 5.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0753 |
|---|
Optics
| Magnification (x) | 0.16 |
|---|---|
| Working distance (mm) | 696 |
| Image-side F/# | 5 |
| Object-side telecentricity (deg max) | Non-telecentric |
| Image-side distortion (% max) | 0.04 |
| Numerical aperture NA | 0.016 |
| Object-side resolution (um) | 21 |
| Theoretical depth of field (mm) | 15.6 |
| Image-side MTF30 (lp/mm) | 172 |
| Total length TTL (mm) | 109.5 |
| Front filter thread | M32x0.5 |
Sensor and imaging
| Max sensor size (dia. mm) | 16(1") |
|---|

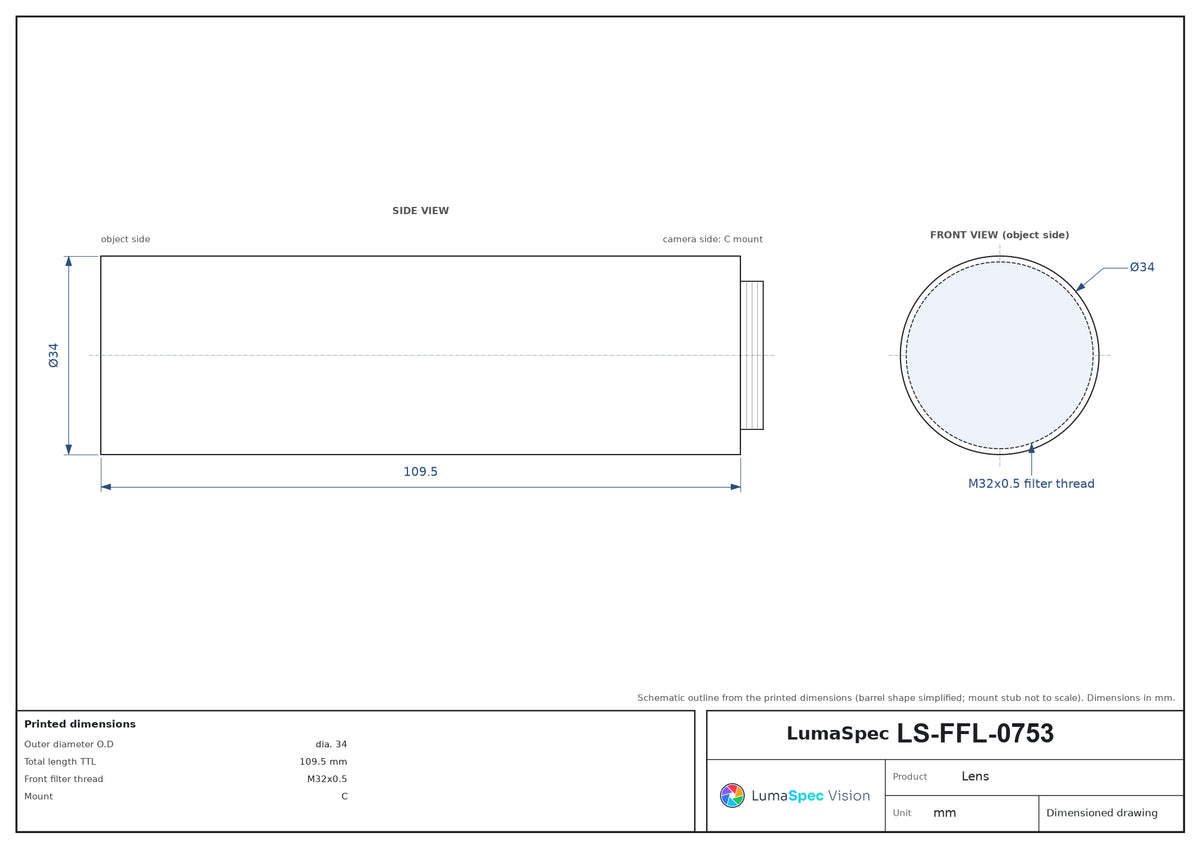

Mechanical
| Outer diameter O.D (mm) | dia. 34 |
|---|---|
| Mount | C |
| Shipping weight (estimated) | 0.52 kg |
Photo shows a representative model of this series; see the specifications for this model.
