1" Machine Vision Lens, 0.29x (LS-FFL-0766)
Model LS-FFL-0766
- Magnification0.29x
- MountC-mount
- Sensor1"
- Working distance225 mm
- Aperture9.5
$309.00
Ships in 2-3 weeks
0.52 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1" Machine Vision Lens. At a glance: magnification 0.29x; working distance 225 mm; max sensor size 16 mm (1"); object-side resolution 22 µm; image-side f/# 9.5.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0766 |
|---|
Optics
| Magnification (x) | 0.29 |
|---|---|
| Working distance (mm) | 225 |
| Image-side F/# | 9.5 |
| Object-side telecentricity (deg max) | Non-telecentric |
| Image-side distortion (% max) | 0.01 |
| Numerical aperture NA | 0.01526 |
| Object-side resolution (um) | 22 |
| Theoretical depth of field (mm) | 9 |
| Image-side MTF30 (lp/mm) | 93 |
| Total length TTL (mm) | 82 |
| Front filter thread | M25x0.5 |
Sensor and imaging
| Max sensor size (dia. mm) | 16(1") |
|---|

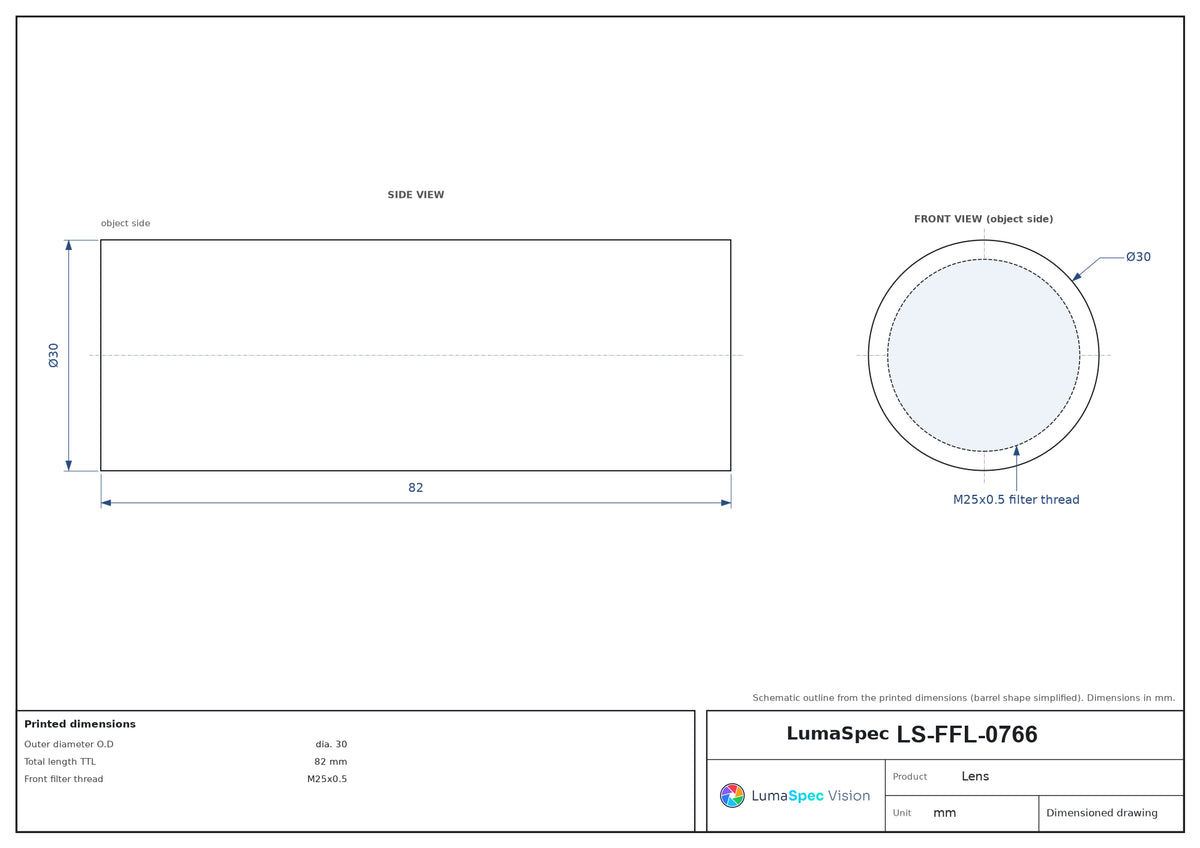

Mechanical
| Outer diameter O.D (mm) | dia. 30 |
|---|---|
| Shipping weight (estimated) | 0.52 kg |
| Mount (derived) | C-mount, as printed for all 286 other lenses of this series |
Photo shows a representative model of this series; see the specifications for this model.
