C-mount machine vision lenses

Choose the lens beyond its mount

Choose a C-mount lens for an industrial camera by sensor coverage, field of view and working distance. These catalog entries are explicitly classified as C-mount; CS-mount and other lens interfaces are separate choices.

All Machine vision lenses

1330 models Configure a systemAll lenses
C-mount machine vision lenses

865-888 of 1330 models

Products

Compare
LS-FFL-07791.1", C-mount machine vision lens, 0.4x, WD 320 mm 0.4xC-mount1.1"320 mmF12.4-$309.00 Ships in 2-3 weeks
LS-FFL-07871.1", C-mount machine vision lens, 0.47x, WD 400 mm 0.47xC-mount1.1"400 mmF12.7-$309.00 Ships in 2-3 weeks

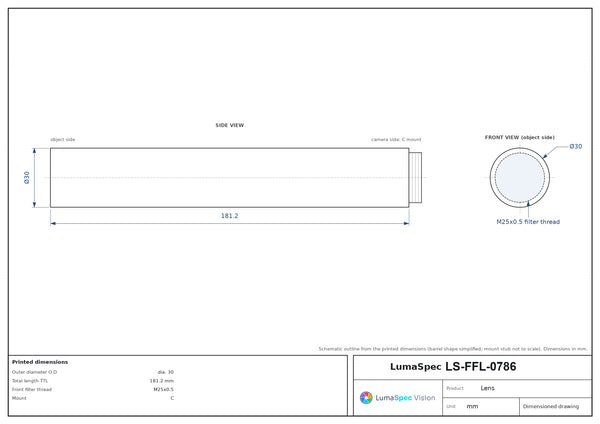

LS-FFL-07861.1", C-mount machine vision lens, 0.47x, WD 290 mm 0.47xC-mount1.1"290 mmF13.3-$309.00 Ships in 2-3 weeks
LS-FFL-07851.1", C-mount machine vision lens, 0.47x, WD 270 mm 0.47xC-mount1.1"270 mmF13.3-$309.00 Ships in 2-3 weeks
LS-FFL-07781.1", C-mount machine vision lens, 0.3x, WD 650 mm 0.3xC-mount1.1"650 mmF10.5-$309.00 Ships in 2-3 weeks

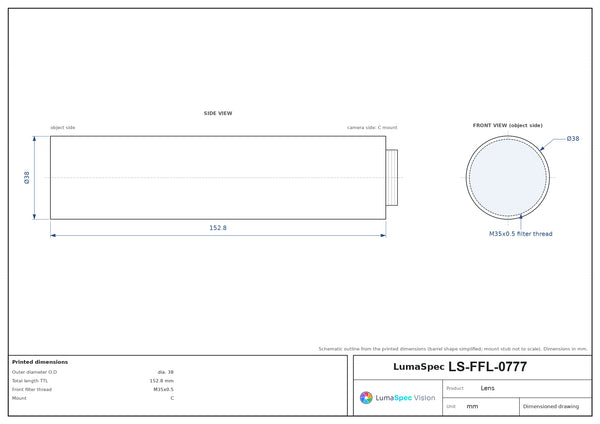

LS-FFL-07771.1", C-mount machine vision lens, 0.3x, WD 400 mm 0.3xC-mount1.1"400 mmF11.3-$309.00 Ships in 2-3 weeks
LS-FFL-07841.1", C-mount machine vision lens, 0.35x, WD 560 mm 0.35xC-mount1.1"560 mmF12.5-$309.00 Ships in 2-3 weeks
LS-FFL-07761.1", C-mount machine vision lens, 0.2x, WD 965 mm 0.2xC-mount1.1"965 mmF11-$309.00 Ships in 2-3 weeks

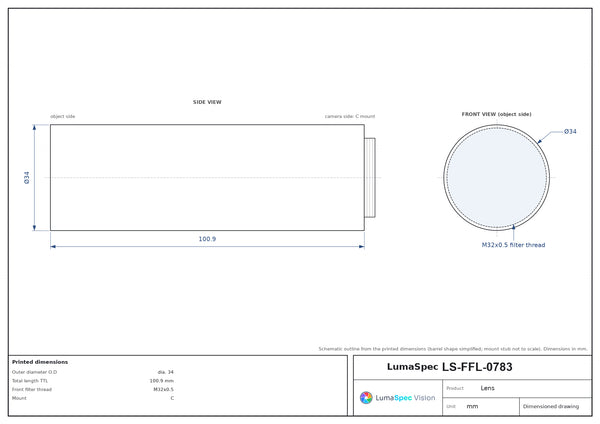

LS-FFL-07831.1", C-mount machine vision lens, 0.11x, WD 1030 mm 0.11xC-mount1.1"1030 mmF6-$309.00 Ships in 2-3 weeks

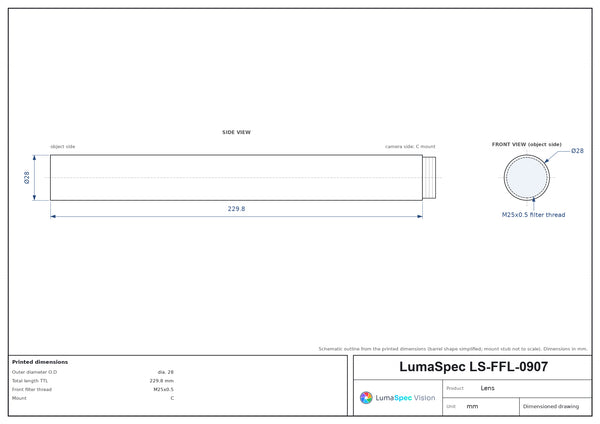

LS-FFL-09072/3", C-mount machine vision lens, 2x, WD 250 mm, length 229.8 mm, coaxial port 2xC-mount2/3"250 mmF29Yes$189.00 Ships in 2-3 weeks
LS-FFL-09062/3", C-mount machine vision lens, 2x, WD 250 mm, length 229.8 mm 2xC-mount2/3"250 mmF29No$189.00 Ships in 2-3 weeks
LS-FFL-09012/3", C-mount machine vision lens, 1x, WD 330 mm, length 203.1 mm 1xC-mount2/3"330 mmF15.6-$189.00 Ships in 2-3 weeks

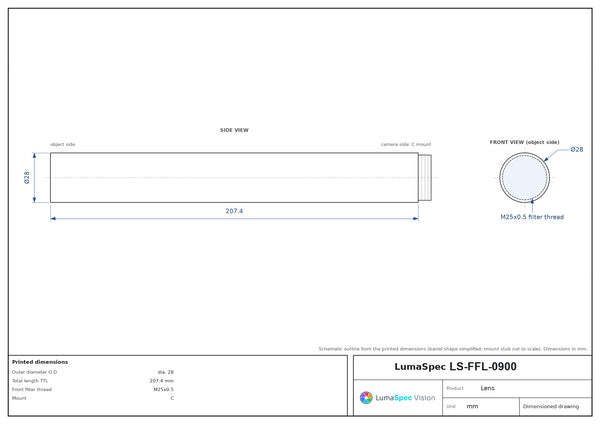

LS-FFL-09002/3", C-mount machine vision lens, 1x, WD 330 mm, length 207.4 mm 1xC-mount2/3"330 mmF15.6-$189.00 Ships in 2-3 weeks
LS-FFL-08982/3", C-mount machine vision lens, 1x, WD 238 mm, length 125 mm 1xC-mount2/3"238 mmF23.8-$189.00 Ships in 2-3 weeks
LS-FFL-08972/3", C-mount machine vision lens, 1x, WD 200 mm, length 174.1 mm 1xC-mount2/3"200 mmF24.8-$189.00 Ships in 2-3 weeks

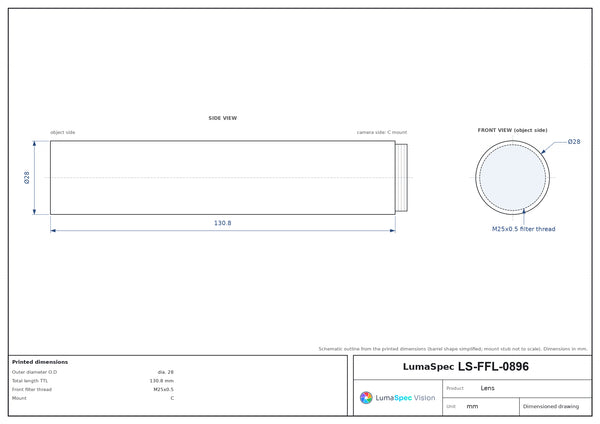

LS-FFL-08962/3", C-mount machine vision lens, 1x, WD 155 mm, length 130.8 mm 1xC-mount2/3"155 mmF18-$189.00 Ships in 2-3 weeks
LS-FFL-08952/3", C-mount machine vision lens, 1x, WD 150 mm, length 143.2 mm 1xC-mount2/3"150 mmF15-$189.00 Ships in 2-3 weeks
LS-FFL-09672/3", C-mount machine vision lens, 0.8x, WD 650 mm, length 186.3 mm 0.8xC-mount2/3"650 mmF32.2-$189.00 Ships in 2-3 weeks

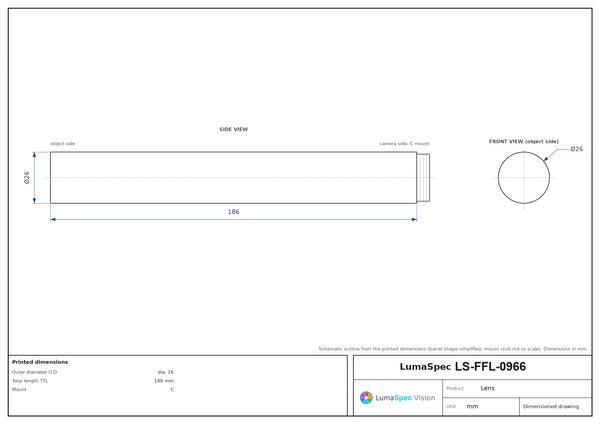

LS-FFL-09662/3", C-mount machine vision lens, 0.8x, WD 470 mm, length 186 mm 0.8xC-mount2/3"470 mmF31.3-$189.00 Ships in 2-3 weeks
LS-FFL-09652/3", C-mount machine vision lens, 0.8x, WD 350 mm, length 189.1 mm 0.8xC-mount2/3"350 mmF15.5-$189.00 Ships in 2-3 weeks
LS-FFL-09642/3", C-mount machine vision lens, 0.8x, WD 300 mm, length 184 mm 0.8xC-mount2/3"300 mmF24-$189.00 Ships in 2-3 weeks

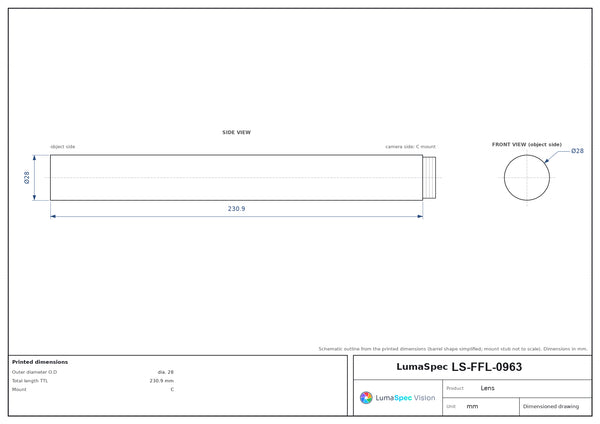

LS-FFL-09632/3", C-mount machine vision lens, 0.8x, WD 250 mm, length 230.9 mm 0.8xC-mount2/3"250 mmF20-$189.00 Ships in 2-3 weeks
LS-FFL-09622/3", C-mount machine vision lens, 0.8x, WD 250 mm, length 233.8 mm 0.8xC-mount2/3"250 mmF13.9-$189.00 Ships in 2-3 weeks
LS-FFL-09612/3", C-mount machine vision lens, 0.8x, WD 230 mm, length 243.6 mm 0.8xC-mount2/3"230 mmF14.7-$189.00 Ships in 2-3 weeks

Choose the lens beyond its mount

A matching thread is the start of a lens selection. The lens must also cover the sensor and form the required field at the available working distance. Use the individual specifications to compare focal length, image circle and focus range before choosing a model.

  • Match the camera mount and flange arrangement. A CS-mount camera is a different mechanical case; confirm the adapter or spacer arrangement rather than treating the two mounts as interchangeable.
  • Compare the sensor diagonal with the rated image circle. A lens may attach correctly and still vignette the corners of a larger sensor.
  • Set the field of view and working distance first, then check focal length, aperture, resolution and the clearance needed for connectors and mounting.
