C-mount machine vision lenses

Choose the lens beyond its mount

Choose a C-mount lens for an industrial camera by sensor coverage, field of view and working distance. These catalog entries are explicitly classified as C-mount; CS-mount and other lens interfaces are separate choices.

All Machine vision lenses

1330 models Configure a systemAll lenses
C-mount machine vision lenses

889-912 of 1330 models

Products

Compare
LS-FFL-09602/3", C-mount machine vision lens, 0.8x, WD 225 mm, length 174.5 mm 0.8xC-mount2/3"225 mmF16.5$189.00 Ships in 2-3 weeks
LS-FFL-09592/3", C-mount machine vision lens, 0.8x, WD 150 mm, length 73.7 mm 0.8xC-mount2/3"150 mmF22.3$189.00 Ships in 2-3 weeks
LS-FFL-09582/3", C-mount machine vision lens, 0.7x, WD 460 mm, length 178.1 mm 0.7xC-mount2/3"460 mmF24.5$189.00 Ships in 2-3 weeks
LS-FFL-09572/3", C-mount machine vision lens, 0.7x, WD 270 mm, length 83.8 mm 0.7xC-mount2/3"270 mmF28.2$189.00 Ships in 2-3 weeks

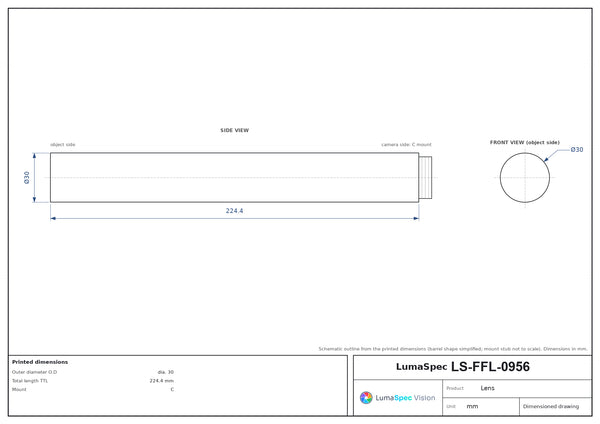

LS-FFL-09562/3", C-mount machine vision lens, 0.7x, WD 250 mm, length 224.4 mm, F10.6 0.7xC-mount2/3"250 mmF10.6$189.00 Ships in 2-3 weeks
LS-FFL-09552/3", C-mount machine vision lens, 0.7x, WD 250 mm, length 224.4 mm, F12 0.7xC-mount2/3"250 mmF12$189.00 Ships in 2-3 weeks

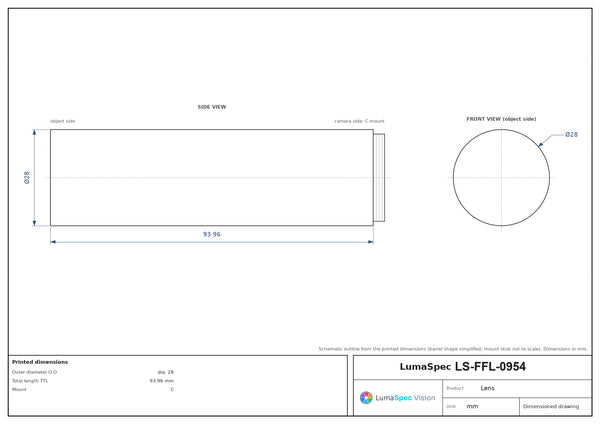

LS-FFL-09542/3", C-mount machine vision lens, 0.7x, WD 200 mm, length 93.96 mm 0.7xC-mount2/3"200 mmF17.4$189.00 Ships in 2-3 weeks
LS-FFL-09532/3", C-mount machine vision lens, 0.7x, WD 100 mm, length 145.08 mm 0.7xC-mount2/3"100 mmF18.2$189.00 Ships in 2-3 weeks

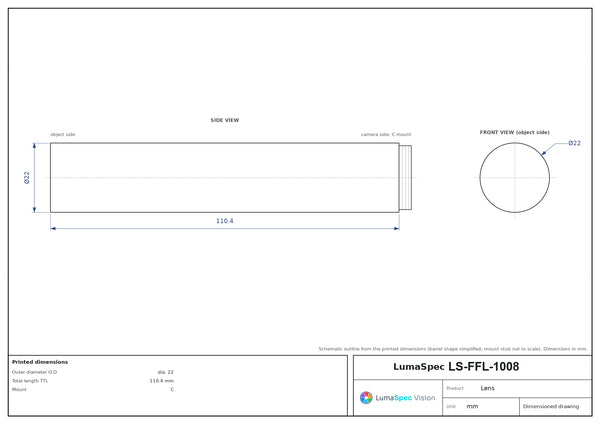

LS-FFL-10082/3", C-mount machine vision lens, 0.75x, WD 220 mm, length 110.4 mm 0.75xC-mount2/3"220 mmF15.2$189.00 Ships in 2-3 weeks
LS-FFL-09522/3", C-mount machine vision lens, 0.6x, WD 600 mm, length 177.2 mm 0.6xC-mount2/3"600 mmF27.7$189.00 Ships in 2-3 weeks
LS-FFL-09512/3", C-mount machine vision lens, 0.6x, WD 510 mm, length 170.4 mm 0.6xC-mount2/3"510 mmF23.5$189.00 Ships in 2-3 weeks

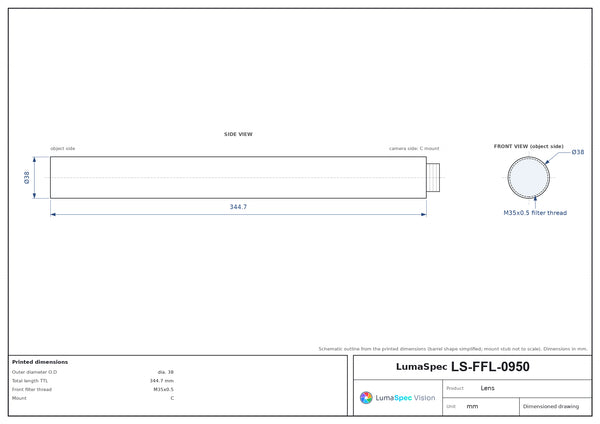

LS-FFL-09502/3", C-mount machine vision lens, 0.6x, WD 450 mm, length 344.7 mm 0.6xC-mount2/3"450 mmF15$189.00 Ships in 2-3 weeks
LS-FFL-09492/3", C-mount machine vision lens, 0.6x, WD 450 mm, length 169.9 mm 0.6xC-mount2/3"450 mmF20.8$189.00 Ships in 2-3 weeks

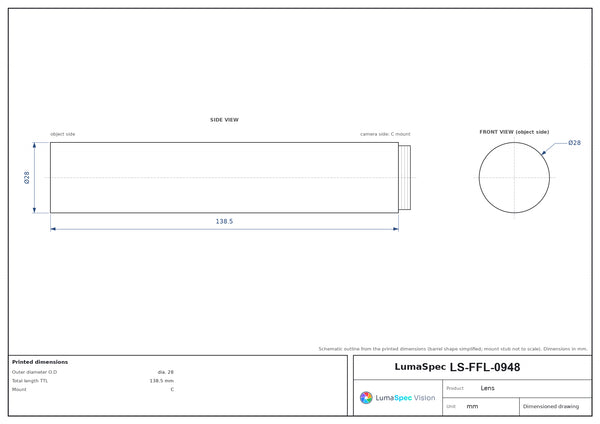

LS-FFL-09482/3", C-mount machine vision lens, 0.6x, WD 300 mm, length 138.5 mm 0.6xC-mount2/3"300 mmF19.9$189.00 Ships in 2-3 weeks
LS-FFL-09472/3", C-mount machine vision lens, 0.6x, WD 300 mm, length 197.1 mm 0.6xC-mount2/3"300 mmF19.9$189.00 Ships in 2-3 weeks

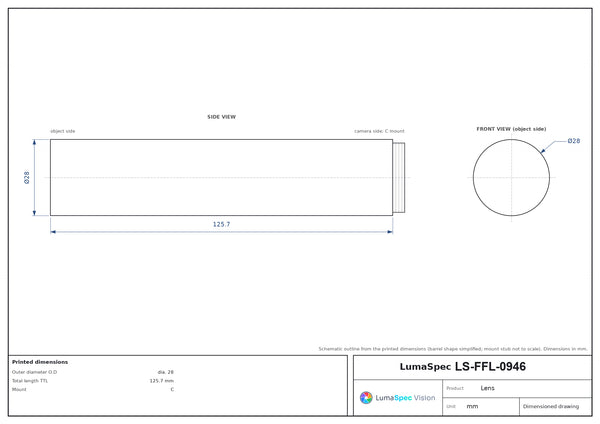

LS-FFL-09462/3", C-mount machine vision lens, 0.6x, WD 125 mm, length 125.7 mm 0.6xC-mount2/3"125 mmF15$189.00 Ships in 2-3 weeks
LS-FFL-09452/3", C-mount machine vision lens, 0.6x, WD 100 mm, length 149.65 mm 0.6xC-mount2/3"100 mmF12.5$189.00 Ships in 2-3 weeks

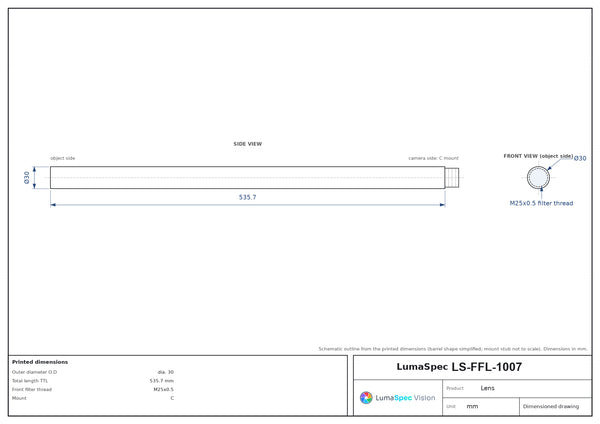

LS-FFL-10072/3", C-mount machine vision lens, 0.67x, WD 600 mm, length 535.7 mm 0.67xC-mount2/3"600 mmF20$189.00 Ships in 2-3 weeks
LS-FFL-09442/3", C-mount machine vision lens, 0.5x, WD 750 mm, length 162.1 mm 0.5xC-mount2/3"750 mmF21.7$189.00 Ships in 2-3 weeks

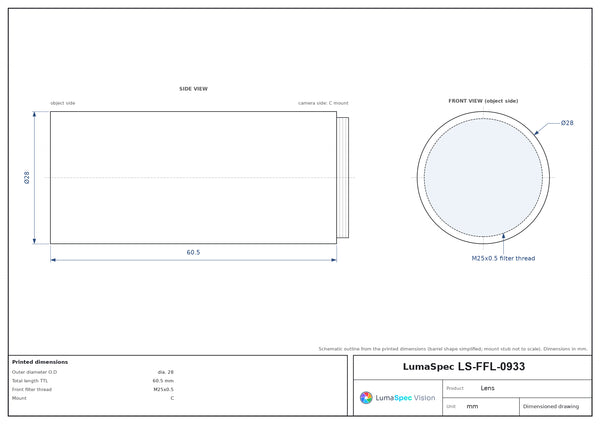

LS-FFL-09332/3", C-mount machine vision lens, 0.5x, WD 65 mm, length 60.5 mm 0.5xC-mount2/3"65 mmF13.1$189.00 Ships in 2-3 weeks
LS-FFL-09422/3", C-mount machine vision lens, 0.5x, WD 500 mm, length 163.9 mm 0.5xC-mount2/3"500 mmF18$189.00 Ships in 2-3 weeks
LS-FFL-09412/3", C-mount machine vision lens, 0.5x, WD 430 mm, length 287.9 mm 0.5xC-mount2/3"430 mmF15.2$189.00 Ships in 2-3 weeks
LS-FFL-09402/3", C-mount machine vision lens, 0.5x, WD 390 mm, length 227.8 mm 0.5xC-mount2/3"390 mmF13.7$189.00 Ships in 2-3 weeks
LS-FFL-09392/3", C-mount machine vision lens, 0.5x, WD 390 mm, length 146.5 mm 0.5xC-mount2/3"390 mmF18.1$189.00 Ships in 2-3 weeks

Choose the lens beyond its mount

A matching thread is the start of a lens selection. The lens must also cover the sensor and form the required field at the available working distance. Use the individual specifications to compare focal length, image circle and focus range before choosing a model.

  • Match the camera mount and flange arrangement. A CS-mount camera is a different mechanical case; confirm the adapter or spacer arrangement rather than treating the two mounts as interchangeable.
  • Compare the sensor diagonal with the rated image circle. A lens may attach correctly and still vignette the corners of a larger sensor.
  • Set the field of view and working distance first, then check focal length, aperture, resolution and the clearance needed for connectors and mounting.
