Machine vision lenses
2/3", C-mount Machine Vision Lens, 0.6x, WD 450 mm, length 169.9 mm (LS-FFL-0949)
Model LS-FFL-0949
- Magnification0.6x
- MountC-mount
- Sensor2/3"
- Working distance450 mm
- Aperture20.8
$189.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
2/3", C-mount Machine Vision Lens. At a glance: magnification 0.6x; working distance 450 mm; max sensor size 11 mm (2/3"); object-side resolution 23.3797909407666 µm; image-side f/# 20.8.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0949 |
|---|
Optics
| Magnification (x) | 0.6 |
|---|---|
| Working distance (mm) | 450 |
| Image-side F/# | 20.8 |
| Object-side telecentricity (deg max) | Non-telecentric |
| Image-side distortion (% max) | 0.6 |
| Numerical aperture NA | 0.01435 |
| Object-side resolution (um) | 23.3797909407666 |
| Theoretical depth of field (mm) | 4.62222222222222 |
| Image-side MTF30 (lp/mm) | 46 |

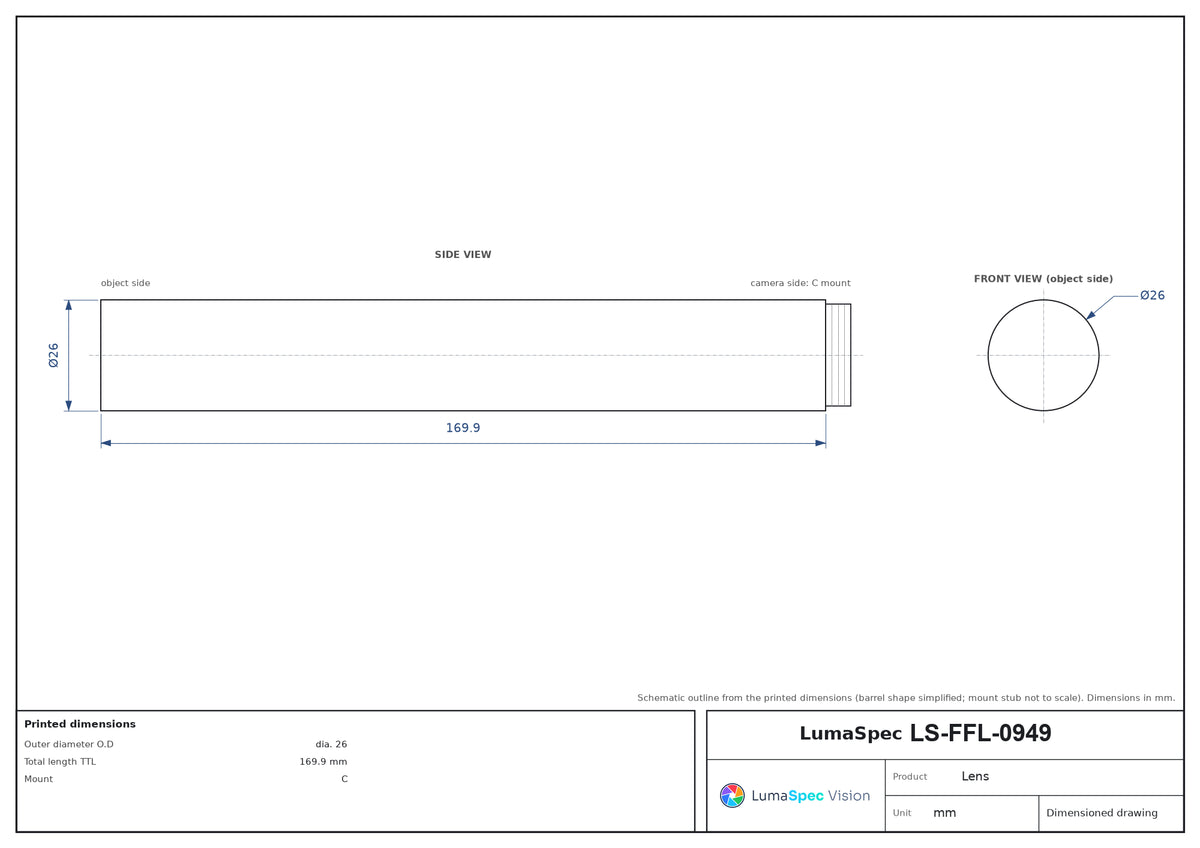

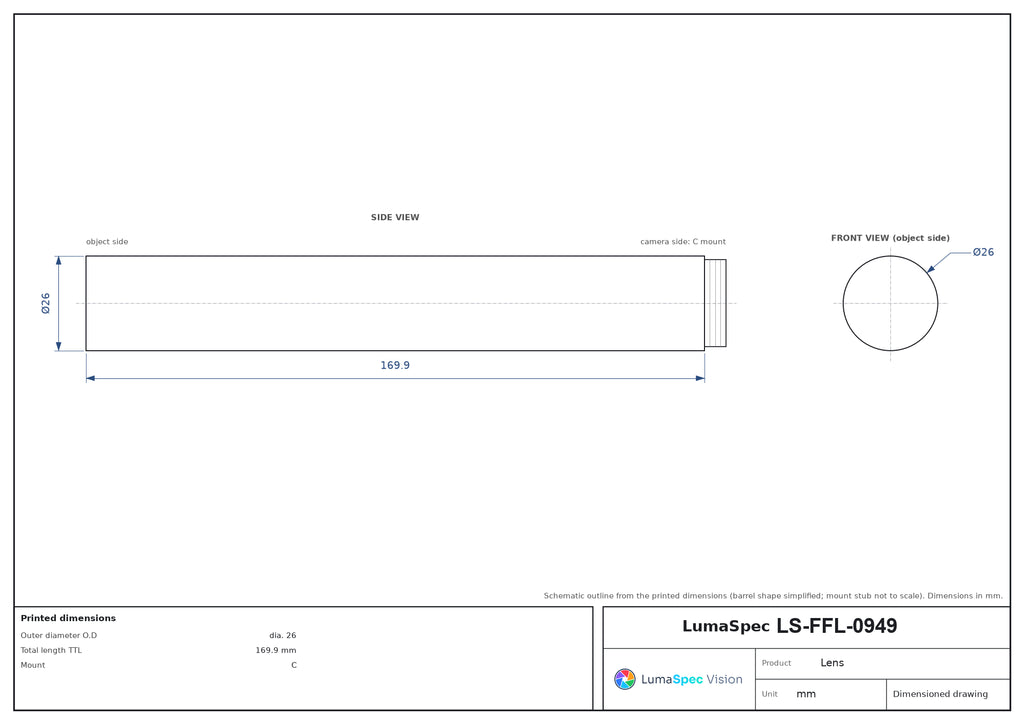

| Total length TTL (mm) | 169.9 |
| Front filter thread | M25x0.5 after removing the front lens retaining ring |
| Measured depth of field as shipped (mm) | 0.4 |
Sensor and imaging
| Max sensor size (dia. mm) | 11(2/3") |
|---|
Mechanical
| Outer diameter O.D (mm) | dia. 26 |
|---|---|
| Mount | C |
| Shipping weight (estimated) | 0.31 kg |
Photo shows a representative model of this series; see the specifications for this model.
