Lenses

C-mount machine vision lenses

Choose the lens beyond its mount

Choose a C-mount lens for an industrial camera by sensor coverage, field of view and working distance. These catalog entries are explicitly classified as C-mount; CS-mount and other lens interfaces are separate choices.

All Machine vision lenses

1330 models Configure a systemAll lenses
C-mount machine vision lenses

457-480 of 1330 models

Products

Compare
LS-FFL-1554FA lens, 8 mm, 1.1", C-mount f=8 mmC-mount1.1"F=1:1.4~16--$379.00 Ships in 2-3 weeks
LS-FFL-1553FA lens, 6 mm, 1.1", C-mount f=6 mmC-mount1.1"F=1:1.8~16--$289.00 Ships in 2-3 weeks
LS-FFL-06414 mm, 2/3" machine vision lens 4 mmC-mount2/3"-F2.8-$229.00Quote Ships in 2-3 weeks
LS-FFL-1149FA fixed focal lens, 75 mm, 1", C-Mounts 75 mmC-mount1"-F2.8-F1610Mega Pixel$549.00 Ships in 2-3 weeks
LS-FFL-1146FA fixed focal lens, 6 mm, 1/1.7" 6 mmC-mount1/1.7"-1:2.4-1612 MP$299.00 Ships in 2-3 weeks

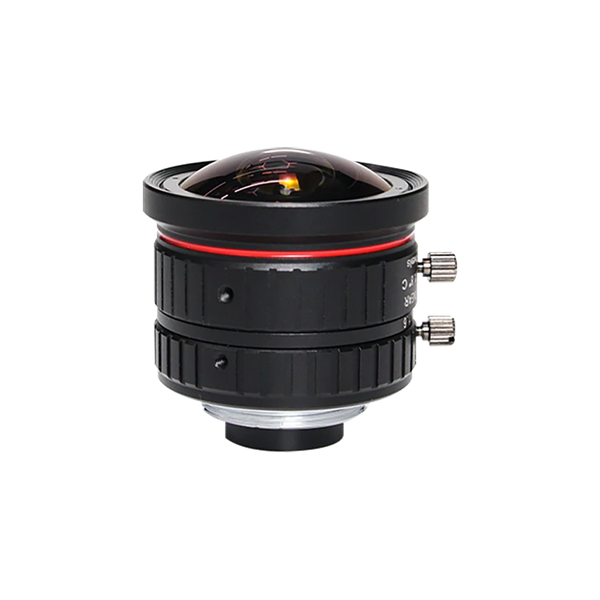

LS-FFL-1145FA fixed focal lens, 2.8 mm, 1/1.8", C-Mounts 2.8 mmC-mount1/1.8"-F1.6-1610 MP$299.00 Ships in 2-3 weeks
LS-FFL-1148FA fixed focal lens, 35 mm, 1/1.8" 35 mmC-mount1/1.8"-1:2.4-165 MP$229.00 Ships in 2-3 weeks
LS-FFL-1147FA fixed focal lens, 12 mm, 1/1.8" 12 mmC-mount1/1.8"-1:2.4-165 MP$179.00 Ships in 2-3 weeks

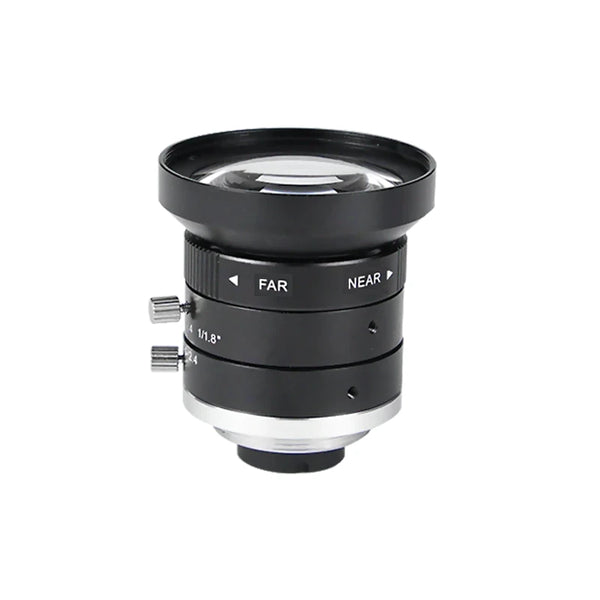

LS-FFL-1142FA fixed focal lens, 3.5 mm, C-mount 3.5 mmC-mount1/1.8"-F2.4 to closed2 MP$159.00 Ships in 2-3 weeks
LS-FFL-1144FA fixed focal lens, 6 mm, 2/3", C/CS-mount 6 mmC-mount2/3"-F1.4-165 MP$239.00 Ships in 2-3 weeks
LS-FFL-1143FA fixed focal lens, 3.5 mm, 2/3", C-mount 3.5 mmC-mount2/3"-F1.4-165 MP$159.00 Ships in 2-3 weeks
LS-FFL-0503Industrial lens, 1" 5 MP FA lens, 75 mm, C-mount 75 mmC-mount1"-F1.85 MP$429.00 Ships in 2-3 weeks
LS-FFL-0502Industrial lens, 1" 5 MP FA lens, 50 mm, C-mount 50 mmC-mount1"-F1.45 MP$369.00 Ships in 2-3 weeks
LS-FFL-0501Industrial lens, 1" 5 MP FA lens, 35 mm, C-mount 35 mmC-mount1"-F1.45 MP$449.00 Ships in 2-3 weeks
LS-FFL-0500Industrial lens, 1" 5 MP FA lens, 25 mm, C-mount 25 mmC-mount1"-F1.45 MP$459.00 Ships in 2-3 weeks
LS-FFL-0499Industrial lens, 1" 5 MP FA lens, 16 mm, C-mount 16 mmC-mount1"-F1.45 MP$309.00 Ships in 2-3 weeks
LS-FFL-0498Industrial lens, 1" 5 MP FA lens, 12.5 mm, C-mount 12.5 mmC-mount1"-F1.45 MP$299.00 Ships in 2-3 weeks
LS-FFL-0497Industrial lens, 2/3" 10 MP FA lens, 50 mm, C-mount 50 mmC-mount2/3"-F2.810 MP$389.00 Ships in 2-3 weeks
LS-FFL-0496Industrial lens, 2/3" 10 MP FA lens, 35 mm, C-mount 35 mmC-mount2/3"-F2.810 MP$449.00 Ships in 2-3 weeks
LS-FFL-0495Industrial lens, 2/3" 10 MP FA lens, 25 mm, C-mount 25 mmC-mount2/3"-F2.810 MP$489.00 Ships in 2-3 weeks
LS-FFL-0494Industrial lens, 2/3" 10 MP FA lens, 16 mm, C-mount 16 mmC-mount2/3"-F2.810 MP$319.00 Ships in 2-3 weeks
LS-FFL-0493Industrial lens, 2/3" 10 MP FA lens, 12 mm, C-mount 12 mmC-mount2/3"-F2.810 MP$309.00 Ships in 2-3 weeks
LS-FFL-0492Industrial lens, 2/3" 10 MP FA lens, 8 mm, C-mount 8 mmC-mount2/3"-F2.810 MP$309.00 Ships in 2-3 weeks
LS-FFL-04311/1.8" anti-vibration machine vision lens -C-mount1/1.8"---$249.00Quote Ships in 2-3 weeks

Choose the lens beyond its mount

A matching thread is the start of a lens selection. The lens must also cover the sensor and form the required field at the available working distance. Use the individual specifications to compare focal length, image circle and focus range before choosing a model.

  • Match the camera mount and flange arrangement. A CS-mount camera is a different mechanical case; confirm the adapter or spacer arrangement rather than treating the two mounts as interchangeable.
  • Compare the sensor diagonal with the rated image circle. A lens may attach correctly and still vignette the corners of a larger sensor.
  • Set the field of view and working distance first, then check focal length, aperture, resolution and the clearance needed for connectors and mounting.

Configure a system · Browse all Machine vision lenses
