Machine vision lenses

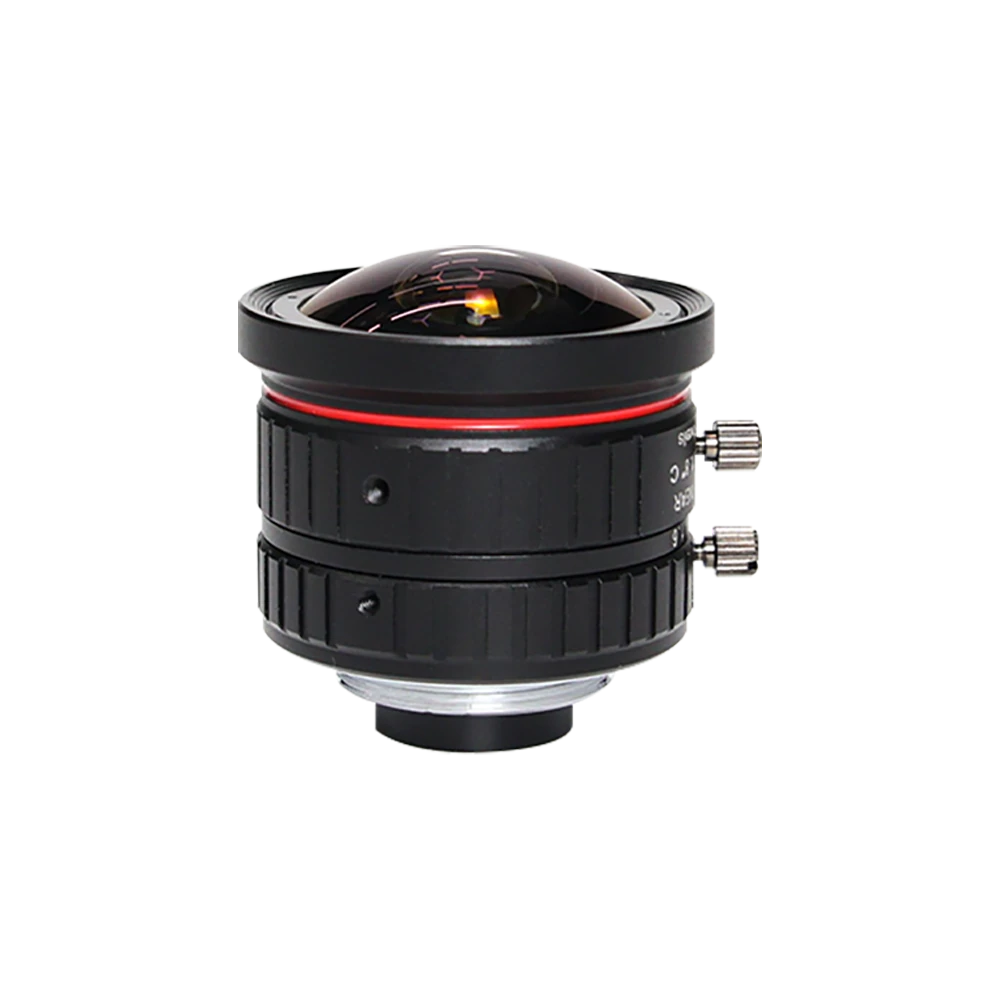

FA fixed focal lens, 2.8 mm, 1/1.8", C-Mounts (LS-FFL-1145)
Model LS-FFL-1145
- Focal length2.8mm
- MountC-mount
- Sensor1/1.8"
- ApertureF1.6-F16
- Resolution10
- Field of view172°x160°x108° ( 1/4" 90°x83.7°x56.5°)
$299.00
Ships in 2-3 weeks
0.25 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
The industrial lens 5MP, suitable for 2MP, 3MP, 5MP industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1145 |
|---|---|
| Model No | LS-FFL-1145 |
| Format | 1/1.8" (dia. 9) |
| D/fˊ | F1.6-F16 |
| D/H/V 1/1.8" | 172°x160°x108° ( 1/4" 90°x83.7°x56.5°) |
| Structure | Aluminium alloy (Anode black) (Connector zinc alloy) +10G |
Optics
| Focal length | 2.8mm |
|---|---|
| Back focal length | 17.53mm |
| Iris Type | W/Lock |
| MTF | 10Mega Pixel |
| M.O.D ( m ) | 0.05m |
| Distortion | -89% ( Table parameters is provided) |
| Aperture | F1.6-F16 |
| Field of view | 172°x160°x108° ( 1/4" 90°x83.7°x56.5°) |
Sensor and imaging
| Sensor format | 1/1.8" (dia. 9) |
|---|---|
| Resolution (MP) | 10 |

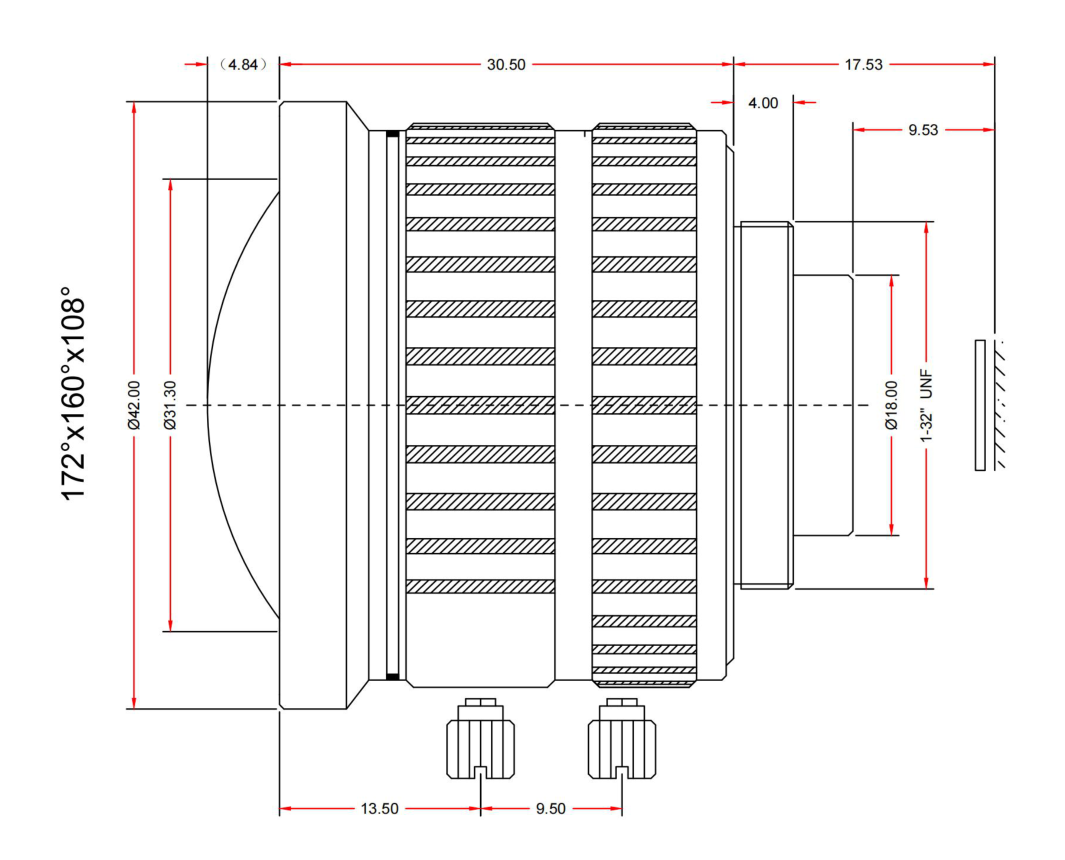

Mechanical
| Mount | C-Mounts |
|---|---|
| Optical length | 52.87mm |
| Dimension | dia. 42.00x30.50 |
| Weight (g) | 110.7g |
