Machine vision lenses

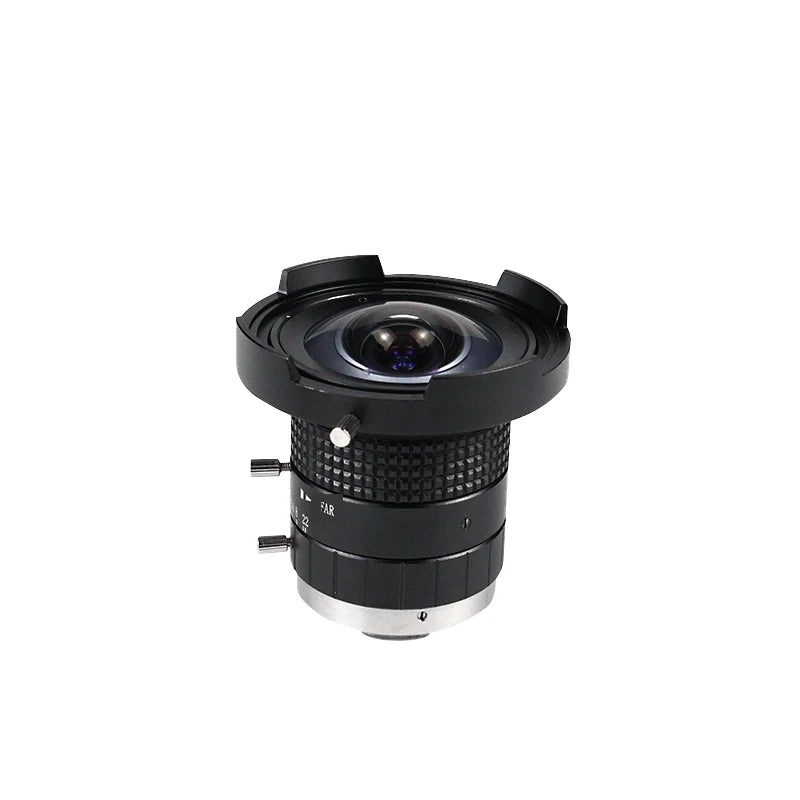

FA fixed focal lens, 3.5 mm, 2/3", C-mount (LS-FFL-1143)
Model LS-FFL-1143
- Focal length3.5mm
- MountC-mount
- Sensor2/3"
- ApertureF1.4-16
- Resolution5 MP
- Field of view185°*185°
$159.00
Ships in 2-3 weeks
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
The industrial lens 5MP, suitable for 2MP, 3MP, 5MP industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1143 |
|---|---|
| F/NO | F1.4-16 |
| Type | C-Fisheye lens |
| Image format | 2/3” |
| EFL | 3. 5mm |
| F/NO. | 1. 4mm |
| FFL(M) | 12. 4mm |
| BFL(0) | 17.53mm |
| F.O.V(H*V) 2/3” | 185°*185° |
| F.O.V(H*V) 1/2” | 185°*154.1° |
| F.O.V(H*V) 1/3” | 154.1°*115.4° |
| Relative I11. | >80% |
| Chief ray angle | <20° |
| Lens structure | All Glass |
| IR-Filter | Non IR |
| Zoom operation | Fixed |
Optics
| Image size | 2/3" |
|---|---|
| Focal length | 3.5mm |
| Image circle | dia. 11.2mm(MAX) |
| TTL | 72.7mm |
| TV distortion | <-37% |
| M.O.D | 0.1m~∞ |
| Iris 0peration | Manual |
| Focus operation | Manual |
| Aperture | F1.4-16 |
| Field of view | 185°*185° |
Sensor and imaging
| Pixel | 5MP |
|---|---|
| Resolution | 5 MP |
| Sensor format | 2/3" |
Environment and compliance
| Operating temperature | -20°~+85° |
|---|---|
| Storage temperature | -20°~+85° |
Mechanical
| Mount Type | C |
|---|---|
| Dimension Figure | dia. 59.0*L60.3mm |
| Weight | 200g |
