Representative photo of this series
Machine vision lenses

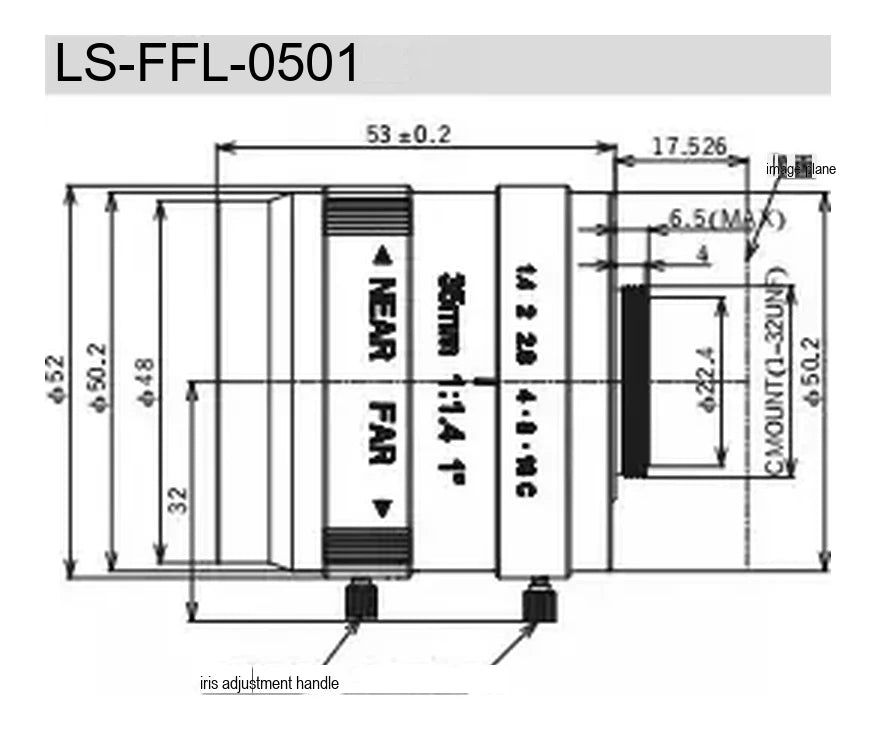

Industrial lens, 1" 5MP FA lens, 35 mm, C-mount (LS-FFL-0501)
Model LS-FFL-0501
- Focal length35 mm
- MountC-mount
- Sensor1"
- Aperture1.4
- Resolution5
- Field of view69.90 x 52.39
$449.00
Ships in 2-3 weeks
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Industrial lens, 1" 5MP FA lens with mount C Mount, max image surface size 1", focal length 35, aperture 1.4, fov @ wd 200 69.90 x 52.39.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0501 |
|---|---|
| Min distance | 0.15M |
Optics
| Focal length (mm) | 35 |
|---|---|
| Aperture | 1.4 |
| TV distortion | <0.1% |
| Filter thread | M46 x P0.75 |
| Field of view | 69.90 x 52.39 |
Sensor and imaging
| FOV @ WD 200 (H x V), 1" sensor | 69.90 x 52.39 |
|---|---|
| FOV @ WD 200 (H x V), 2/3" sensor | 46.23 x 39.08 |
| FOV @ WD 200 (H x V), 1/2" sensor | 35.22 x 26.42 |
| Sensor format | 1" |
| Resolution (MP) | 5 |
Interfaces and I/O
| Interface | C Mount |
|---|
Mechanical
| Mount | C Mount |
|---|---|
| Max image surface size | 1" |
| Shipping weight | 0.38 kg |
Other models in the Industrial lens, 1" 5MP FA lens (LS-FFL-S81) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0498 | 12.5 mm, 1", C-mount | $299.00 | Ships in 2-3 weeks | View |
| LS-FFL-0499 | 16 mm, 1", C-mount | $309.00 | Ships in 2-3 weeks | View |
| LS-FFL-0502 | 50 mm, 1", C-mount | $369.00 | Ships in 2-3 weeks | View |
| LS-FFL-0503 | 75 mm, 1", C-mount | $429.00 | Ships in 2-3 weeks | View |
| LS-FFL-0500 | 25 mm, 1", C-mount | $459.00 | Ships in 2-3 weeks | View |
