Lenses

Bi-telecentric lenses

Choose a double-telecentric optical layout

Compare cataloged bi-telecentric, or double-telecentric, lenses for dimensional imaging. Narrow the choice by sensor coverage, magnification, working distance and the published optical tolerances.

All Telecentric lenses

1422 models Configure a systemAll lenses
Bi-telecentric lenses

385-408 of 1422 models

Products

Compare
LS-TCL-3013Bi-telecentric lens for 2/3" sensor, 0.18x, WD 110 mm 0.18xC-mount2/3"110 mmF6-$2,209.00 Ships in 2-3 weeks
LS-TCL-3005Bi-telecentric lens for 2/3" sensor, 0.4x, WD 110 mm 0.4xC-mount2/3"110 mmF7-$1,439.00 Ships in 2-3 weeks
LS-TCL-3008Bi-telecentric lens for 2/3" sensor, 0.7x, WD 110 mm 0.7xC-mount2/3"110 mmF10-$1,169.00 Ships in 2-3 weeks
LS-TCL-2974Bi-telecentric lens for 1.1" sensor, 0.5x, WD 65 mm 0.5xC-mount1.1"65 mmF625 million pixels$1,619.00 Ships in 2-3 weeks
LS-TCL-2984Bi-telecentric lens for 1.1" sensor, 0.6x, WD 190 mm 0.6xC-mount1.1"190 mmF8.0825 million pixels$1,479.00 Ships in 2-3 weeks

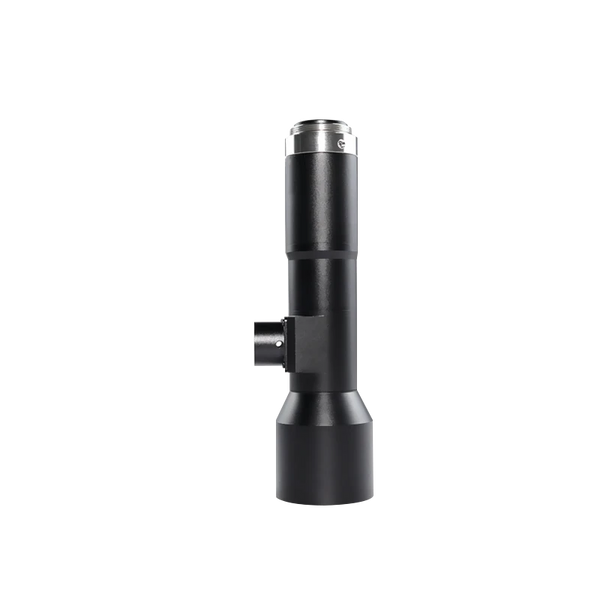

LS-TCL-2980Bi-telecentric lens for 1.1" sensor, 1.5x, WD 110 mm, C-mount 1.5xC-mount1.1"110 mmF1125 million pixels$1,549.00 Ships in 2-3 weeks
LS-TCL-2791Bi-telecentric lens for 39 mm cameras, 0.13x, WD 465 mm, F or Other-mount 0.130xF-mountAPS-H465±6 mm--$8,699.00Quote Ships in 2-3 weeks
LS-TCL-2789Bi-telecentric lens for 39 mm cameras, 0.205x, WD 330 mm, F or Other-mount 0.205xF-mountAPS-H330±5 mm--$5,379.00Quote Ships in 2-3 weeks
LS-TCL-2785Bi-telecentric lens for 39 mm cameras, 0.325x, WD 280 mm, F or Other-mount 0.325xF-mountAPS-H280±5 mm--$3,629.00 Ships in 2-3 weeks
LS-TCL-2783Bi-telecentric lens for 39 mm cameras, 0.393x, WD 238 mm, F-mount 0.393xF-mountAPS-H238±3 mm--$2,669.00 Ships in 2-3 weeks
LS-TCL-2781Bi-telecentric lens for 39 mm cameras, 0.434x, WD 208 mm, F-mount 0.433xF-mountAPS-H208±2 mm--$2,469.00 Ships in 2-3 weeks
LS-TCL-2780Bi-telecentric lens for 39 mm cameras, 0.488x, WD 230 mm, F-mount 0.488xF-mountAPS-H230±2 mm--$2,449.00 Ships in 2-3 weeks
LS-TCL-2774Bi-telecentric lens for 39 mm cameras, 0.813x, WD 138 mm, F or Other-mount 0.813xF-mountAPS-H138±3 mm--$1,949.00 Ships in 2-3 weeks
LS-TCL-2772Bi-telecentric lens for 39 mm cameras, 0.931x, WD 118 mm, F-mount 0.931xF-mountAPS-H118±2 mm--$1,949.00 Ships in 2-3 weeks
LS-TCL-2765Bi-telecentric lens, 0.1x, WD 410 mm, 4/3", C or F-mount 0.100xC-mount4/3"410±6 mm--$6,849.00Quote Ships in 2-3 weeks
LS-TCL-2768Bi-telecentric lens, 0.08x, WD 465 mm, 4/3", F or Other-mount 0.080xF-mount4/3"465±6 mm--$7,029.00Quote Ships in 2-3 weeks
LS-TCL-2767Bi-telecentric lens, 0.09x, WD 438 mm, 4/3", M58 or other-mount 0.090xM584/3"438±6 mm--$6,039.00Quote Ships in 2-3 weeks
LS-TCL-2766Bi-telecentric lens, 0.1x, WD 410 mm, 4/3", M58 or Other-mount 0.100xM584/3"410±6 mm--$5,379.00Quote Ships in 2-3 weeks

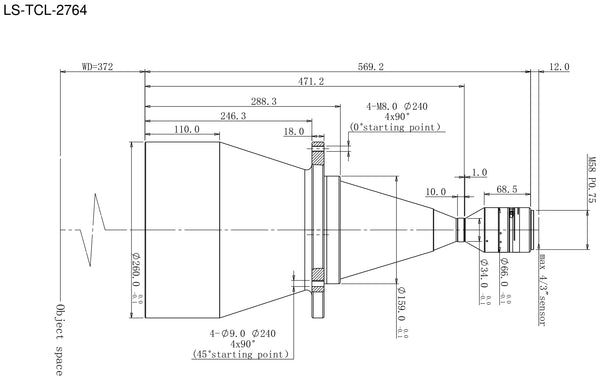

LS-TCL-2764Bi-telecentric lens, 0.111x, WD 372 mm, 4/3", M58 or other-mount 0.111xM584/3"372±5 mm--$5,159.00Quote Ships in 2-3 weeks
LS-TCL-2763Bi-telecentric lens, 0.126x, WD 330 mm, 4/3", F or Other-mount 0.126xF-mount4/3"330±5 mm--$4,329.00 Ships in 2-3 weeks
LS-TCL-2762Bi-telecentric lens, 0.141x, WD 318 mm, 4/3", M58 or other-mount 0.141xM584/3"318±5 mm--$3,889.00 Ships in 2-3 weeks
LS-TCL-2761Bi-telecentric lens, 0.16x, WD 300 mm, 4/3", F or Other-mount 0.160xF-mount4/3"300±5 mm--$3,519.00 Ships in 2-3 weeks
LS-TCL-2760Bi-telecentric lens, 0.177x, WD 288 mm, 4/3", M58 or other-mount 0.177xM584/3"288±5 mm--$3,179.00 Ships in 2-3 weeks
LS-TCL-2759Bi-telecentric lens, 0.2x, WD 280 mm, 4/3", F or Other-mount 0.200xF-mount4/3"280±5 mm--$2,969.00 Ships in 2-3 weeks

Choose a double-telecentric optical layout

Bi-telecentric optics are telecentric on both the object and image sides. The design class differs from object-side-only optics. Use the model data to establish the usable field and measurement conditions; the design label does not set one universal accuracy or depth-of-field value.

  • Match magnification and sensor dimensions to the required object field, then check the image-circle rating and mount for the actual camera.
  • Compare the published working distance, distortion and telecentricity for the intended object position and aperture. Keep model-specific values separate from general design principles.
  • Check the lens outline and illumination clearance before fixing the station geometry. A suitable sensor format alone does not establish mechanical fit or measurement capability.

Configure a system · Browse all Telecentric lenses
