Telecentric lenses

Bi-telecentric lens, 0.1x, WD 410 mm, 4/3", M58 or Other-mount (LS-TCL-2766)

Model LS-TCL-2766

Magnification0.100x
MountM58
Sensor4/3"
Working distance410±6
Field of view240

$5,379.00

Ships in 2-3 weeks

27.82 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

LS-TCL-S86 Series F-Mount high precision bi telecentric lenses are the typical choice for extremely accurate measurement of large items such as engine parts, glass or metal sheets, PCBs and electronic components, LCDs, etc.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-2766
FOV with 18.13x13.6 with KAI-08050 (mm x mm)	181.3x136.0
FOV with 18.48x13.73 with CMV8000 (mm x mm)	184.8x137.3

Optics

Magnification (x)	0.100
Object field of view (dia. mm)	240
Working distance (mm)	410±6
Best Aperture (F/#)	7.5
Telecentricity typical (max) (deg)	0.1
Distortion typical (max) (%)	0.1
MTF30 (lp/mm)	>115
Depth of field (mm)	±64@F16

Sensor and imaging

Max sensor size (dia. mm)	24(4/3")
Sensor format	4/3"

Interfaces and I/O

Length of I/O (mm)	1037±6

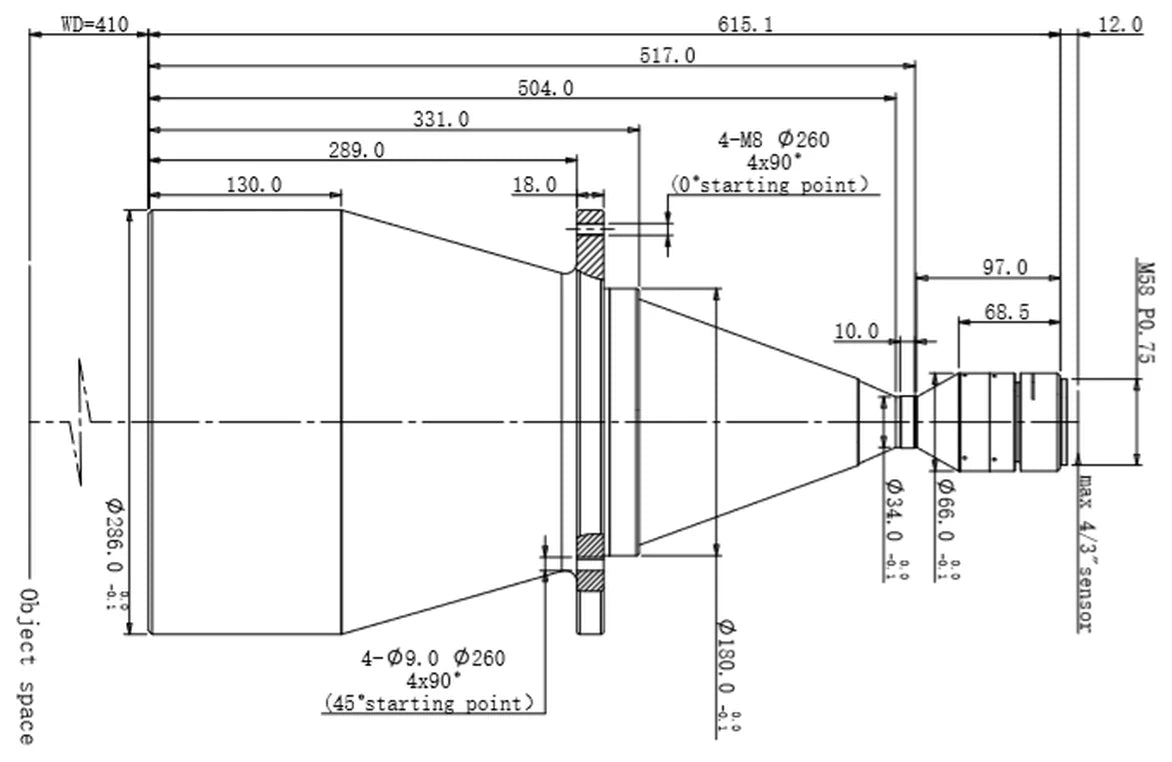

Mechanical

Mount	M58 or Other
Length (mm)	615.1
Weight (kg)	19.8

Other models in the Bi-telecentric lens (LS-TCL-S86) series

See all 24 models

Model	Size / key data	Price	Availability	Link
LS-TCL-2745	0.923x, WD 73 mm, 4/3", C or F-mount	$1,409.00	Ships in 2-3 weeks	View
LS-TCL-2746	0.67x, WD 110 mm, 4/3", F or Other-mount	$1,429.00	Ships in 2-3 weeks	View
LS-TCL-2747	0.571x, WD 118 mm, 4/3", F or Other-mount	$1,539.00	Ships in 2-3 weeks	View
LS-TCL-2748	0.5x, WD 128 mm, 4/3", F or Other-mount	$1,639.00	Ships in 2-3 weeks	View
LS-TCL-2750	0.429x, WD 138 mm, 4/3", F or Other-mount	$1,789.00	Ships in 2-3 weeks	View
LS-TCL-2749	0.5x, WD 138 mm, 4/3", C or F-mount	$1,909.00	Ships in 2-3 weeks	View
LS-TCL-2752	0.375x, WD 158 mm, 4/3", M58 or Other-mount	$1,929.00	Ships in 2-3 weeks	View
LS-TCL-2751	C or F-mount	$1,929.00	Ships in 2-3 weeks	View
LS-TCL-2753	0.333x, WD 178 mm, 4/3", F or Other-mount	$2,069.00	Ships in 2-3 weeks	View
LS-TCL-2755	0.3x, WD 228 mm, 4/3", M58 or Other-mount	$2,229.00	Ships in 2-3 weeks	View
LS-TCL-2756	0.267x, WD 208 mm, 4/3", F or Other-mount	$2,389.00	Ships in 2-3 weeks	View
LS-TCL-2757	0.24x, WD 258 mm, 4/3", F or Other-mount	$2,599.00	Ships in 2-3 weeks	View
LS-TCL-2754	0.3x, WD 228 mm, 4/3", C or F-mount	$2,659.00	Ships in 2-3 weeks	View
LS-TCL-2758	0.218x, WD 263 mm, 4/3", M58 or other-mount	$2,769.00	Ships in 2-3 weeks	View
LS-TCL-2759	0.2x, WD 280 mm, 4/3", F or Other-mount	$2,969.00	Ships in 2-3 weeks	View
LS-TCL-2760	0.177x, WD 288 mm, 4/3", M58 or other-mount	$3,179.00	Ships in 2-3 weeks	View
LS-TCL-2761	0.16x, WD 300 mm, 4/3", F or Other-mount	$3,519.00	Ships in 2-3 weeks	View
LS-TCL-2762	0.141x, WD 318 mm, 4/3", M58 or other-mount	$3,889.00	Ships in 2-3 weeks	View
LS-TCL-2763	0.126x, WD 330 mm, 4/3", F or Other-mount	$4,329.00	Ships in 2-3 weeks	View
LS-TCL-2764	0.111x, WD 372 mm, 4/3", M58 or other-mount	$5,159.00	Ships in 2-3 weeks	View
LS-TCL-2767	0.09x, WD 438 mm, 4/3", M58 or other-mount	$6,039.00	Ships in 2-3 weeks	View
LS-TCL-2765	0.1x, WD 410 mm, 4/3", C or F-mount	$6,849.00 Quote	Ships in 2-3 weeks	View
LS-TCL-2768	0.08x, WD 465 mm, 4/3", F or Other-mount	$7,029.00 Quote	Ships in 2-3 weeks	View
