Telecentric lenses

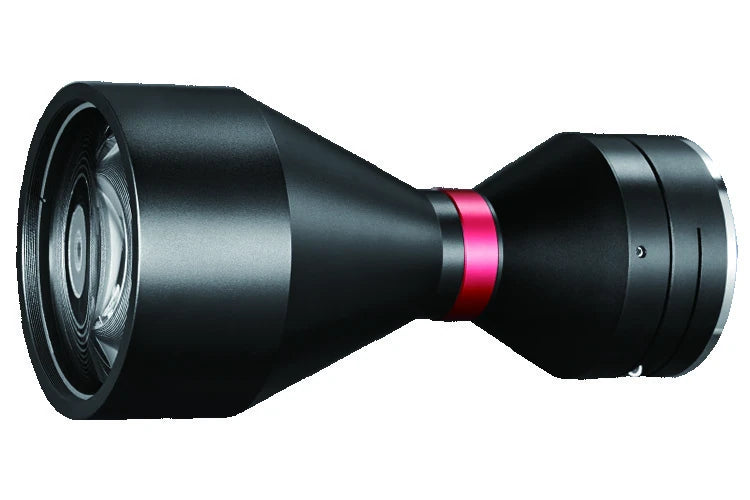

Bi-telecentric lens, 0.333x, WD 178 mm, 4/3", F or Other-mount (LS-TCL-2753)

Model LS-TCL-2753

Magnification0.333x
MountF-mount
Sensor4/3"
Working distance178±3
Field of view72

$2,069.00

Ships in 2-3 weeks

2.06 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

LS-TCL-S86 Series F-Mount high precision bi telecentric lenses are the typical choice for extremely accurate measurement of large items such as engine parts, glass or metal sheets, PCBs and electronic components, LCDs, etc.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-2753

Optics

Object field of view (dia. mm)	72
Working distance (mm)	178±3
Best Aperture (F/#)	7.5
Telecentricity typical (max) (deg)	0.1
Distortion typical (max) (%)	0.1
MTF30 (lp/mm)	>120
Depth of field (mm)	±5.7@F16
Magnification (x)	0.333
Field of view with KAI-08050 (18.13×13.6 sensor) (mm x mm)	54.4x40.8
Field of view with CMV8000 (18.48×13.73 sensor) (mm x mm)	55.5x41.2
Compatible telecentric led lighting	LS-CLM-0075

Sensor and imaging

Max sensor size (dia. mm)	24(4/3")
Sensor format	4/3"

Interfaces and I/O

Length of I/O (mm)	443±3

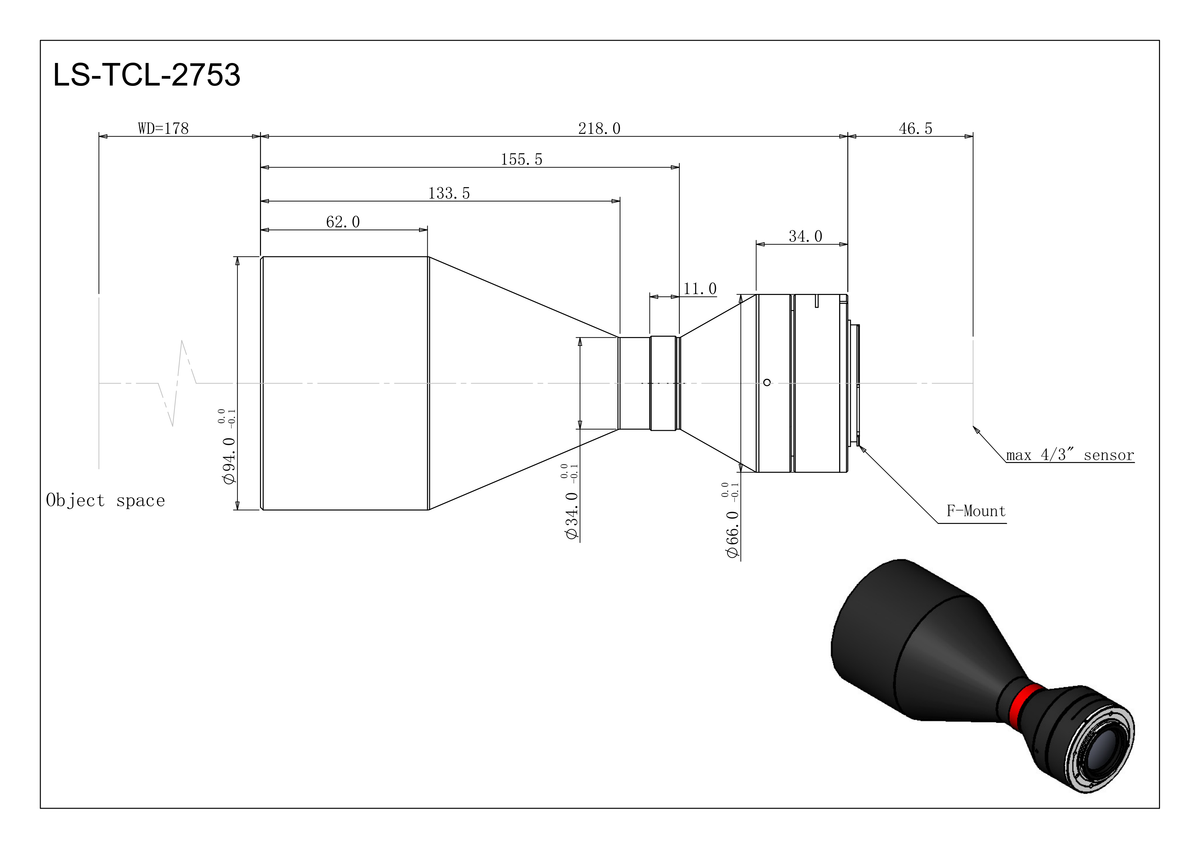

Mechanical

Mount	F or Other
Length (mm)	218.0
Weight (kg)	1.4
