Lenses

2/3-inch telecentric lenses

How to choose a telecentric lens

Telecentric and bi-telecentric lenses keep magnification constant through the depth of field, so parts measure the same size wherever they sit. Lenses rated for 2/3-inch sensors cover an image circle of at least 11 mm, so they also suit smaller sensors; on a larger sensor the corners go dark (vignetting).

All telecentric lenses · 4/3-inch telecentric lenses · 1.1-inch telecentric lenses · 1-inch telecentric lenses · 1/1.8-inch telecentric lenses · 1/2-inch telecentric lenses · 1/2.5-inch telecentric lenses · APS-C telecentric lenses · APS-H telecentric lenses · Full frame telecentric lenses

843 models Configure a systemAll lenses
2/3-inch telecentric lenses

553-576 of 843 models

Products

Compare
LS-TCL-0832Standard telecentric lens, 1x, WD 65 mm, 2/3", C-mount 1xC-mount2/3"65 mmF117.5 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0831Standard telecentric lens, 1x, WD 65 mm, 2/3", C-mount 1xC-mount2/3"65 mmF117.5 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0834Standard telecentric lens, 1.5x, WD 65 mm, 2/3", C-mount 1.5xC-mount2/3"65 mmF125.4 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0833Standard telecentric lens, 1.5x, WD 65 mm, 2/3", C-mount 1.5xC-mount2/3"65 mmF125.4 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0820Standard telecentric lens, 2x, WD 110 mm, 2/3", C-mount 2xC-mount2/3"110 mmF13.64.5 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0819Standard telecentric lens, 2x, WD 110 mm, 2/3", C-mount 2xC-mount2/3"110 mmF13.64.5 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0836Standard telecentric lens, 2x, WD 65 mm, 2/3", C-mount 2xC-mount2/3"65 mmF13.54.5 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0835Standard telecentric lens, 2x, WD 65 mm, 2/3", C-mount 2xC-mount2/3"65 mmF13.54.5 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0838Standard telecentric lens, 3x, WD 65 mm, 2/3", C-mount 3xC-mount2/3"65 mmF163.5 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0837Standard telecentric lens, 3x, WD 65 mm, 2/3", C-mount 3xC-mount2/3"65 mmF163.5 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0824Standard telecentric lens, 6x, WD 110 mm, 2/3", C-mount 6xC-mount2/3"110 mmF354 μm$849.00 Ships in 2-3 weeks
LS-TCL-0823Standard telecentric lens, 6x, WD 110 mm, 2/3", C-mount 6xC-mount2/3"110 mmF354 μm$849.00 Ships in 2-3 weeks
LS-TCL-0822Standard telecentric lens, 4x, WD 110 mm, 2/3", C-mount 4xC-mount2/3"110 mmF223.7 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0821Standard telecentric lens, 4x, WD 110 mm, 2/3", C-mount 4xC-mount2/3"110 mmF223.7 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0840Standard telecentric lens, 4x, WD 65 mm, 2/3", C-mount 4xC-mount2/3"65 mmF183 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0839Standard telecentric lens, 4x, WD 65 mm, 2/3", C-mount 4xC-mount2/3"65 mmF183 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-22790.2x, WD 240 mm, 2/3", C-mount telecentric lens 0.2xC-mount2/3"240 mmF11.3-$2,069.00 Ships in 2-3 weeks

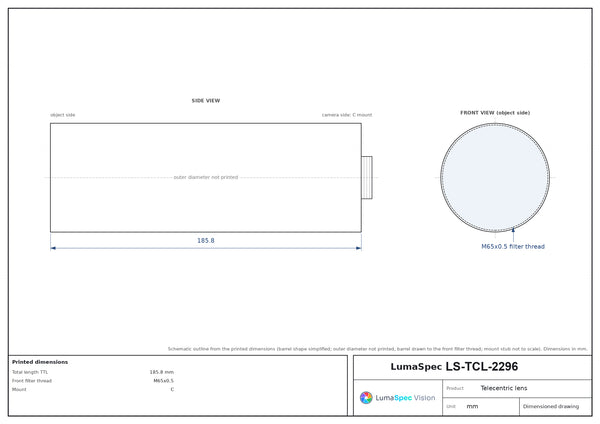

LS-TCL-22960.22x, WD 230 mm, 2/3", C-mount telecentric lens 0.22xC-mount2/3"230 mmF6.9-$1,949.00 Ships in 2-3 weeks

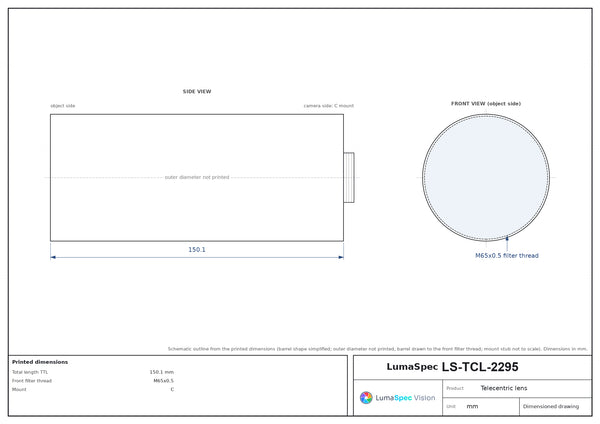

LS-TCL-22950.22x, WD 220 mm, 2/3", C-mount telecentric lens, length 150.1 mm 0.22xC-mount2/3"220 mmF10-$1,949.00 Ships in 2-3 weeks

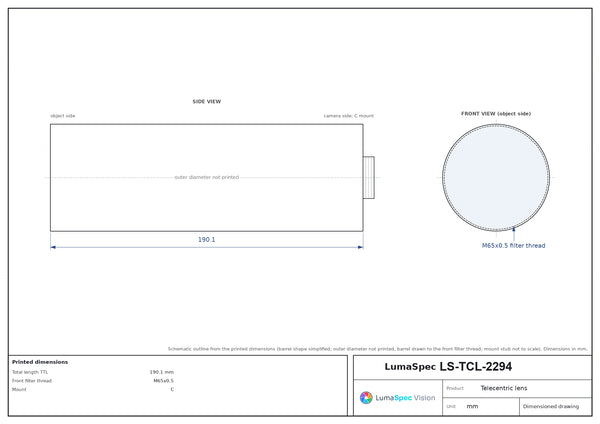

LS-TCL-22940.22x, WD 220 mm, 2/3", C-mount telecentric lens, length 190.1 mm, 21.0 um object-side resolution 0.22xC-mount2/3"220 mmF6.9-$1,949.00 Ships in 2-3 weeks
LS-TCL-22930.22x, WD 220 mm, 2/3", C-mount telecentric lens, length 150.3 mm 0.22xC-mount2/3"220 mmF10-$1,949.00 Ships in 2-3 weeks
LS-TCL-22920.22x, WD 220 mm, 2/3", C-mount telecentric lens, length 190.1 mm, 21 um object-side resolution 0.22xC-mount2/3"220 mmF6.9-$1,949.00 Ships in 2-3 weeks
LS-TCL-22910.22x, WD 200 mm, 2/3", C-mount telecentric lens 0.22xC-mount2/3"200 mmF10-$1,949.00 Ships in 2-3 weeks
LS-TCL-22850.3x, WD 220 mm, 2/3", C-mount telecentric lens with coaxial light 0.3xC-mount2/3"220 mmF13.6-$1,649.00 Ships in 2-3 weeks
