Fixed-focal-length C-mount lenses from 1/1.8" to 4/3" formats, macro lenses, telecentric lenses for measurement, and 4K to 16K line-scan lenses. Lenses rated for 1-inch sensors cover an image circle of at least 16 mm, so they also suit smaller sensors; on a larger sensor the corners go dark (vignetting).

All machine vision lenses · 4/3-inch machine vision lenses · 1.1-inch machine vision lenses · 2/3-inch machine vision lenses · 1/1.7-inch machine vision lenses · 1/1.8-inch machine vision lenses · 1/2-inch machine vision lenses · 1/2.5-inch machine vision lenses · APS-C machine vision lenses · Full frame machine vision lenses

192 models Configure a systemAll lenses
1-inch machine vision lenses

145-168 of 192 models

Products

Compare

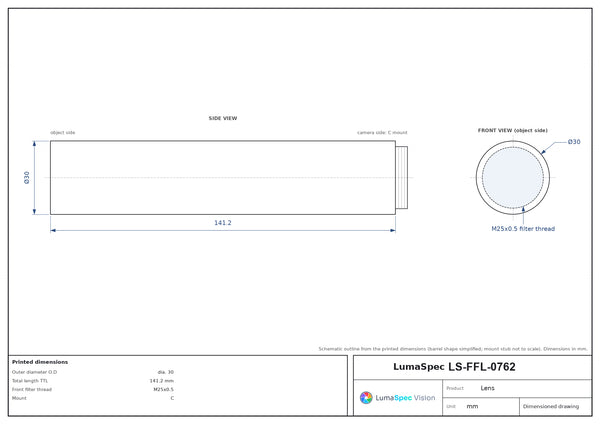

LS-FFL-07621", C-mount machine vision lens, 0.26x, WD 186 mm 0.26xC-mount1"186 mmF9.5-$309.00 Ships in 2-3 weeks
LS-FFL-07611", C-mount machine vision lens, 0.25x, WD 465 mm 0.25xC-mount1"465 mmF10-$309.00 Ships in 2-3 weeks
LS-FFL-07601", C-mount machine vision lens, 0.24x, WD 760 mm 0.24xC-mount1"760 mmF11.2-$309.00 Ships in 2-3 weeks

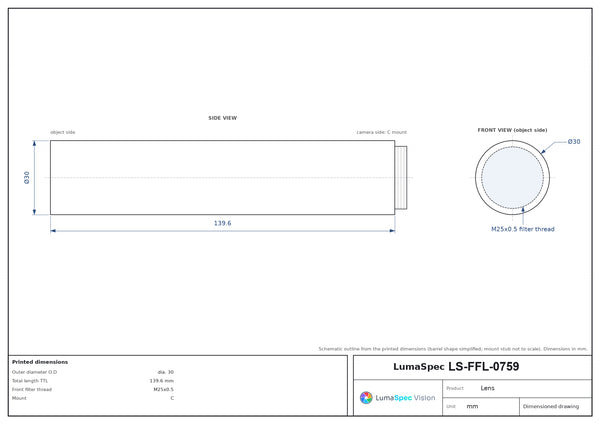

LS-FFL-07591", C-mount machine vision lens, 0.22x, WD 530 mm 0.22xC-mount1"530 mmF10.9-$309.00 Ships in 2-3 weeks

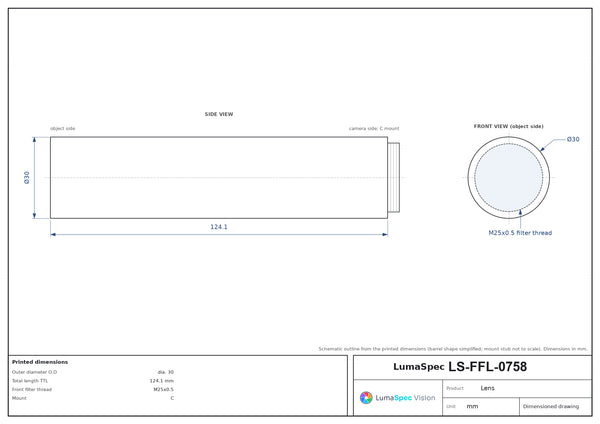

LS-FFL-07581", C-mount machine vision lens, 0.22x, WD 445 mm 0.22xC-mount1"445 mmF12.3-$309.00 Ships in 2-3 weeks
LS-FFL-07571", C-mount machine vision lens, 0.22x, WD 380 mm 0.22xC-mount1"380 mmF12.3-$309.00 Ships in 2-3 weeks

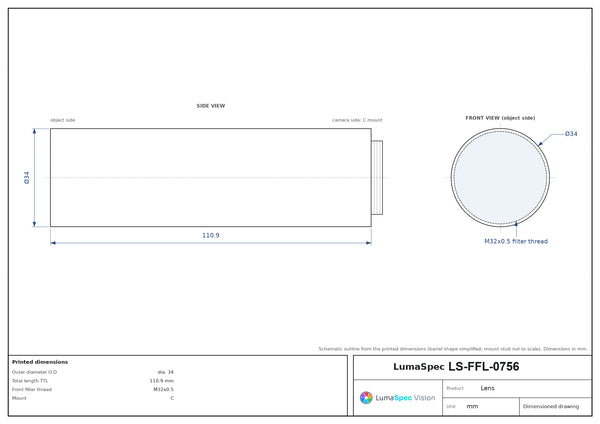

LS-FFL-07561", C-mount machine vision lens, 1.18x, WD 630 mm 1.18xC-mount1"630 mmF5.6-$309.00 Ships in 2-3 weeks

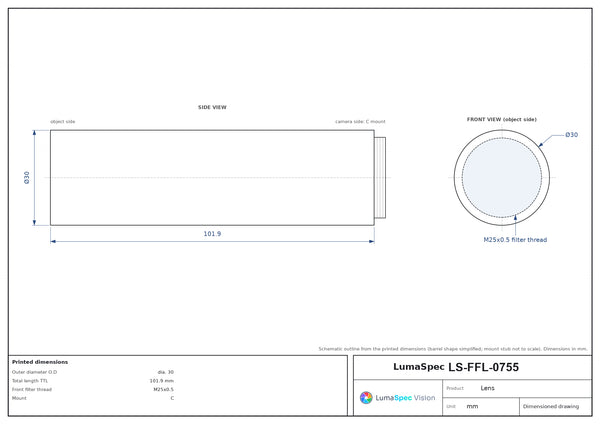

LS-FFL-07551", C-mount machine vision lens, 0.18x, WD 330 mm 0.18xC-mount1"330 mmF18.7-$309.00 Ships in 2-3 weeks

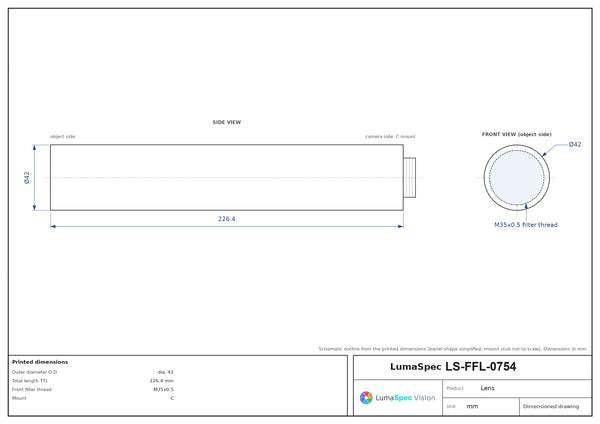

LS-FFL-07541", C-mount machine vision lens, 0.17x, WD 1050 mm 0.17xC-mount1"1050 mmF10.6-$309.00 Ships in 2-3 weeks

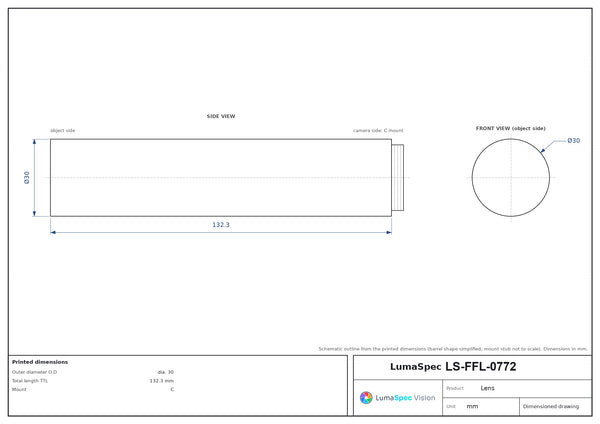

LS-FFL-07721", C-mount machine vision lens, 0.175x, WD 640 mm 0.175xC-mount1"640 mmF10.9-$309.00 Ships in 2-3 weeks
LS-FFL-07531", C-mount machine vision lens, 0.16x, WD 696 mm 0.16xC-mount1"696 mmF5-$309.00 Ships in 2-3 weeks
LS-FFL-07521", C-mount machine vision lens, 0.16x, WD 350 mm 0.16xC-mount1"350 mmF15.5-$309.00 Ships in 2-3 weeks
LS-FFL-07511", C-mount machine vision lens, 0.14x, WD 700 mm 0.14xC-mount1"700 mmF12-$309.00 Ships in 2-3 weeks
LS-FFL-07501", C-mount machine vision lens, 0.14x, WD 600 mm 0.14xC-mount1"600 mmF15-$309.00 Ships in 2-3 weeks
LS-FFL-0637100 mm, 1", 8 MP, C-mount machine vision lens -C-mount1"-F3.5 Manual Iris100 mm$469.00 Ships in 2-3 weeks
LS-FFL-063675 mm, 1", 10 MP, C-mount machine vision lens, 1" (16 mm) -C-mount1"-F2.8 Manual iris75 mm$549.00 Ships in 2-3 weeks
LS-FFL-063475 mm, 1", 5 MP, C-mount machine vision lens 0.055x ~ 0.115xC-mount1"-F1.8 Manual iris75 mm$429.00 Ships in 2-3 weeks
LS-FFL-063575 mm, 1", 10 MP, C-mount machine vision lens -C-mount1"-F1.8 Manual Iris75 mm$549.00 Ships in 2-3 weeks
LS-FFL-063150 mm, 1", 5 MP, C-mount machine vision lens, F2.0 Manual Iris -C-mount1"-F2.0 Manual Iris50 mm$369.00 Ships in 2-3 weeks
LS-FFL-063250 mm, 1", 10 MP, C-mount machine vision lens, F2.0 Manual iris -C-mount1"-F2.0 Manual iris50 mm$499.00 Ships in 2-3 weeks
LS-FFL-062950 mm, 1", 5 MP, C-mount machine vision lens, F1.4 Manual iris 0.05x ~ 0.163xC-mount1"-F1.4 Manual iris50 mm$369.00 Ships in 2-3 weeks
LS-FFL-062850 mm, 1", 12 MP, C-mount machine vision lens, BFL 17.27 mm -C-mount1"-F1.3 manual iris50 mm$499.00 Ships in 2-3 weeks
LS-FFL-062635 mm, 1", 5 MP, C-mount machine vision lens -C-mount1"-F2.0 Manual Iris35 mm$339.00 Ships in 2-3 weeks
LS-FFL-062735 mm, 1", 10 MP, C-mount machine vision lens, F2.0 Manual iris -C-mount1"-F2.0 Manual iris35 mm$479.00 Ships in 2-3 weeks
