1.75-inch telecentric lenses

Build a large-sensor measurement layout

Compare telecentric lenses cataloged for the 1.75-inch optical format. Use the camera dimensions, magnification and working distance to choose a field suitable for dimensional inspection.

All Telecentric lenses

105 models Configure a systemAll lenses
1.75-inch telecentric lenses

97-105 of 105 models

Products

Compare

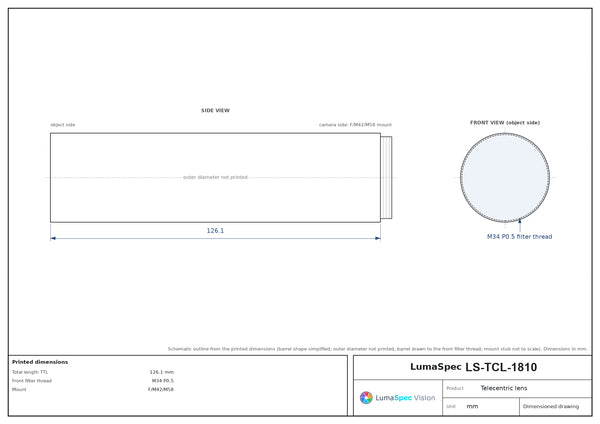

LS-TCL-18101.208x, WD 43 mm, 1.75" telecentric lens 1.208xF-mount, M42, M581.75"43±1 mmF9Ø 24 mm$1,359.00 Ships in 2-3 weeks
LS-TCL-18091.229x, WD 40 mm, 1.75" telecentric lens 1.229xF-mount, M42, M581.75"40±1 mmF6.8Ø 23.6 mm$1,349.00 Ships in 2-3 weeks

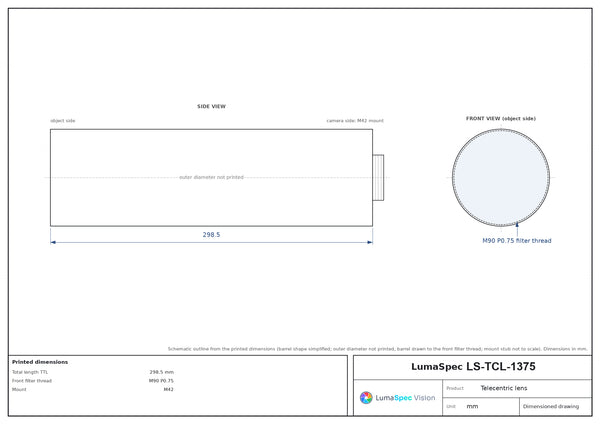

LS-TCL-13750.4x, WD 208 mm, 1.75", M42-mount telecentric lens 0.4xM421.75"208 mmF10.4Ø 79 mm$2,619.00 Ships in 2-3 weeks
LS-TCL-13740.55x, WD 220 mm, 1.75", M42-mount telecentric lens 0.55xM421.75"220 mmF8Ø 51.2 mm$1,979.00 Ships in 2-3 weeks
LS-TCL-13731x, WD 160 mm, 1.75", M42-mount telecentric lens 1xM421.75"160 mmF12Ø 28 mm$1,449.00 Ships in 2-3 weeks
LS-TCL-13711x, WD 83 mm, 1.75", M42-mount telecentric lens 1xM421.75"83 mmF11Ø 28.2 mm$1,449.00 Ships in 2-3 weeks
LS-TCL-13721x, WD 128 mm, 1.75", M42-mount telecentric lens 1xM421.75"128 mmF11Ø 28.2 mm$1,449.00 Ships in 2-3 weeks
LS-TCL-13701.846x, WD 71 mm, 1.75", M42-mount telecentric lens 1.846xM421.75"71 mmF20Ø 15.7 mm$1,259.00 Ships in 2-3 weeks
LS-TCL-08480.806x, WD 110 mm, 1.75", F-mount telecentric lens 0.806xF-mount1.75"110±2 mm-dia. 36 mm$1,639.00 Ships in 2-3 weeks

Build a large-sensor measurement layout

A larger sensor can provide a useful measurement field, but only when the lens image circle and magnification suit the camera. Check the optical and mechanical constraints together. The field, working distance and lens body may have a greater effect on the layout than the format label alone.

  • Use the camera active sensor dimensions and the model image-circle rating to confirm coverage; the optical-format designation is not a literal chip width.
  • Calculate the object field from the active sensor and magnification, and compare it with the complete part envelope and required image detail.
  • Review the lens mount, mass, body size and working distance before designing brackets or lighting. Confirm the printed distortion and telecentricity limits for the chosen model.

Configure a system · Browse all Telecentric lenses
