0.2132x, WD 287 mm, 1.75", M58/F-mount telecentric lens
LS-TCL-1834
- Magnification 0.2132x
- Mount M58, F-mount
- Sensor 1.75"
$3,929.00
Ships in 2-3 weeks
Lenses

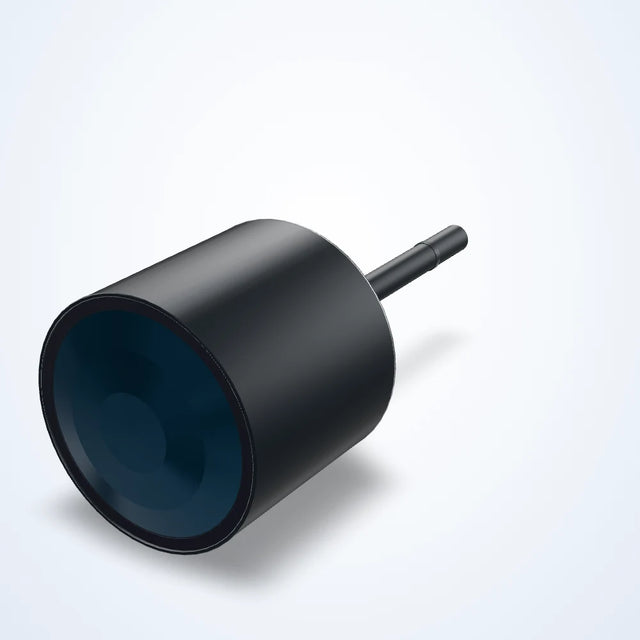

1.75-inch telecentric lenses
Build a large-sensor measurement layoutCompare telecentric lenses cataloged for the 1.75-inch optical format. Use the camera dimensions, magnification and working distance to choose a field suitable for dimensional inspection.
Products
0.242x, WD 280 mm, 1.75", M58/F-mount telecentric lens
LS-TCL-1832
- Magnification 0.242x
- Mount M58, F-mount
- Sensor 1.75"
$3,559.00
Ships in 2-3 weeks
0.29x, WD 258 mm, 1.75", M58/F-mount telecentric lens
LS-TCL-1829
- Magnification 0.29x
- Mount M58, F-mount
- Sensor 1.75"
$3,099.00
Ships in 2-3 weeks
0.363x, WD 228 mm, 1.75", F-mount telecentric lens
LS-TCL-1825
- Magnification 0.363x
- Mount F-mount
- Sensor 1.75"
$2,639.00
Ships in 2-3 weeks
Bi-telecentric lens for 1.75" cameras, 0.12x, WD 410 mm
LS-TCL-2643
- Magnification 0.120x
- Mount F-mount
- Sensor 1.75"
From $6,669.00Quote
Ships in 2-3 weeks
Bi-telecentric lens for 1.75" cameras, 0.171x, WD 318 mm
LS-TCL-2641
- Magnification 0.171x
- Mount F-mount
- Sensor 1.75"
From $4,789.00
Ships in 2-3 weeks

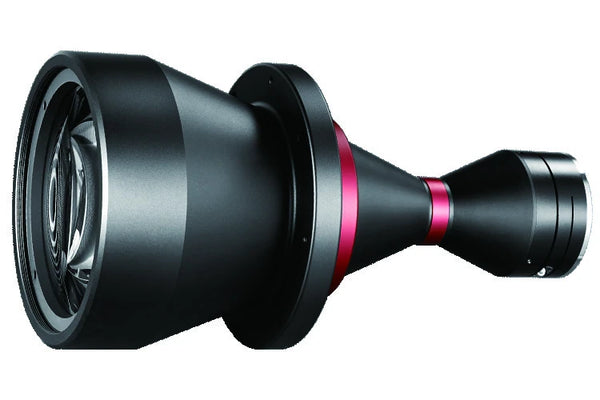

Bi-telecentric lens for 1.75" cameras, 0.193x, WD 301 mm
LS-TCL-2640
- Magnification 0.193x
- Mount F-mount
- Sensor 1.75"
From $4,369.00
Ships in 2-3 weeks
Bi-telecentric lens for 1.75" cameras, 0.214x, WD 288 mm
LS-TCL-2639
- Magnification 0.214x
- Mount F-mount
- Sensor 1.75"
From $4,069.00
Ships in 2-3 weeks
Bi-telecentric lens for 1.75" cameras, 0.261x, WD 251 mm
LS-TCL-2637
- Magnification 0.261x
- Mount F-mount
- Sensor 1.75"
From $3,429.00
Ships in 2-3 weeks

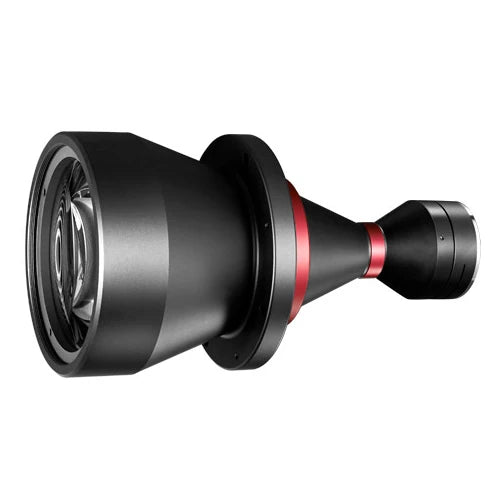

Bi-telecentric lens for 1.75" cameras, 0.312x, WD 254 mm
LS-TCL-2636
- Magnification 0.312x
- Mount F-mount
- Sensor 1.75"
From $2,999.00
Ships in 2-3 weeks

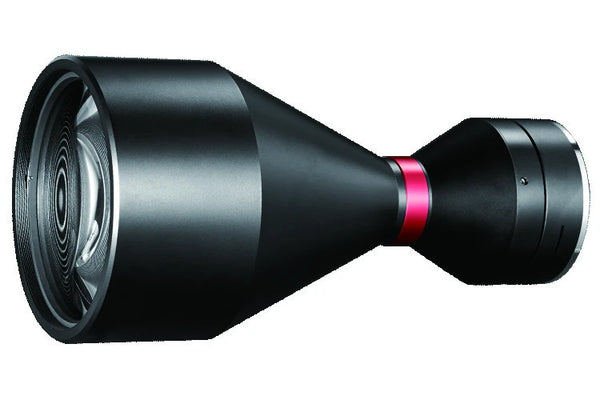

Bi-telecentric lens for 1.75" cameras, 0.36x, WD 229 mm
LS-TCL-2634
- Magnification 0.360x
- Mount F-mount
- Sensor 1.75"
From $2,679.00
Ships in 2-3 weeks

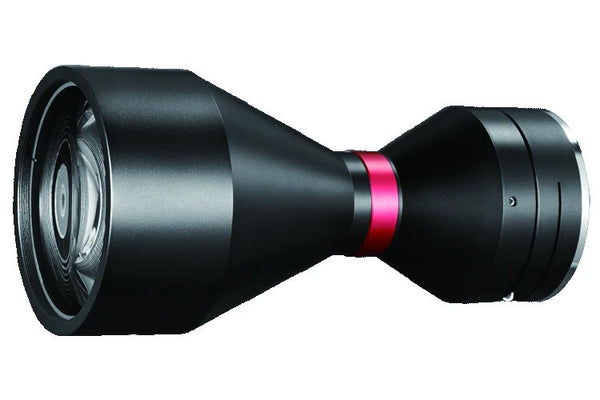

Bi-telecentric lens for 1.75" cameras, 0.401x, WD 178 mm
LS-TCL-2633
- Magnification 0.401x
- Mount F-mount
- Sensor 1.75"
From $2,479.00
Ships in 2-3 weeks
Bi-telecentric lens for 1.75" cameras, 0.452x, WD 159 mm
LS-TCL-2632
- Magnification 0.452x
- Mount F-mount
- Sensor 1.75"
From $2,289.00
Ships in 2-3 weeks
Bi-telecentric lens for 1.75" cameras, 0.456x, WD 187 mm
LS-TCL-2631
- Magnification 0.456x
- Mount F-mount
- Sensor 1.75"
From $2,259.00
Ships in 2-3 weeks
Bi-telecentric lens for 1.75" cameras, 0.517x, WD 138 mm
LS-TCL-2630
- Magnification 0.517x
- Mount F-mount
- Sensor 1.75"
From $2,099.00
Ships in 2-3 weeks

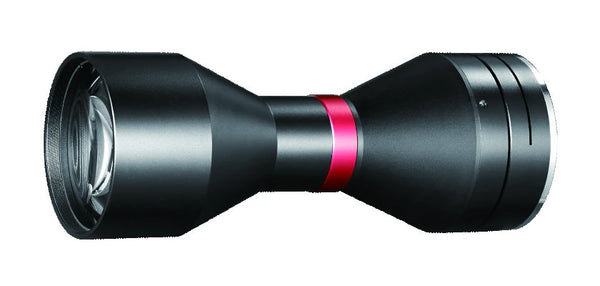

Bi-telecentric lens for 1.75" cameras, 0.603x, WD 128 mm
LS-TCL-2628
- Magnification 0.603x
- Mount F-mount
- Sensor 1.75"
From $1,909.00
Ships in 2-3 weeks

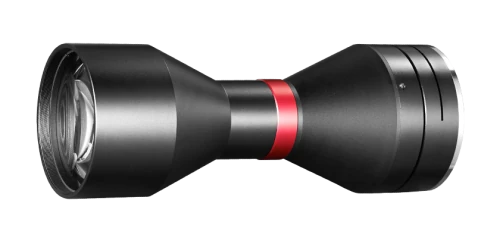

Bi-telecentric lens for 1.75" cameras, 0.686x, WD 119 mm
LS-TCL-2627
- Magnification 0.686x
- Mount F-mount
- Sensor 1.75"
From $1,779.00
Ships in 2-3 weeks

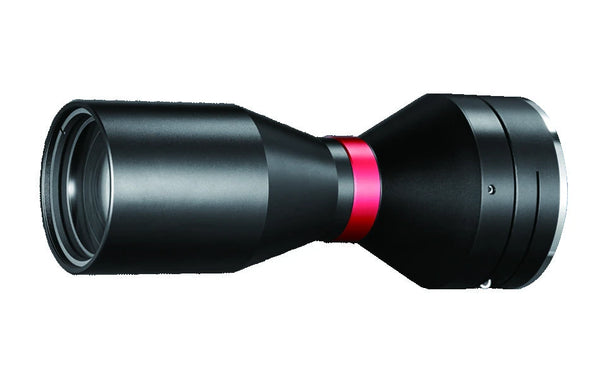

Bi-telecentric lens for 1.75" cameras, 0.798x, WD 111 mm
LS-TCL-2626
- Magnification 0.798x
- Mount F-mount
- Sensor 1.75"
From $1,639.00
Ships in 2-3 weeks

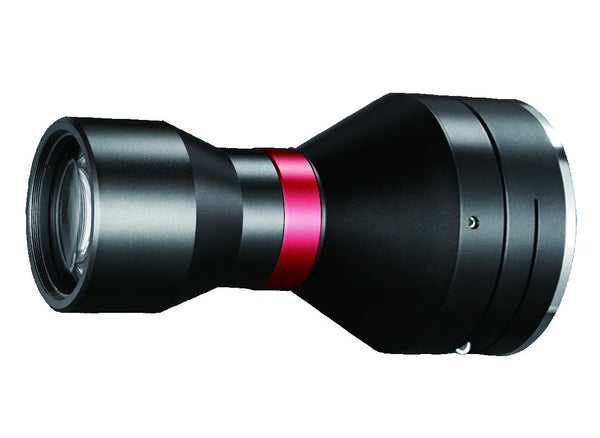

Bi-telecentric lens for 1.75" cameras, 1.115x, WD 72 mm
LS-TCL-2625
- Magnification 1.115x
- Mount F-mount
- Sensor 1.75"
From $1,409.00
Ships in 2-3 weeks
0.097x, WD 465 mm, 1.75", M58-mount telecentric lens
LS-TCL-1845
- Magnification 0.097x
- Mount M58
- Sensor 1.75"
$8,699.00Quote
Ships in 2-3 weeks

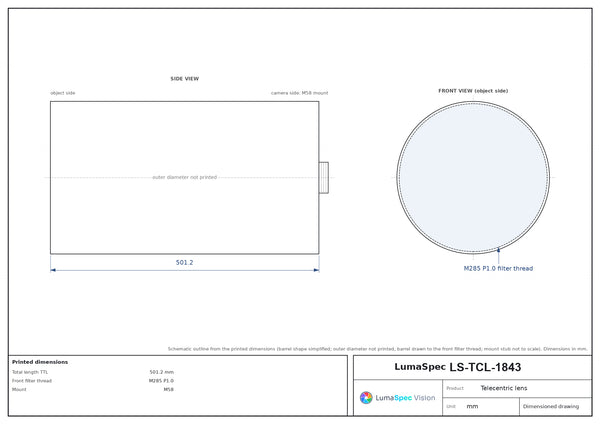

0.112x, WD 338 mm, 1.75", M58-mount telecentric lens
LS-TCL-1843
- Magnification 0.112x
- Mount M58
- Sensor 1.75"
$7,229.00Quote
Ships in 2-3 weeks
0.121x, WD 410 mm, 1.75", M58-mount telecentric lens
LS-TCL-1842
- Magnification 0.121x
- Mount M58
- Sensor 1.75"
$6,709.00Quote
Ships in 2-3 weeks
0.134x, WD 372 mm, 1.75", M58-mount telecentric lens
LS-TCL-1841
- Magnification 0.134x
- Mount M58
- Sensor 1.75"
$6,039.00Quote
Ships in 2-3 weeks
0.153x, WD 330 mm, 1.75", M59-mount telecentric lens
LS-TCL-1840
- Magnification 0.153x
- Mount M59
- Sensor 1.75"
$5,159.00Quote
Ships in 2-3 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-TCL-18340.2132x, WD 287 mm, 1.75", M58/F-mount telecentric lens
| 0.2132x | M58, F-mount | 1.75" | 287 mm | F6.8 | Ø 136 mm | $3,929.00 | Ships in 2-3 weeks | |
|
LS-TCL-18320.242x, WD 280 mm, 1.75", M58/F-mount telecentric lens
| 0.242x | M58, F-mount | 1.75" | 280 mm | F9.7 | Ø 120 mm | $3,559.00 | Ships in 2-3 weeks | |
|
LS-TCL-18290.29x, WD 258 mm, 1.75", M58/F-mount telecentric lens
| 0.29x | M58, F-mount | 1.75" | 258 mm | F11.3 | Ø 100 mm | $3,099.00 | Ships in 2-3 weeks | |
|
LS-TCL-18250.363x, WD 228 mm, 1.75", F-mount telecentric lens
| 0.363x | F-mount | 1.75" | 228 mm | F17.1 | Ø 80 mm | $2,639.00 | Ships in 2-3 weeks | |
 LS-TCL-2643Bi-telecentric lens for 1.75" cameras, 0.12x, WD 410 mm
| 0.120x | F-mount | 1.75" | 410±5 mm | - | Ø 240 mm | From $6,669.00Quote | Ships in 2-3 weeks | |
 LS-TCL-2641Bi-telecentric lens for 1.75" cameras, 0.171x, WD 318 mm
| 0.171x | F-mount | 1.75" | 318±4 mm | - | Ø 168 mm | From $4,789.00 | Ships in 2-3 weeks | |
 LS-TCL-2640Bi-telecentric lens for 1.75" cameras, 0.193x, WD 301 mm
| 0.193x | F-mount | 1.75" | 301±4 mm | - | Ø 150 mm | From $4,369.00 | Ships in 2-3 weeks | |
 LS-TCL-2639Bi-telecentric lens for 1.75" cameras, 0.214x, WD 288 mm
| 0.214x | F-mount | 1.75" | 288±4 mm | - | Ø 136 mm | From $4,069.00 | Ships in 2-3 weeks | |
 LS-TCL-2637Bi-telecentric lens for 1.75" cameras, 0.261x, WD 251 mm
| 0.261x | F-mount | 1.75" | 251±3 mm | - | 86.3x64.7 mm | From $3,429.00 | Ships in 2-3 weeks | |
 LS-TCL-2636Bi-telecentric lens for 1.75" cameras, 0.312x, WD 254 mm
| 0.312x | F-mount | 1.75" | 254±3 mm | - | 72.2x54.1 mm | From $2,999.00 | Ships in 2-3 weeks | |
 LS-TCL-2634Bi-telecentric lens for 1.75" cameras, 0.36x, WD 229 mm
| 0.360x | F-mount | 1.75" | 229±2 mm | - | Ø 80 mm | From $2,679.00 | Ships in 2-3 weeks | |
 LS-TCL-2633Bi-telecentric lens for 1.75" cameras, 0.401x, WD 178 mm
| 0.401x | F-mount | 1.75" | 178±2 mm | - | Ø 72 mm | From $2,479.00 | Ships in 2-3 weeks | |
|
LS-TCL-2632Bi-telecentric lens for 1.75" cameras, 0.452x, WD 159 mm
| 0.452x | F-mount | 1.75" | 159±2 mm | - | 49.8x37.3 mm | From $2,289.00 | Ships in 2-3 weeks | |
 LS-TCL-2631Bi-telecentric lens for 1.75" cameras, 0.456x, WD 187 mm
| 0.456x | F-mount | 1.75" | 187±2 mm | - | Ø 64 mm | From $2,259.00 | Ships in 2-3 weeks | |
 LS-TCL-2630Bi-telecentric lens for 1.75" cameras, 0.517x, WD 138 mm
| 0.517x | F-mount | 1.75" | 138±2 mm | - | 43.5x32.6 mm | From $2,099.00 | Ships in 2-3 weeks | |
 LS-TCL-2628Bi-telecentric lens for 1.75" cameras, 0.603x, WD 128 mm
| 0.603x | F-mount | 1.75" | 128±2 mm | - | Ø 48 mm | From $1,909.00 | Ships in 2-3 weeks | |
 LS-TCL-2627Bi-telecentric lens for 1.75" cameras, 0.686x, WD 119 mm
| 0.686x | F-mount | 1.75" | 119±2 mm | - | 32.8x24.6 mm | From $1,779.00 | Ships in 2-3 weeks | |
 LS-TCL-2626Bi-telecentric lens for 1.75" cameras, 0.798x, WD 111 mm
| 0.798x | F-mount | 1.75" | 111±2 mm | - | Ø 36 mm | From $1,639.00 | Ships in 2-3 weeks | |
 LS-TCL-2625Bi-telecentric lens for 1.75" cameras, 1.115x, WD 72 mm
| 1.115x | F-mount | 1.75" | 72±2 mm | - | Ø 26 mm | From $1,409.00 | Ships in 2-3 weeks | |
 LS-TCL-18450.097x, WD 465 mm, 1.75", M58-mount telecentric lens
| 0.097x | M58 | 1.75" | 465±6 mm | F8.5 | Ø 300 mm | $8,699.00Quote | Ships in 2-3 weeks | |
 LS-TCL-18430.112x, WD 338 mm, 1.75", M58-mount telecentric lens
| 0.112x | M58 | 1.75" | 338±5 mm | F6.8 | Ø 258 mm | $7,229.00Quote | Ships in 2-3 weeks | |
 LS-TCL-18420.121x, WD 410 mm, 1.75", M58-mount telecentric lens
| 0.121x | M58 | 1.75" | 410±6 mm | F6.8 | Ø 240 mm | $6,709.00Quote | Ships in 2-3 weeks | |
 LS-TCL-18410.134x, WD 372 mm, 1.75", M58-mount telecentric lens
| 0.134x | M58 | 1.75" | 372±5 mm | F6.8 | Ø 216 mm | $6,039.00Quote | Ships in 2-3 weeks | |
|
LS-TCL-18400.153x, WD 330 mm, 1.75", M59-mount telecentric lens
| 0.153x | M59 | 1.75" | 330±5 mm | F6.8 | Ø 190 mm | $5,159.00Quote | Ships in 2-3 weeks |
Build a large-sensor measurement layout
A larger sensor can provide a useful measurement field, but only when the lens image circle and magnification suit the camera. Check the optical and mechanical constraints together. The field, working distance and lens body may have a greater effect on the layout than the format label alone.
- Use the camera active sensor dimensions and the model image-circle rating to confirm coverage; the optical-format designation is not a literal chip width.
- Calculate the object field from the active sensor and magnification, and compare it with the complete part envelope and required image detail.
- Review the lens mount, mass, body size and working distance before designing brackets or lighting. Confirm the printed distortion and telecentricity limits for the chosen model.
