Lenses

1/2-inch telecentric lenses

How to choose a telecentric lens

Telecentric and bi-telecentric lenses keep magnification constant through the depth of field, so parts measure the same size wherever they sit. Lenses rated for 1/2-inch sensors cover an image circle of at least 8 mm, so they also suit smaller sensors; on a larger sensor the corners go dark (vignetting).

All telecentric lenses · 4/3-inch telecentric lenses · 1.1-inch telecentric lenses · 1-inch telecentric lenses · 2/3-inch telecentric lenses · 1/1.8-inch telecentric lenses · 1/2.5-inch telecentric lenses · APS-C telecentric lenses · APS-H telecentric lenses · Full frame telecentric lenses

307 models Configure a systemAll lenses
1/2-inch telecentric lenses

73-96 of 307 models

Products

Compare
LS-TCL-0511Object-side telecentric lens, 0.5x, 190 mm WD, 1/2" 0.5xC-mount1/2"190 mmF16.3$829.00 Ships in 2-3 weeks

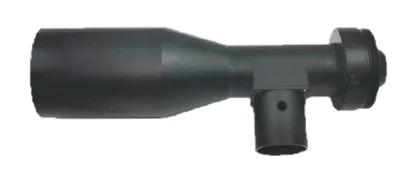

LS-TCL-0516Object-side telecentric lens, 0.6x, 65 mm WD, 1/2", coaxial light port 0.6xC-mount1/2"65 mmF8$809.00 Ships in 2-3 weeks

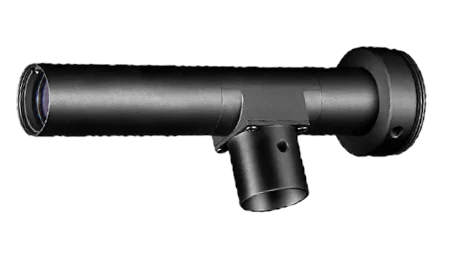

LS-TCL-0519Object-side telecentric lens, 0.8x, 110 mm WD, 1/2", coaxial light port 0.8xC-mount1/2"110 mmF11.9$789.00 Ships in 2-3 weeks
LS-TCL-0518Object-side telecentric lens, 0.8x, 65 mm WD, 1/2" 0.8xC-mount1/2"65 mmF11.9$739.00 Ships in 2-3 weeks
LS-TCL-0521Object-side telecentric lens, 0.8x, 130 mm WD, 1/2", coaxial light port 0.8xC-mount1/2"130 mmF15.2$739.00 Ships in 2-3 weeks

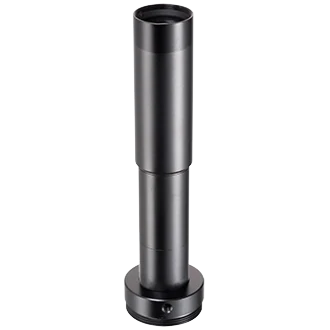

LS-TCL-0520Object-side telecentric lens, 0.8x, 130 mm WD, 1/2" 0.8xC-mount1/2"130 mmF15.2$739.00 Ships in 2-3 weeks
LS-TCL-0522Fixed-magnification lens, 0.8x, 150 mm WD, 1/2" 0.8xC-mount1/2"150 mmF13.6$729.00 Ships in 2-3 weeks
LS-TCL-0523Fixed-magnification lens, 0.8x, 150 mm WD, 1/2", coaxial light port 0.8xC-mount1/2"150 mmF27$729.00 Ships in 2-3 weeks

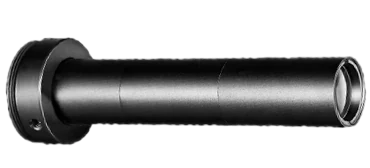

LS-TCL-0491Object-side telecentric lens, 1x, 65 mm WD, 1/2" 1xC-mount1/2"65 mmF12.1$709.00 Ships in 2-3 weeks
LS-TCL-0490Object-side telecentric lens, 1x, 65 mm WD, 1/2", coaxial light port 1xC-mount1/2"65 mmF12.1$709.00 Ships in 2-3 weeks
LS-TCL-0493Object-side telecentric lens, 1x, 113 mm WD, 1/2", coaxial light port 1xC-mount1/2"113 mmF13.7$689.00 Ships in 2-3 weeks
LS-TCL-0494Object-side telecentric lens, 1x, 150 mm WD, 1/2" 1xC-mount1/2"150 mmF23.5$689.00 Ships in 2-3 weeks
LS-TCL-0492Object-side telecentric lens, 1x, 113 mm WD, 1/2" 1xC-mount1/2"113 mmF13.7$689.00 Ships in 2-3 weeks
LS-TCL-0495Object-side telecentric lens, 1x, 180 mm WD, 1/2", coaxial light port 1xC-mount1/2"180 mmF13.0$689.00 Ships in 2-3 weeks
LS-TCL-0527Object-side telecentric lens, 1.5x, 65 mm WD, 1/2", coaxial light port 1.5xC-mount1/2"65 mmF17.3$649.00 Ships in 2-3 weeks
LS-TCL-0526Object-side telecentric lens, 1.5x, 65 mm WD, 1/2" 1.5xC-mount1/2"65 mmF17.3$649.00 Ships in 2-3 weeks
LS-TCL-0496Object-side telecentric lens, 2x, 65 mm WD, 1/2", coaxial light port 2xC-mount1/2"65 mmF13.7$629.00 Ships in 2-3 weeks
LS-TCL-0529Fixed-magnification lens, 1.5x, 110 mm WD, 1/2", coaxial light port 1.5xC-mount1/2"110 mmF13.2$629.00 Ships in 2-3 weeks
LS-TCL-0528Fixed-magnification lens, 1.5x, 110 mm WD, 1/2" 1.5xC-mount1/2"110 mmF13.2$629.00 Ships in 2-3 weeks
LS-TCL-0499Object-side telecentric lens, 2x, 150 mm WD, 1/2" 2xC-mount1/2"150 mmF32.4$619.00 Ships in 2-3 weeks
LS-TCL-0498Object-side telecentric lens, 2x, 110 mm WD, 1/2", coaxial light port 2xC-mount1/2"110 mmF23.7$609.00 Ships in 2-3 weeks
LS-TCL-0497Object-side telecentric lens, 2x, 110 mm WD, 1/2" 2xC-mount1/2"110 mmF23.7$609.00 Ships in 2-3 weeks
LS-TCL-0500Fixed-magnification lens, 2x, 250 mm WD, 1/3" 2xC-mount1/2"250 mmF40$609.00 Ships in 2-3 weeks
LS-TCL-0507Fixed-magnification lens, 4x, 200 mm WD, 1/2", coaxial light port 4xC-mount1/2"200 mmF64.6$589.00 Ships in 2-3 weeks
