USB3.0 area scan camera, 13 MP, Color
LS-CMR-0482
- Resolution 4096*3072
- Interface USB3.0
- Speed 31.9FPS
$1,769.00
Ships in 2-3 weeks
Cameras
1.1-inch area scan cameras
How to choose an area scan cameraHikrobot industrial area-scan cameras from 0.4 MP to over 600 MP, mono and colour, global or rolling shutter. These cameras carry a 1.1-inch sensor (17.6 mm diagonal): choose a lens rated for this format or larger, so the image circle covers the whole sensor.
All area scan cameras · 1-inch area scan cameras · 2/3-inch area scan cameras · 1/1.7-inch area scan cameras · 1/1.8-inch area scan cameras · 1/2-inch area scan cameras · 1/2.5-inch area scan cameras · 1/2.9-inch area scan cameras · APS-C area scan cameras · APS-H area scan cameras
Products
Microscope camera, 26 MP, USB3, Mono
LS-CMR-0456
- Resolution 5120*5120
- Interface USB3.0
- Speed 17FPS
$2,219.00
Ships in 2-3 weeks
Microscope camera, 26 MP, USB3, Color/Mono
LS-CMR-0455
- Resolution 5120*5120
- Interface USB3.0
- Speed 17FPS
$2,219.00
Ships in 2-3 weeks
GigE area scan camera, 13 MP, Color/Mono, 3.4 μm pixels
LS-CMR-0446
- Resolution 4096*3072
- Interface GigE
- Speed 9.4FPS
$1,109.00
Ships in 2-3 weeks
GigE area scan camera, 13 MP, Color/Mono, 3.4 μm pixels
LS-CMR-0447
- Resolution 4096*3072
- Interface GigE
- Speed 9.4FPS
$1,109.00
Ships in 2-3 weeks
GigE area scan camera with large format size, 12 MP, Color/Mono, < 3.744 W
LS-CMR-0376
- Resolution 4090×3000
- Interface GigE (RJ45 Gigabit Ethernet)
- Speed 9.5 fps
$1,469.00
Ships in 2-3 weeks
Double USB3.0 area scan camera, 26 MP, Mono
LS-CMR-0371
- Resolution 5120*5120
- Interface USB3.0*2
- Speed 30FPS
$2,219.00
Ships in 2-3 weeks
Double USB3.0 area scan camera, 26 MP, Mono, <5 W
LS-CMR-0369
- Resolution 5120*5120
- Interface USB3.0*2
- Speed 30FPS
$2,219.00
Ships in 2-3 weeks
High-resolution large area scan industrial camera, 12 MP, Camera Link, Mono / Colour
LS-CMR-0274
- Resolution 3840 x 3000
- Interface Camera Link
- Speed 69 fps
$2,859.00
Ships in 2-3 weeks
High-resolution large area scan industrial camera, 26 MP, USB3, Mono / Colour
LS-CMR-0276
- Resolution 5120 x 5120
- Interface USB3.0
- Speed 14 fps
$2,219.00
Ships in 2-3 weeks
High-resolution large area scan industrial camera, 12 MP, USB3, Mono / Colour
LS-CMR-0273
- Resolution 4096 x 3000
- Interface USB3.0
- Speed 23 fps
$1,759.00
Ships in 2-3 weeks
Area scan camera, 12 MP, GigE, M/C
LS-CMR-0257
- Resolution 4096 x 3000
- Interface GigE, POE
- Speed 9 fps
$1,469.00
Ships in 2-3 weeks
Hikrobot MV-CH120-60UC 12 MP Area Scan Camera, Color
MV-CH120-60UC
- Resolution 4096 × 3000
- Sensor CMOS, global shutter
- Interface USB 3.0, compatible with USB 2.0
$2,339.00Quote
Ships in 2-3 weeks
Hikrobot MV-CH120-60UM 12 MP Area Scan Camera, Mono
MV-CH120-60UM
- Resolution 4096 × 3000
- Sensor CMOS, global shutter
- Interface USB 3.0, compatible with USB 2.0
$2,339.00Quote
Ships in 2-3 weeks
Hikrobot MV-CH120-11UC 12 MP Area Scan Camera, USB3, IMX304, High-speed version, Color
MV-CH120-11UC
- Resolution 4096 × 3000
- Sensor CMOS, global shutter
- Interface USB 3.0, compatible with USB 2.0
$2,339.00Quote
Ships in 2-3 weeks
Hikrobot MV-CH120-11UM 12 MP Area Scan Camera, USB3, IMX304, High-speed version, Mono
MV-CH120-11UM
- Resolution 4096 × 3000
- Sensor CMOS, global shutter
- Interface USB 3.0, compatible with USB 2.0
$2,339.00Quote
Ships in 2-3 weeks
Hikrobot MV-CH120-10UC(EoL) 12 MP Area Scan Camera, USB3, IMX304, Color
MV-CH120-10UC(EoL)
- Resolution 4096 × 3000
- Sensor CMOS, global shutter
- Interface USB3.0, compatible with USB2.0
$2,339.00Quote
Ships in 2-3 weeks
Hikrobot MV-CH120-10UM(EoL) 12 MP Area Scan Camera, USB3, IMX304, Mono
MV-CH120-10UM(EoL)
- Resolution 4096 × 3000
- Sensor CMOS, global shutter
- Interface USB3.0, compatible with USB2.0
$2,339.00Quote
Ships in 2-3 weeks
Hikrobot MV-CH160-60GM 16 MP Area Scan Camera, GigE
MV-CH160-60GM
- Resolution 4000 × 4000
- Sensor CMOS, global shutter
- Speed 7.25 fps @ 4000 × 4000
$2,229.00Quote
Ships in 2-3 weeks
Hikrobot MV-CH120-60GC 12 MP Area Scan Camera, GigE, Color
MV-CH120-60GC
- Resolution 4096 × 3000
- Sensor CMOS, global shutter
- Speed 9.5 fps @ 4096 × 3000 Bayer GB 8
$1,959.00Quote
Ships in 2-3 weeks
Hikrobot MV-CH120-60GM 12 MP Area Scan Camera, GigE, Mono
MV-CH120-60GM
- Resolution 4096 × 3000
- Sensor CMOS, global shutter
- Speed 9.5 fps @ 4096 × 3000 Mono 8
$1,959.00Quote
Ships in 2-3 weeks

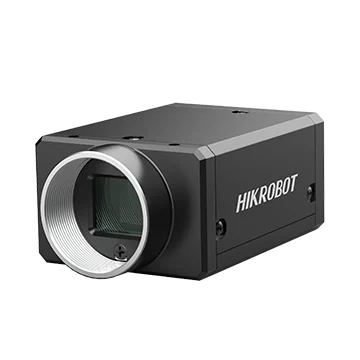

Hikrobot MV-CH120-10GC(EoL) 12 MP Area Scan Camera, GigE, IMX304, Color
MV-CH120-10GC(EoL)
- Resolution 4096 × 3000
- Sensor CMOS, global shutter
- Speed 9.4 fps @ 4096 × 3000
$1,959.00Quote
Ships in 2-3 weeks
Hikrobot MV-CH120-10GM(EoL) 12 MP Area Scan Camera, GigE, IMX304, Mono
MV-CH120-10GM(EoL)
- Resolution 4096 × 3000
- Sensor CMOS, global shutter
- Speed 9.4 fps @ 4096 × 3000
$1,959.00Quote
Ships in 2-3 weeks

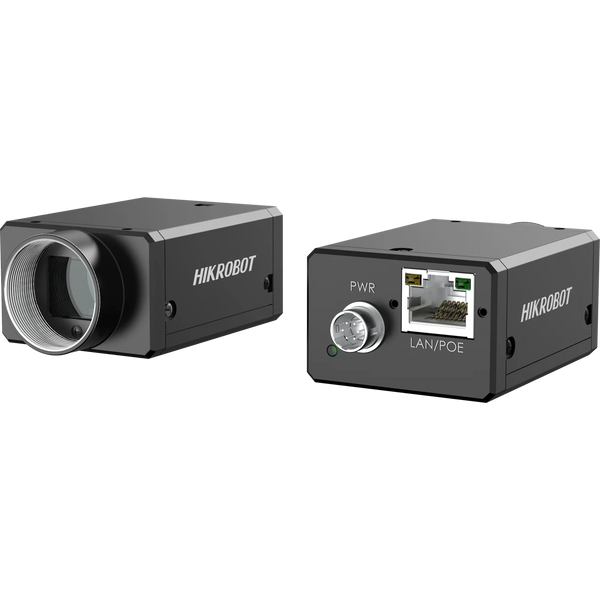

Hikrobot MV-CA017-10GC 1.7 MP Area Scan Camera, GigE, IMX432, Color
MV-CA017-10GC
- Resolution 1608 × 1104
- Sensor CMOS, global shutter
- Speed 68.5 fps @ 1608 × 1104
$1,419.00Quote
Ships in 2-3 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-CMR-0482USB3.0 area scan camera, 13 MP, Color
| 4096*3072 | USB3.0 | 31.9FPS | C-mount | 3.4 μm | - | $1,769.00 | Ships in 2-3 weeks | |
 LS-CMR-0456Microscope camera, 26 MP, USB3, Mono
| 5120*5120 | USB3.0 | 17FPS | C-mount | 2.5 μm | - | $2,219.00 | Ships in 2-3 weeks | |
|
LS-CMR-0455Microscope camera, 26 MP, USB3, Color/Mono
| 5120*5120 | USB3.0 | 17FPS | C-mount | 2.5 μm | - | $2,219.00 | Ships in 2-3 weeks | |
 LS-CMR-0446GigE area scan camera, 13 MP, Color/Mono, 3.4 μm pixels
| 4096*3072 | GigE | 9.4FPS | C-mount | 3.4 μm | - | $1,109.00 | Ships in 2-3 weeks | |
|
LS-CMR-0447GigE area scan camera, 13 MP, Color/Mono, 3.4 μm pixels
| 4096*3072 | GigE | 9.4FPS | C-mount | 3.4 μm | - | $1,109.00 | Ships in 2-3 weeks | |
 LS-CMR-0376GigE area scan camera with large format size, 12 MP, Color/Mono, < 3.744 W
| 4090×3000 | GigE (RJ45 Gigabit Ethernet) | 9.5 fps | C-mount | 3.45 μm | - | $1,469.00 | Ships in 2-3 weeks | |
 LS-CMR-0371Double USB3.0 area scan camera, 26 MP, Mono
| 5120*5120 | USB3.0*2 | 30FPS | C-mount | 2.5 μm | - | $2,219.00 | Ships in 2-3 weeks | |
|
LS-CMR-0369Double USB3.0 area scan camera, 26 MP, Mono, <5 W
| 5120*5120 | USB3.0*2 | 30FPS | C-mount | 2.5 μm | Mono | $2,219.00 | Ships in 2-3 weeks | |
 LS-CMR-0274High-resolution large area scan industrial camera, 12 MP, Camera Link, Mono / Colour
| 3840 x 3000 | Camera Link | 69 fps | C-mount | 3.45 x 3.45 μm | - | $2,859.00 | Ships in 2-3 weeks | |
|
LS-CMR-0276High-resolution large area scan industrial camera, 26 MP, USB3, Mono / Colour
| 5120 x 5120 | USB3.0 | 14 fps | C-mount | 2.5 x 2.5 μm | - | $2,219.00 | Ships in 2-3 weeks | |
|
LS-CMR-0273High-resolution large area scan industrial camera, 12 MP, USB3, Mono / Colour
| 4096 x 3000 | USB3.0 | 23 fps | C-mount | 3.45 x 3.45 μm | - | $1,759.00 | Ships in 2-3 weeks | |
 LS-CMR-0257Area scan camera, 12 MP, GigE, M/C
| 4096 x 3000 | GigE, POE | 9 fps | C-mount | 3.45 μm | M/C | $1,469.00 | Ships in 2-3 weeks | |
 MV-CH120-60UCHikrobot MV-CH120-60UC 12 MP Area Scan Camera, Color
| 4096 × 3000 | USB 3.0, compatible with USB 2.0 | 30.7 fps @ 4096 × 3000 Bayer GB 8 | C-mount | - | Color | $2,339.00Quote | Ships in 2-3 weeks | |
|
MV-CH120-60UMHikrobot MV-CH120-60UM 12 MP Area Scan Camera, Mono
| 4096 × 3000 | USB 3.0, compatible with USB 2.0 | 30.7 fps @ 4096 × 3000 Mono 8 | C-mount | - | Mono | $2,339.00Quote | Ships in 2-3 weeks | |
 MV-CH120-11UCHikrobot MV-CH120-11UC 12 MP Area Scan Camera, USB3, IMX304, High-speed version, Color
| 4096 × 3000 | USB 3.0, compatible with USB 2.0 | 30.3 fps @ 4096 × 3000 Bayer RG 8 | C-mount | - | Color | $2,339.00Quote | Ships in 2-3 weeks | |
|
MV-CH120-11UMHikrobot MV-CH120-11UM 12 MP Area Scan Camera, USB3, IMX304, High-speed version, Mono
| 4096 × 3000 | USB 3.0, compatible with USB 2.0 | 30.3 fps @ 4096 × 3000 Mono 8 | C-mount | - | Mono | $2,339.00Quote | Ships in 2-3 weeks | |
 MV-CH120-10UC(EoL)Hikrobot MV-CH120-10UC(EoL) 12 MP Area Scan Camera, USB3, IMX304, Color
| 4096 × 3000 | USB3.0, compatible with USB2.0 | 23.1 fps @ 4096 × 3000 | C-mount | - | Color | $2,339.00Quote | Ships in 2-3 weeks | |
|
MV-CH120-10UM(EoL)Hikrobot MV-CH120-10UM(EoL) 12 MP Area Scan Camera, USB3, IMX304, Mono
| 4096 × 3000 | USB3.0, compatible with USB2.0 | 23.1 fps @ 4096 × 3000 | C-mount | - | Mono | $2,339.00Quote | Ships in 2-3 weeks | |
 MV-CH160-60GMHikrobot MV-CH160-60GM 16 MP Area Scan Camera, GigE
| 4000 × 4000 | - | 7.25 fps @ 4000 × 4000 | C-mount | 3.2 μm × 3.2 μm | Mono | $2,229.00Quote | Ships in 2-3 weeks | |
 MV-CH120-60GCHikrobot MV-CH120-60GC 12 MP Area Scan Camera, GigE, Color
| 4096 × 3000 | - | 9.5 fps @ 4096 × 3000 Bayer GB 8 | C-mount | 3.45 μm × 3.45 μm | Color | $1,959.00Quote | Ships in 2-3 weeks | |
|
MV-CH120-60GMHikrobot MV-CH120-60GM 12 MP Area Scan Camera, GigE, Mono
| 4096 × 3000 | - | 9.5 fps @ 4096 × 3000 Mono 8 | C-mount | 3.45 μm × 3.45 μm | Mono | $1,959.00Quote | Ships in 2-3 weeks | |
 MV-CH120-10GC(EoL)Hikrobot MV-CH120-10GC(EoL) 12 MP Area Scan Camera, GigE, IMX304, Color
| 4096 × 3000 | - | 9.4 fps @ 4096 × 3000 | C-mount | 3.45 μm × 3.45 μm | Color | $1,959.00Quote | Ships in 2-3 weeks | |
|
MV-CH120-10GM(EoL)Hikrobot MV-CH120-10GM(EoL) 12 MP Area Scan Camera, GigE, IMX304, Mono
| 4096 × 3000 | - | 9.4 fps @ 4096 × 3000 | C-mount | 3.45 μm × 3.45 μm | Mono | $1,959.00Quote | Ships in 2-3 weeks | |
 MV-CA017-10GCHikrobot MV-CA017-10GC 1.7 MP Area Scan Camera, GigE, IMX432, Color
| 1608 × 1104 | - | 68.5 fps @ 1608 × 1104 | C-mount | 9 μm × 9 μm | Color | $1,419.00Quote | Ships in 2-3 weeks |
