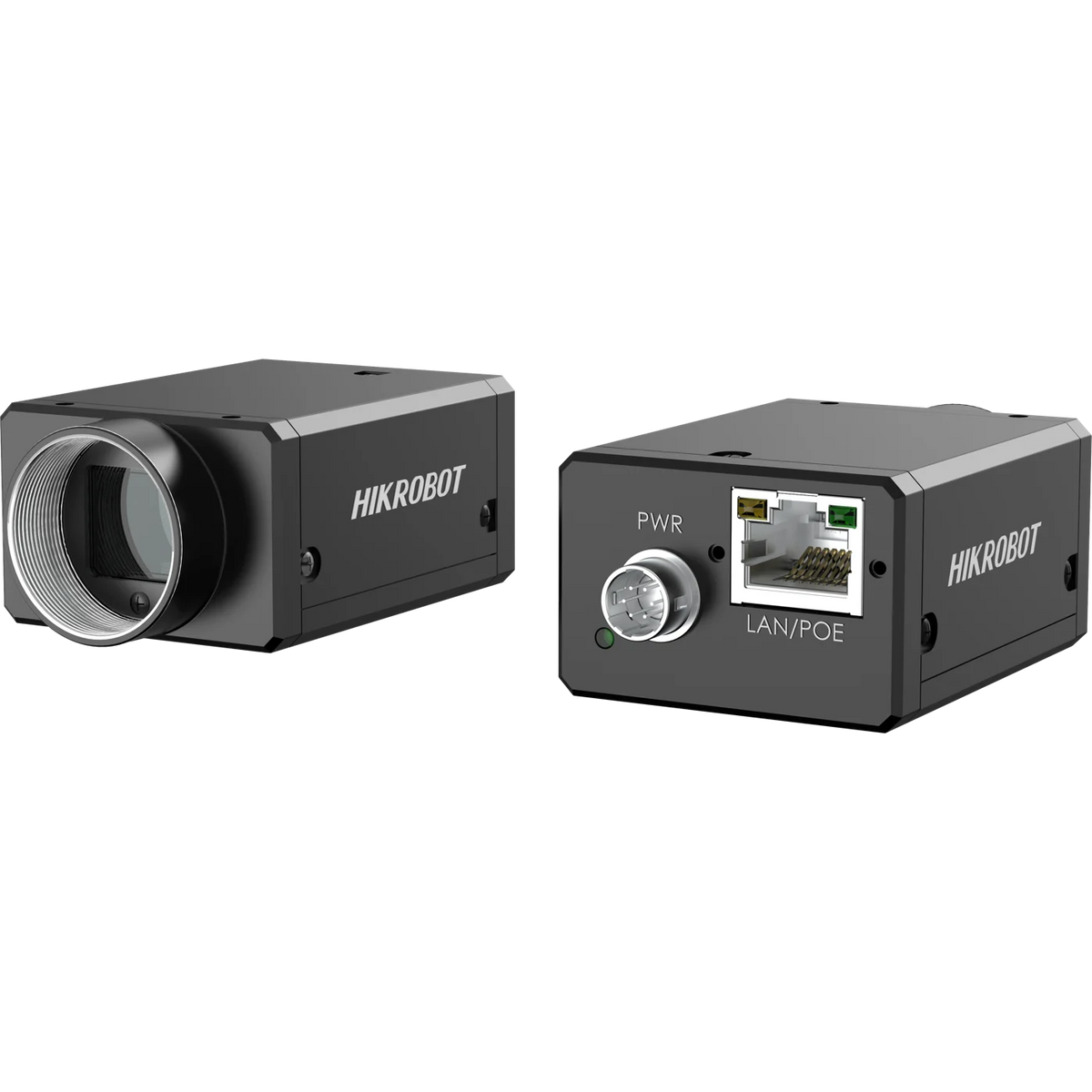

Hikrobot MV-CA017-10GM 1.7MP Area Scan Camera, GigE, IMX432, Mono

Area scan cameras

Hikrobot MV-CA017-10GC 1.7MP Area Scan Camera, GigE, IMX432, Color

Model MV-CA017-10GCHikrobot

Resolution1608 × 1104
SensorCMOS, global shutter
Speed68.5 fps @ 1608 × 1104
Lens mountC-mount
Mono / colourColor
Pixel size9 μm × 9 μm

$1,419.00

Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CA017-10GC 1.7MP Area Scan Camera, GigE, IMX432, Color. Supports auto or manual adjustment for gain, exposure time, LUT, Gamma correction, white balance, etc. Supports 2D noise reduction function.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CA017-10GC
Brand	Hikrobot
Compatibility	GigE Vision V2.0, GenICam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Sony® IMX432
Pixel size	9 μm × 9 μm
Sensor size	1.1"
Resolution	1608 × 1104
Max. frame rate	68.5 fps @ 1608 × 1104
Dynamic range	72.44 dB
SNR	40 dB
Gain	0 dB to 24 dB
Exposure time	UltraShort exposure mode: 1 μs to 5 μs; Standard exposure mode: 6 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Pixel format	Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Mono/color	Color

Interfaces and I/O

Data interface	Gigabit Ethernet, compatible with Fast Ethernet
Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 32/64-bit Linux

Electrical

Power supply	12 VDC, supports PoE
Power consumption	Typ. 4.8 W @ 12 VDC

Mechanical

Lens mount	C-mount
Dimension	29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
Weight	Approx. 100 g (0.22 lb.)
Shipping weight (estimated)	0.24 kg

Downloads

Features

Supports auto or manual adjustment for gain, exposure time, LUT, Gamma correction, white balance, etc.
Supports 2D noise reduction function.
Supports high sensitivity mode and high full well mode.
Adopts GigE interface and max. transmission distance of 100 meters without relay.
Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
