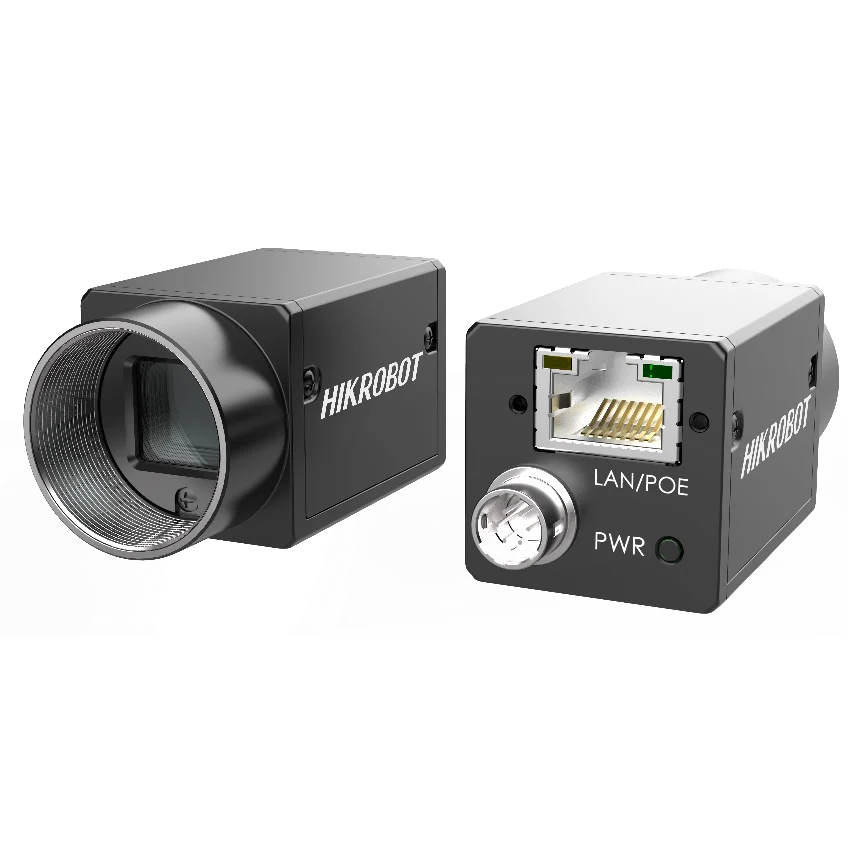

Hikrobot MV-CA013-A0GC 1.3MP Area Scan Camera, GigE, Color

Model MV-CA013-A0GCHikrobot

Resolution1280 × 1024
SensorCMOS, global shutter
Speed92.8 fps @ 1280 × 1024
Lens mountC-mount
Mono / colourColor
Pixel size4.8 μm

$389.00

Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CA013-A0GC 1.3MP Area Scan Camera, GigE, Color. Supports auto or manual adjustment of gain and exposure time, manual adjustment of LUT and Gamma correction, etc. Supports hardware trigger, software trigger and free run, etc.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CA013-A0GC
Brand	Hikrobot
Compatibility	GigE Vision V2.0, GenICam

Sensor and imaging

Sensor type	CMOS, global shutter
Pixel size	4.8 μm
Sensor size	1/2"
Resolution	1280 × 1024
Max. frame rate	92.8 fps @ 1280 × 1024
Dynamic range	54 dB
SNR	40.6 dB
Gain	0 dB to 16 dB
Exposure time	9 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Pixel format	Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV 422 (YUYV) Packed, YUV 422 Packed, RGB 8, BGR 8
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Mono/color	Color

Interfaces and I/O

Data interface	Gigabit Ethernet, compatible with Fast Ethernet
Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protection	IP30
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	Typ. 2.7 W@12 VDC

Mechanical

Lens mount	C-mount
Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 100 g (0.22 lb.)
Shipping weight (estimated)	0.24 kg

Downloads

Features

Supports auto or manual adjustment of gain and exposure time, manual adjustment of LUT and Gamma correction, etc.
Supports hardware trigger, software trigger and free run, etc.
Adopts GigE interface and max. transmission distance of 100 meters without relay.
Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
