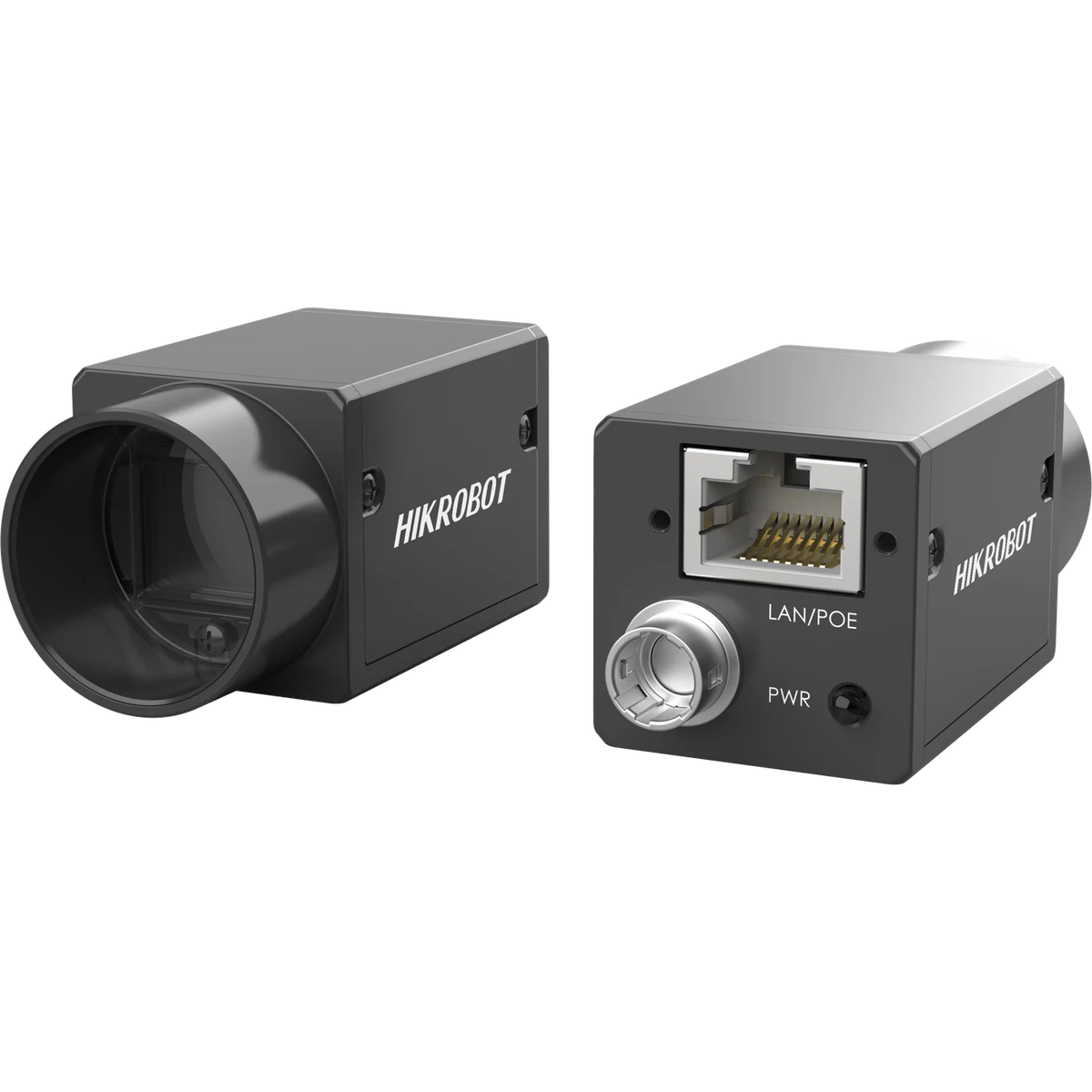

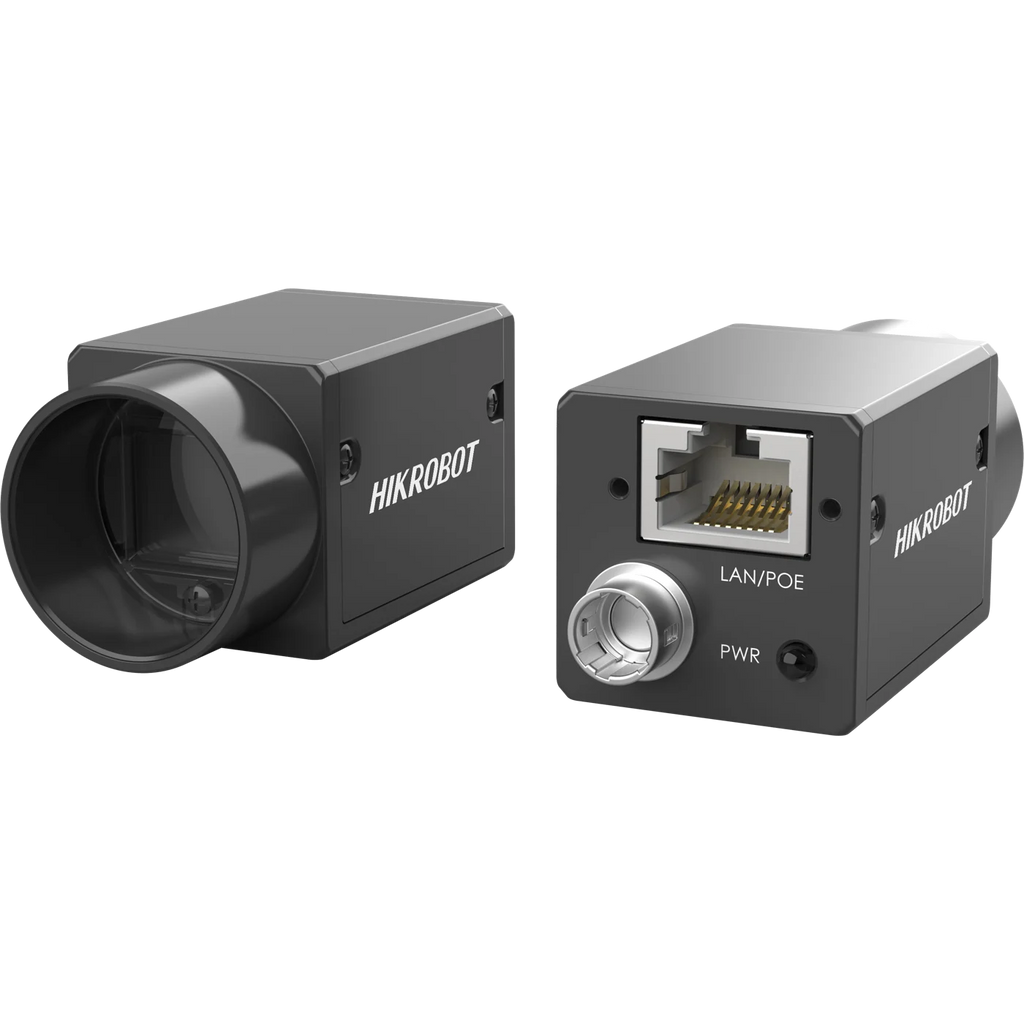

Hikrobot MV-CA016-10GC 1.6MP Area Scan Camera, GigE, IMX273, Color

Model MV-CA016-10GCHikrobot

Resolution1440 × 1080
SensorCMOS, global shutter
Speed78.2 fps @ 1440 × 1080
Lens mountC-mount
Mono / colourColor
Pixel size3.45 μm × 3.45 μm

$389.00

Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.2 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CA016-10GC 1.6MP Area Scan Camera, GigE, IMX273, Color. Adopts GigE interface and max. transmission distance of 100 meters without relay. Supports auto and manual adjustment for exposure control, LUT, Gamma correction, etc.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CA016-10GC
Brand	Hikrobot
Compatibility	GigE Vision V2.0, GenlCam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Sony® IMX273
Pixel size	3.45 μm × 3.45 μm
Sensor size	1/2.9"
Resolution	1440 × 1080
Max. frame rate	78.2 fps @ 1440 × 1080
Dynamic range	71.4 dB
SNR	41 dB
Gain	Gain 0 dB to 20 dB
Exposure time	1 μs to 10 sec
Exposure mode	Off/ Once /Continuous exposure mode
Pixel format	Mono8/10/12, Bayer RG 8/10/10p/12/12p; YUV 422 Packed, YUV422_YUYV_Packed, RGB8
Binning	Supports 1 × 1, 2 × 2
Decimation	Supports 1 × 1, 2 × 2
Reverse image	Supports horizontal and vertical reverse image output
Image buffer	128 MB
Mono/color	Color

Interfaces and I/O

Data interface	Gigabit Ethernet, compatible with Fast Ethernet
Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protection	IP 30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Certification	CE, RoHS

Computing

Operating system	32/64-bit Windows 7/10, 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	Typ. 3 W @ 12 VDC

Mechanical

Lens mount	C-mount
Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
Weight	Approx. 68 g (0.15 lb)
Shipping weight (estimated)	0.20 kg

Downloads

Features

Adopts GigE interface and max. transmission distance of 100 meters without relay.
Supports auto and manual adjustment for exposure control, LUT, Gamma correction, etc.
Up to 128 MB local memory for burst transmission and retransmission.
Supports hardware trigger, software trigger, etc.
Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on these protocol and standard.
