360° inspection lenses · 5 models · from $619.00

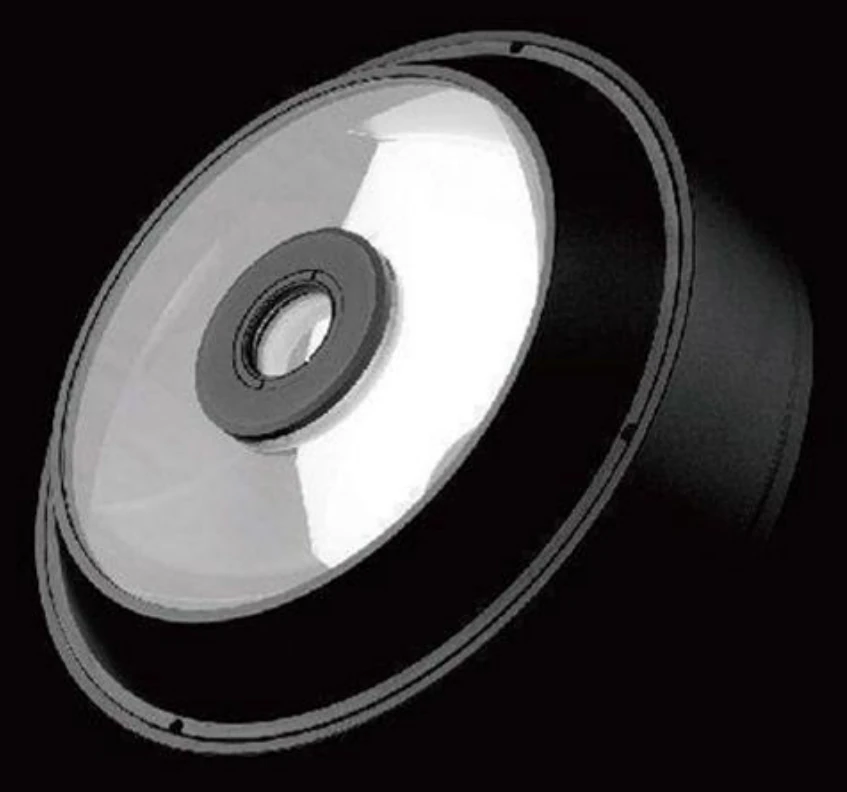

360° imaging system (outer surface)
The 360° imaging system (outer surface) is a range of 5 360° inspection lenses from LumaSpec Vision, from $619.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 1/1.8", C-Mount, 1/3", C-Mount, 2/3", C-Mount |
|---|---|
| Mount | C-mount |
| Image circle | Up to 8 mm |
| Working distance | Under 65 mm |
| Sensor format | 1/2.5" and smaller, 1/1.8" - 1/1.56", 2/3" |
Features
- Compact design and high resolution
- 360° side view imaging for small objects
- WD optional: 19mm-46.2mm, 19mm-45.4mm, 14mm-48.2mm, 9mm-45.4mm, 9mm-46.5mm
- Suitable for inspecting drug containers, plastic caps, preforms, bottlenecks, screws and other threaded objects
- Min. object diameter 4.5mm (outer surface)
Typical uses
- Bottle cap inspection
- Coil outer wall detection
- Medicine bottle detection
- Outer ring character detection
All 5 models in the 360° imaging system (outer surface)
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-RF3601A | 1/3", C-Mount | $619.00 | 2 in stock | View |
| LS-RF3602A | 1/1.8", C-Mount | $619.00 | 5 in stock | View |
| LS-RF3603A | 2/3", C-Mount | $619.00 | 2 in stock | View |
| LS-RF3604A | 1/1.8", C-Mount | $619.00 | 5 in stock | View |
| LS-RF3605A | 1/3", C-Mount | $619.00 | 3 in stock | View |
