Board-level cameras · 7 models · from $179.00
Binocular camera / module

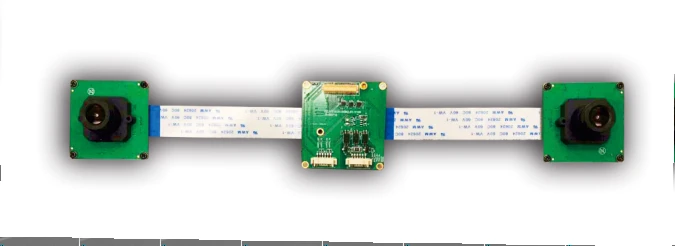

The Binocular camera / module is a range of 7 board-level cameras from LumaSpec Vision, from $179.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 0.3 MP, Colour/Mono, 0.3 MP, USB3, Colour/Mono, 1.2 MP, Colour/Mono, 1.3 MP, Colour/Mono, 1.3 MP, USB3, Colour/Mono |
|---|---|
| Interface | USB3 |
| Resolution | Up to 3 MP |
| Shutter | Global |
| Lens mount | M12 |
| Sensor format | 1/2.5" and smaller, 1/2" |
Features
- FPC flexible cable length can be freely changed, and the baseline can be flexibly adjusted
- Supports lossless grayscale and raw data format output, non-YUV format
- Sensor board size can be customized to match different structural requirements
- Continuous, soft trigger and hard trigger modes; binocular images synchronized automatically, synchronization error at microsecond level
- Special SDK and driver (non-UVC), supports Windows, Linux and ARM Linux, compatible with Apple Mac OS and the single camera product SDK
- 0.3MP to 65 million pixels, CMOS and CCD supported
- Supports Halcon, VisionPro, OpenCV and other visual software
- USB3.0 and GigE transmission interfaces optional, other interfaces can be customized
Typical uses
- 3D applications
All 7 models in the Binocular camera / module
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-BL-SU33GC/M2-T | 0.3 MP, USB3, Colour/Mono | $179.00 | 5 in stock | View |
| LS-BL-SU34GC/M2-T | 0.3 MP, USB3, Colour/Mono | $179.00 | 7 in stock | View |
| LS-BL-SU133GC/M2-T | 1.3 MP, USB3, Colour/Mono | $179.00 | 6 in stock | View |
| LS-BL-SU134GC/M2-T | 1.3 MP, USB3, Colour/Mono | $179.00 | 8 in stock | View |
| LS-BL-AU34GC/M2-T | 0.3 MP, Colour/Mono | $209.00 | 8 in stock | View |
| LS-BL-AU131GC/M2-T | 1.2 MP, Colour/Mono | $209.00 | 9 in stock | View |
| LS-BL-AU134GC/M2-T | 1.3 MP, Colour/Mono | $209.00 | 9 in stock | View |
