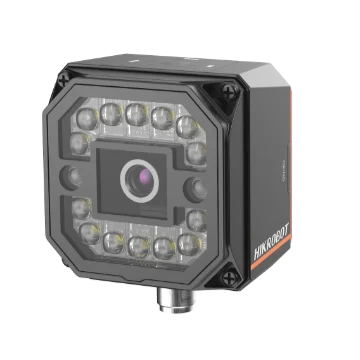

Hikrobot MV-SCC010M-16M-WBN V4 SCC vision sensor, 5MP, Mono, 16 mm lens, Motorized focus

Smart cameras & vision sensors

Hikrobot MV-SCC010M-08M-WBN V4 SCC vision sensor, 5MP, Mono, 8 mm lens, Motorized focus

Model MV-SCC010M-08M-WBN V4Hikrobot

Resolution2432 × 2048
SensorCMOS, global shutter
InterfaceFast Ethernet(100 Mbit/s)
Speed50 fps
Lens mountM12
Mono / colourMono

$1,989.00

Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.49 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-SCC010M-08M-WBN V4 SCC vision sensor, 5MP, Mono, 8 mm lens, Motorized focus. Embedded hardware platform for high-speed image processing High-precision positioning, measurement and recognition algorithms for counting, defect detection, presence checks and positioning

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-SCC010M-08M-WBN V4
Brand	Hikrobot
Vision tool	Measurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness average value, L2L angle, diameter measurement, line angle; Existence: Spot existence, edge existence, contour existence, pattern existence, circle existence, line existence, anomaly judge, existence detection; Count: Spot count, edge count, contour count, pattern count, learning-based count; Recognition: Multi-object count, code recognition, category recognition, classification registration, object registration, OCR, learning-based OCR, character horizontal stripe detection; Logic: Calculator, if module, logic judge, format output, condition judge, character comparison, combination judge; Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture; Deep learning: DL classification, DL object detection; Defect detection: Anomaly detection; Industry tools: OCR and defect detection
Solution capacity	Supports importing and exporting project, up to 32 projects can be stored
Lens cap	Transparent lens cap by default. Half-polarized or fully-polarized lens cap is optional.
Indicator	Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)

Optics

Focal length	8 mm

Sensor and imaging

Sensor type	CMOS, global shutter
Pixel size	3.4 μm × 3.4 μm
Sensor size	2/3"
Resolution	2432 × 2048
Max. frame rate	50 fps
Gain	0 dB ~ 24 dB
Exposure time	60 μs ~ 1 sec
Pixel format	Mono 8
Mono/color	Mono

Interfaces and I/O

Communication protocol	RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV
Data interface	Fast Ethernet(100 Mbit/s)
Digital I/O	17-pin M12 connector provides power, Ethernet, digital I/O, and serial port: Input signal × 2 (Line 0/1), output signal × 3 (Line 5/6/7), bi-directional I/O × 3 (Line 2/3/4), and external button input × 1. Output signal can be set as NPN or PNP.
Client software	SCMVS

Light

Light source	14 LED lamps, white light by default. Red, blue, and near infrared lights are optional

Environment and compliance

Ingress protection	IP67 (under proper installation of lens and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Vibration resistance	Meets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Shock resistance	Meets standard IEC 60068-2-27:2008.; Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
Certification	CE, KC

Electrical

Power supply	24 VDC
Power consumption	Typical power: 9.6 W @ 24 VDC; Max. power: 48 W @ 24 VDC

Mechanical

Lens mount	M12-mount, mechanical autofocus supported
Dimension	65.2 mm × 65.2 mm × 47 mm
Weight	Approx. 280 g (0.6 lb.)
Shipping weight (estimated)	0.49 kg

Downloads

Features

Embedded hardware platform for high-speed image processing
High-precision positioning, measurement and recognition algorithms for counting, defect detection, presence checks and positioning
Rich I/O interface supports multiple input and output signals
Comprehensive status indicators show device status in real time for easy setup and maintenance
Well-designed light ensures uniform brightness across the illuminated area
Supports RS-232, TCP, UDP, FTP, Modbus, PROFINET, EtherNet/IP and other communication modes
