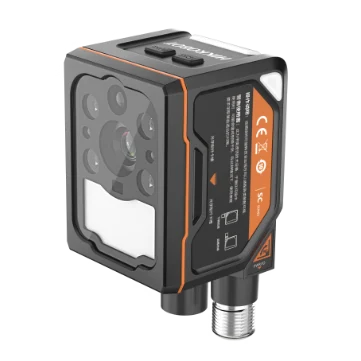

Hikrobot CT-SCB0139 5 MP color vision sensor

Smart cameras & vision sensors

Hikrobot HIK-S3000-BN 5 MP color vision sensor

Model HIK-S3000-BNHikrobot

Resolution2432 × 2048
SensorCMOS, global shutter
InterfaceFast Ethernet(100 Mbit/s)
Speed40 fps
Lens mountM12
Mono / colourColor

$2,359.00

Ships in 2-3 weeks

0.37 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot HIK-S3000-BN 5 MP color vision sensor. Embedded hardware platform for high-speed image processing High-precision positioning, measurement and recognition algorithms for counting, defect detection, presence checks and positioning

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	HIK-S3000-BN
Brand	Hikrobot
Vision tool	Measurement: point-point measurement, Point-line measurement, Contrast measurement, Grayscale area, Pitch measurement, Width measurement, Mean brightness, Line-line angle, Color measurement, Color area, Diameter measurement, Line angle; Presence: blob presence, Edge presence, Contour presence, Pattern presence, Circle presence, Line presence, Anomaly judgment, Presence inspection; Count: blob count, Edge count, Contour count, Pattern count, Learned count, Color counting; Recognition: multi-object counting, Code recognition, Color comparison, Color recognition, Type recognition, Registration classification, Registration object detection, Character recognition; Logic: variable calculation, Branch control, Logic judgment, Data formatting, Condition judgment, Character comparison, Combined judgment; Positioning: calibration conversion, Single-point alignment, Single-point deviation correction, Single-point picking, Unit conversion, Position correction; Deep learning: classification, Object detection; Defect tools: anomaly detection
Solution capacity	Supports importing and exporting project, up to 32 projects can be stored
Lens cap	Polarized + diffuser + full-transparent lens cap
Indicator	360° visual indicator

Optics

Focal length	16 mm

Sensor and imaging

Sensor type	CMOS, global shutter
Pixel size	3.45 μm × 3.45 μm
Sensor size	1/1.45"
Resolution	2432 × 2048
Max. frame rate	40 fps
Dynamic range	77.8 dB
SNR	43 dB
Gain	0 dB ~ 15 dB
Exposure time	6 μs ~ 1 sec
Pixel format	RGB 8, Mono 8
Mono/color	Color
Aiming system	Orange LED

Interfaces and I/O

Communication protocol	RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV
Data interface	Fast Ethernet(100 Mbit/s)
Digital I/O	12-pin M12 connector for power and I/O: 3 opto-isolated inputs (LINE0/1/2 input), 3 opto-isolated outputs (LINE3/4/5 output), 1× RS-232 interface; Device trigger via top button supported
Client software	SCMVS

Light

Light source	White spot light source. Red/blue/IR point light source is optional

Environment and compliance

Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, KC

Electrical

Power supply	24 VDC
Power consumption	6.5 W@24 VDC

Mechanical

Lens mount	M12-mount, mechanical autofocus supported

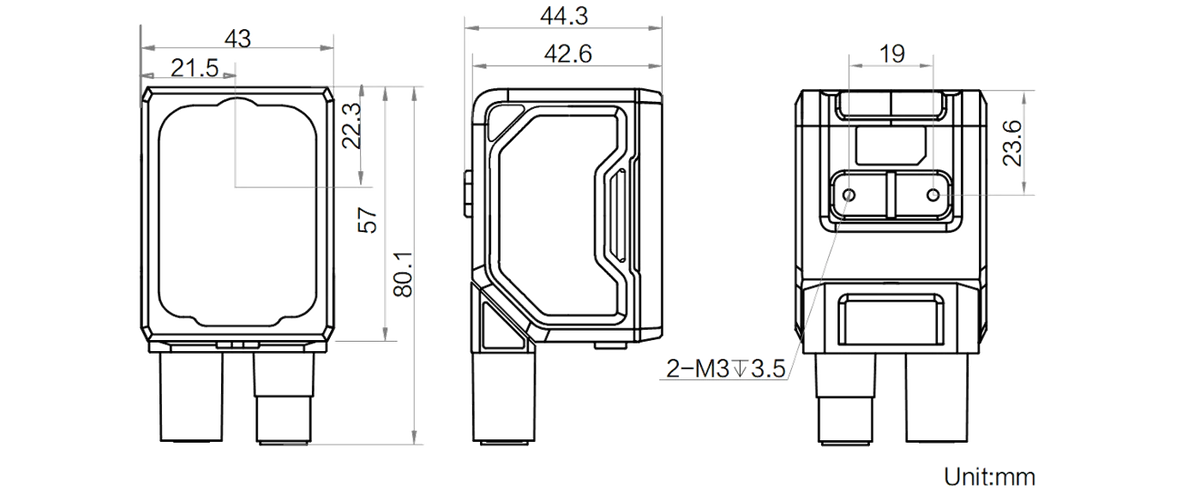

Dimension	Straight: 80.1 mm × 43 mm × 44.3 mm; Right-angle: 58.5 mm × 43 mm × 65.4 mm
Weight	Approx. 190 g (0.4 lb.)
Shipping weight (estimated)	0.37 kg

Downloads

Datasheet (PDF, Chinese)HIK-S3000-BN · 968 KB

Features

Embedded hardware platform for high-speed image processing
High-precision positioning, measurement and recognition algorithms for counting, defect detection, presence checks and positioning
Rich I/O interface supports multiple input and output signals
360° visible body indicator shows device status in real time for easy setup and maintenance
Rotatable tail cable design adapts flexibly to tight spaces
Polarized, diffuse and clear multi-mode illumination for outstanding environmental adaptability
IP67 protection for harsh industrial environments
Supports RS-232, TCP, UDP, FTP, Modbus, PROFINET, EtherNet/IP and other communication modes
