Hikrobot MV-SC685-08M-WBN Vision sensor

Model MV-SC685-08M-WBNHikrobot

Resolution2432 × 2048
SensorCMOS, global shutter
InterfaceFast Ethernet(100Mbit/s)
Speed40 fps
Lens mountM12
Mono / colourMono

$3,449.00

List price

Ships in 2-3 weeks

0.37 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineer Browse Smart cameras & vision sensors

MV-SC685-08M-WBN: resolution 2432 x 2048; sensor type CMOS, global shutter; sensor size 1/1.45"; max. frame rate 40 fps; dynamic range 77.8 dB.

Hikrobot MV-SC685-08M-WBN Vision sensor. Embedded hardware platform for high-speed image processing High-precision positioning, measurement and recognition algorithms for counting, defect detection, presence checks and positioning

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CEKC

Specifications

General

Model	MV-SC685-08M-WBN
Brand	Hikrobot
Vision tool	Count: blob count, Edge count, Pattern count, Contour count; Defect: anomaly detection; Presence: circle presence, Line presence, Blob presence, Edge presence, Pattern presence, Contour presence; Positioning: calibration, Positioning, Position correction; Logic: branch control, Condition judgment, Logic judgment, Combined judgment, Character comparison, Variable calculation; Measurement: line-line angle, Diameter measurement, Mean brightness, Contrast measurement, Width measurement, Point-line measurement, Grayscale area, Line angle, Pitch measurement; Recognition: OCR, Code recognition, Registration classification, Registered object detection; Deep learning: object detection, Classification
Solution capacity	Supports importing and exporting project, up to 32 projects can be stored
Lens cap	Polarized + diffuser + full-transparent lens cap
Indicator	360° visual indicator

Optics

Focal length	8 mm

Sensor and imaging

Sensor type	CMOS, global shutter
Pixel size	3.45 μm × 3.45 μm
Sensor size	1/1.45"
Resolution	2432 × 2048
Max. frame rate	40 fps
Dynamic range	77.8 dB
SNR	43 dB
Gain	0 dB ~ 15 dB
Exposure time	6 μs ~ 1 sec
Pixel format	Mono 8
Mono/color	Mono
Aiming system	Orange LED

Interfaces and I/O

Communication protocol	RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV
Data interface	Fast Ethernet(100Mbit/s)
Digital I/O	12-pin M12 connector for power and I/O: 3 opto-isolated inputs (LINE0/1/2), 3 opto-isolated outputs (LINE3/4/5), 1 RS-232 port; Triggering via top button supported
Client software	SCMVS

Light

Light source	White spot light source. Red/blue/IR point light source is optional

Environment and compliance

Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, KC

Electrical

Power supply	24 VDC
Power consumption	6.5 W @ 24 VDC

Mechanical

Lens mount	M12-mount, mechanical autofocus supported

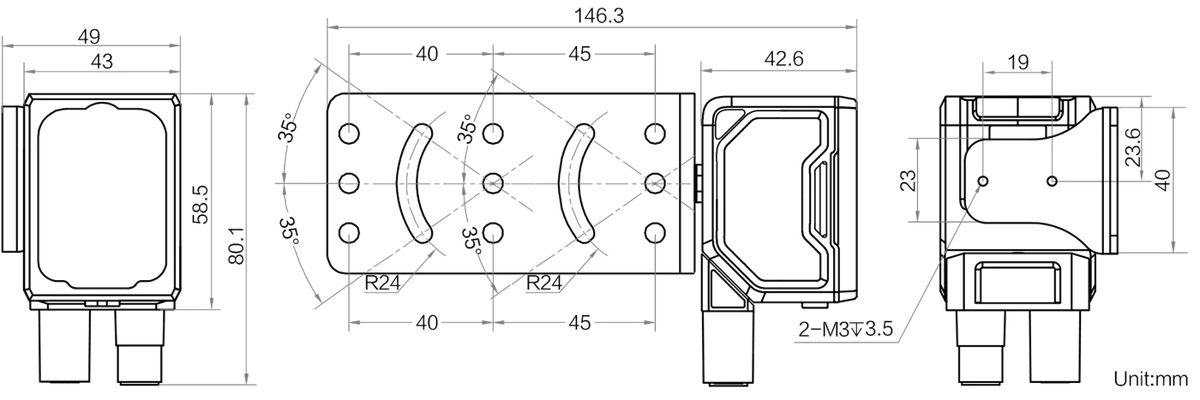

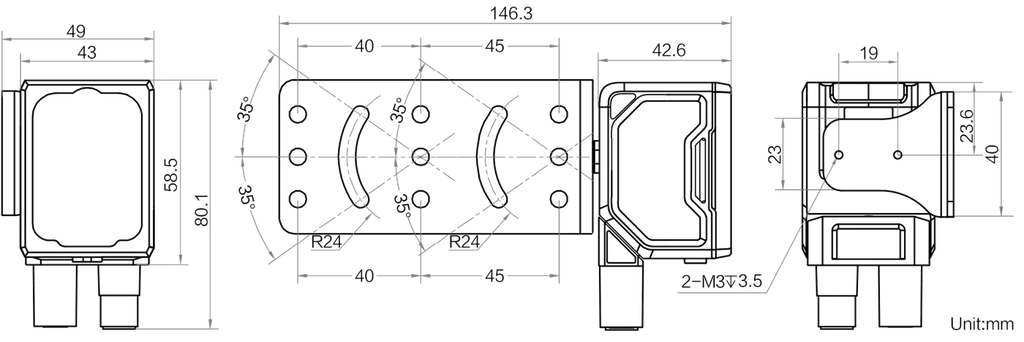

Dimension	Straight: 80.1 mm × 43 mm × 44.3 mm; Right-angle: 58.5 mm × 43 mm × 65.4 mm
Weight	Approx. 190 g (0.4 lb.)
Shipping weight (estimated)	0.37 kg

Downloads

Datasheet (PDF, Chinese)MV-SC685-08M-WBN · 769 KB

Features

Frame rate up to 40 fps
77.8 dB dynamic range
Embedded hardware platform for high-speed image processing
High-precision positioning, measurement and recognition algorithms for counting, defect detection, presence checks and positioning
Rich I/O interface supports multiple input and output signals
360° visible body indicator shows device status in real time for easy setup and maintenance
Rotatable tail cable design adapts flexibly to tight spaces
Three-way polarized, diffuse and clear illumination for outstanding environmental adaptability
IP67 protection for harsh industrial environments
Supports RS-232, TCP, UDP, FTP, Modbus, PROFINET, EtherNet/IP and other communication modes

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

The MV-SC685-08M-WBN at a glance

The numbers that set this model apart, taken from its own printed specifications.

Resolution2432 × 2048 px

Max. frame rate40 fps

Focal length8 mm

Ingress protectionIP67

Power consumption6.5 Wat 24 V DC

ShutterGlobal
