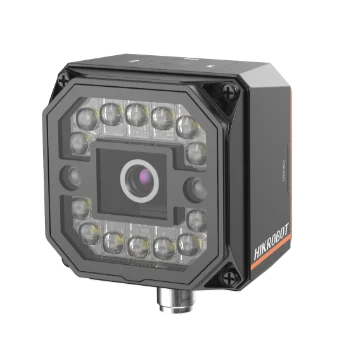

Hikrobot HIK-YJ7001 Vision sensor
  • Hikrobot HIK-YJ7001 Vision sensor

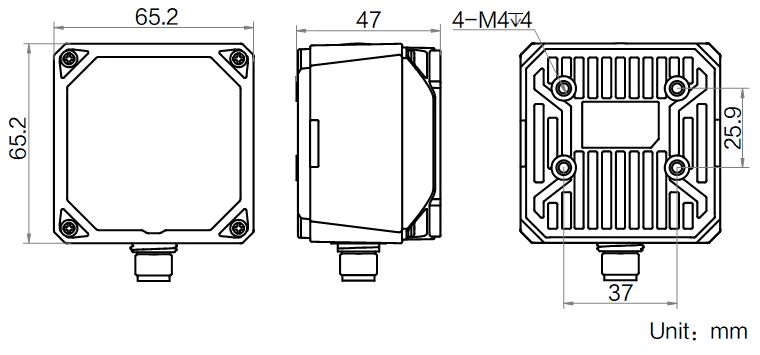

  • HT-FN4127D-06M-WBH dimensions (mm)

Smart cameras & vision sensors

Hikrobot SC016M-12M-01 1.6 MP 1/2.9" vision sensor

Model SC016M-12M-01Hikrobot

  • Resolution1408 × 1024
  • SensorCMOS, global shutter
  • InterfaceFast Ethernet(100Mbit/s)
  • Speed60 fps
  • Lens mountM12
  • Mono / colourMono
$1,989.00

Ships in 2-3 weeks

0.49 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot SC016M-12M-01 1.6 MP 1/2.9" vision sensor. Embedded hardware platform for high-speed image processing High-precision positioning, measurement and recognition algorithms for counting, defect detection, presence checks and positioning

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelSC016M-12M-01
BrandHikrobot
Vision toolMeasurement: point-point measurement, Point-line measurement, Contrast measurement, Grayscale area, Pitch measurement, Width measurement, Mean brightness, Line-line angle, Diameter measurement, Line angle; Presence: blob presence, Edge presence, Contour presence, Pattern presence, Circle presence, Line presence, Anomaly judgment, Presence inspection; Count: blob count, Edge count, Contour count, Pattern count, Learned counting; Recognition: multi-object counting, Code recognition, Type recognition, Registration classification, Registration object detection, Character recognition; Logic: variable calculation, Branch control, Logic judgment, Data formatting, Condition judgment, Character comparison, Combined judgment; Positioning: calibration conversion, Single-point alignment, Single-point deviation correction, Single-point picking, Unit conversion, Position correction; Deep learning: classification, Object detection; Defect tools: anomaly detection
Solution capacitySolution import/export supported, Up to 32 solutions stored, 40 modules
Lens capTransparent lens cap by default. Half-polarized or fully-polarized lens cap is optional.
IndicatorPower indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)

Optics

Focal length12 mm

Sensor and imaging

Sensor typeCMOS, global shutter
Pixel size3.45 μm × 3.45 μm
Sensor size1/2.9"
Resolution1408 × 1024
Max. frame rate60 fps
Dynamic range71.4 dB
SNR41 dB
Gain0~15 dB
Exposure time16 μs~1 sec
Pixel formatMono 8
Mono/colorMono

Interfaces and I/O

Communication protocolRS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP
Data interfaceFast Ethernet(100Mbit/s)
Digital I/O17-pin M12 connector for power, Ethernet, Digital I/O, Serial port function: 2 input signals (Line0/1), 3 output signals (Line5/6/7), 3 configurable I/O (Line2/3/4), 1 external button input (BUTTON); Output signal type configurable as NPN or PNP
Client softwareSCMVS

Light

Light source14 LED lamps, white light by default. Red, blue, and near infrared lights are optional

Environment and compliance

Ingress protectionIP67 (under proper installation of lens and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, KC

Electrical

Power supply24 VDC
Max. power consumption48 W@24 VDC

Mechanical

Lens mountM12-mount, mechanical autofocus supported
Dimension65.2 mm × 65.2 mm × 47 mm
WeightApprox. 280 g (0.6 lb.)
Shipping weight (estimated)0.49 kg
