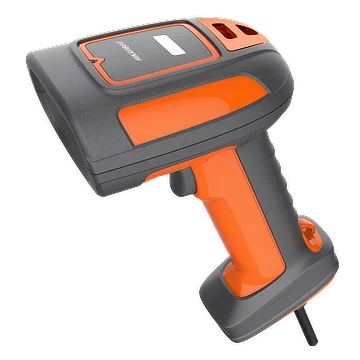

Hikrobot MV-IDH7000P/10SR/07RN/U 1MP 7mm-SR USB Industrial Handheld Code Reader

Model MV-IDH7000P/10SR/07RN/UHikrobot

Resolution1280 × 800
SensorCMOS
InterfaceUSB 2.0, DC terminal, RS-232
Focal length6.7 mm

$729.00

Ships in 2-3 weeks

0.74 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineer Browse Handheld code readers

MV-IDH7000P/10SR/07RN/U: resolution 1280 x 800; sensor type CMOS; focal length 6.7 mm; field of view Horizontal 31°, vertical 20°; data interface USB 2.0, DC terminal, RS-232.

Hikrobot MV-IDH7000P/10SR/07RN/U 1MP 7mm-SR USB Industrial Handheld Code Reader. Built-in code reading algorithm for decoding different types of codes. Provides good robustness to read codes with spots, defects and low contrast ratio.

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CEKC

Specifications

General

Model	MV-IDH7000P/10SR/07RN/U
Brand	Hikrobot
Min. accuracy	3 mil
Detection angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol contrast	20%
Laser safety class	Laser 2

Optics

Depth of field	Code 39 (5 mil): 30 mm to 200 mm; Code 128 (3 mil): 55 mm to 110 mm; Code 128 (20 mil): 56 mm to 660 mm; Data Matrix (10 mil): 20 mm to 220 mm; QR Code (10 mil): 20 mm to 220 mm; QR Code (20 mil): 10 mm to 450 mm
Field of view	Horizontal 31°, vertical 20°
Focal length	6.7 mm

Sensor and imaging

Symbologies	1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE; 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, Han Xin; Stacked code: PDF417
Sensor type	CMOS
Resolution	1280 × 800
Aiming system	Cross laser aiming

Interfaces and I/O

Communication protocol	SmartSDK, USB (HID/CDC), Serial
Data interface	USB 2.0, DC terminal, RS-232
Client software	IDMVS

Light

Ambient illumination	0 lux to 100000 lux
Light source	Direct lighting: white LED; Diffused reflection lighting: red LED
Wavelength	650 nm

Environment and compliance

Ingress protection	IP65
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, KC

Electrical

Power supply	USB 2.0: 5 VDC; DC terminal: 12 VDC
Current consumption	USB 2.0: 0.9 A (max.), 0.5 A (typical); DC terminal: 0.5 A (max.), 0.28 A (typical)
Maximum power	1 mW

Mechanical

Dimension	73.4 mm × 104 mm × 229.5 mm (2.9" × 4.1" × 9.0")
Weight	Approx. 460 g (1.0 lb.)
Drop height	2.0 m
Pulse width	8 ms
Shipping weight (estimated)	0.74 kg

Downloads

Features

CMOS sensor
6.7 mm lens
Built-in code reading algorithm for decoding different types of codes.
Provides good robustness to read codes with spots, defects and low contrast ratio.
Supports continuous code reading, batch code reading for improving code reading efficiency.
Adopts illumination system to provide direct lighting and diffused reflection lighting.
Easy to replace components.
IP65 and drop height of 2.0 m.
