Handheld code readers

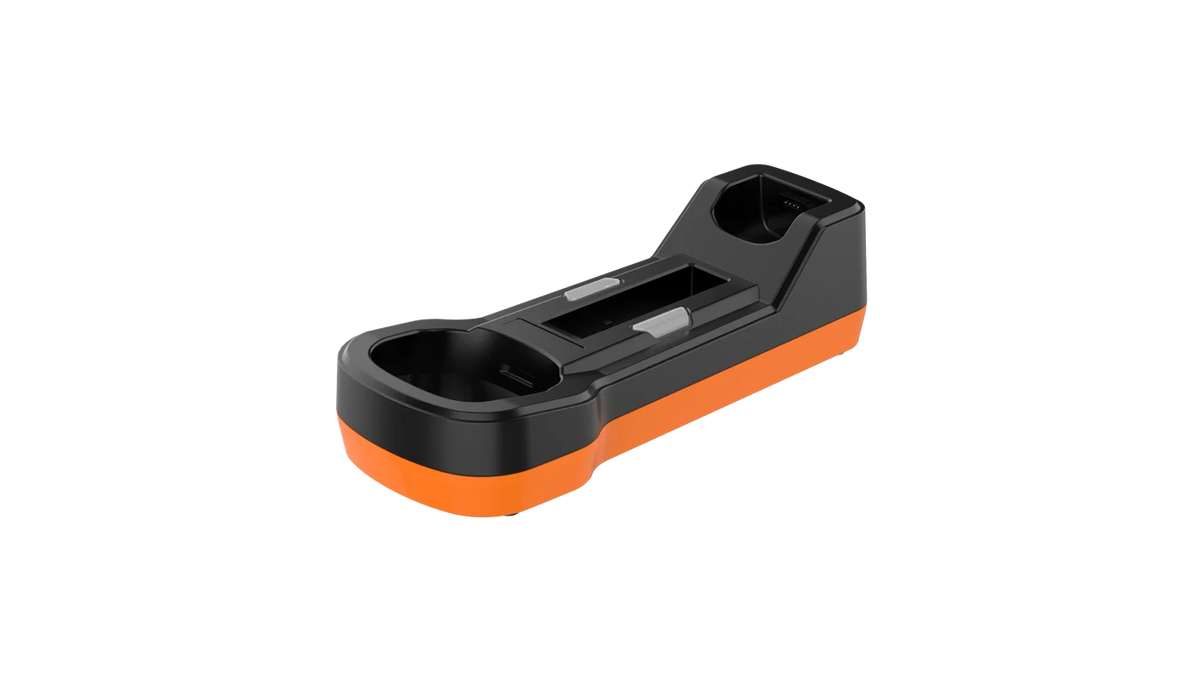

Hikrobot MV-IDH7000B/SBASE/U H70 series USB smart handheld code reader base
Model MV-IDH7000B/SBASE/UHikrobot
- InterfaceUSB 2.0, DC terminal2
- ConnectionWired
- Communication protocolSmartSDK, USB(HID/CDC), Bluetooth
- Dimension248.4 mm × 106.3mm × 69.4 mm
$869.00
Ships in 2-3 weeks
0.63 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-IDH7000B/SBASE/U H70 series USB smart handheld code reader base. Bluetooth 5.0 wireless for more efficient, lightweight operation Flexible charging: charge the battery or the device
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-IDH7000B/SBASE/U |
|---|---|
| Brand | Hikrobot |
| Charging time | 4 h (adapter charging); 8 h (USB charging) |
Interfaces and I/O
| Communication protocol | SmartSDK, USB(HID/CDC), Bluetooth |
|---|---|
| Data interface | USB 2.0, DC terminal2 |
Environment and compliance
| Ingress protection | IP40 |
|---|---|
| Humidity | 20% RH to 95% RH (no condensation) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F); Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
Electrical
| Power supply | 5 VDC(USB); 12 VDC (DC terminal) |
|---|---|
| Current consumption | USB 2.0: 1.5 A (max.), 0.14 A (during standby); DC terminal: 0.7 A (max.), 0.06 A (during standby) |
Mechanical

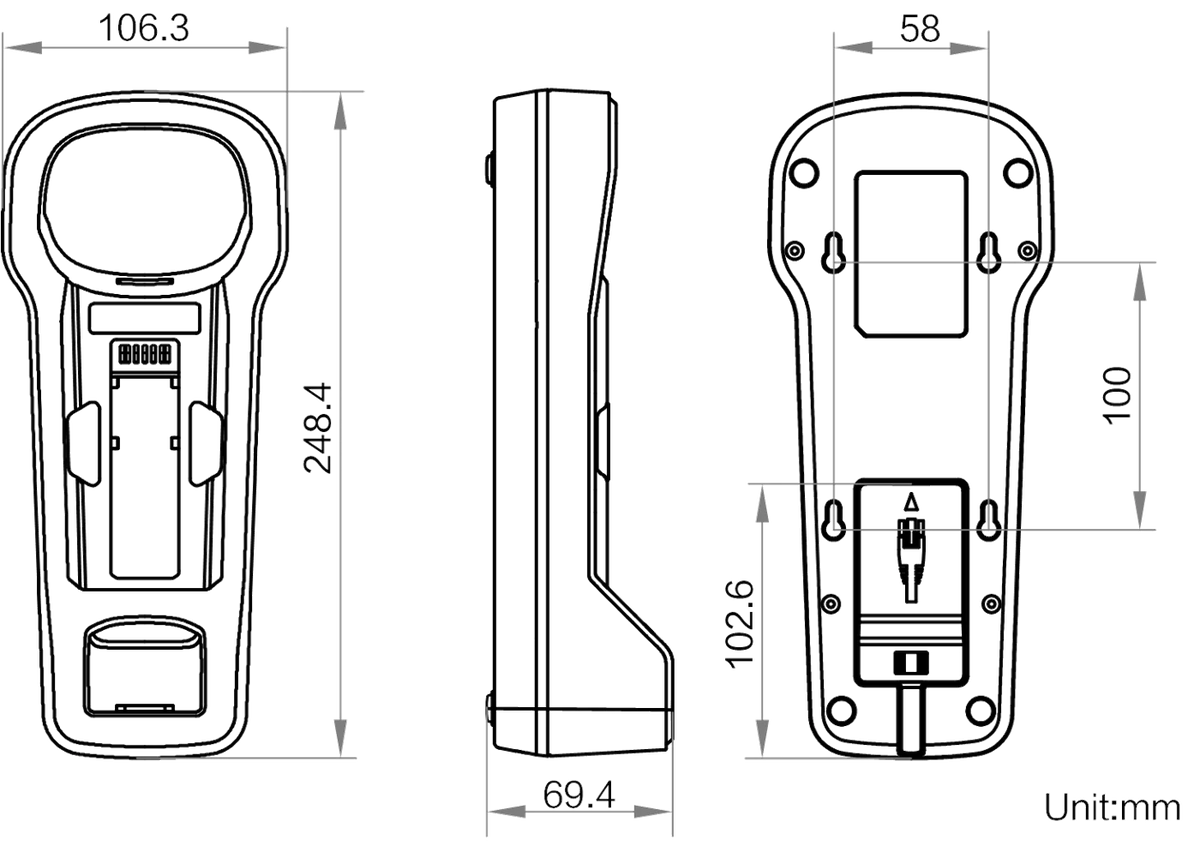

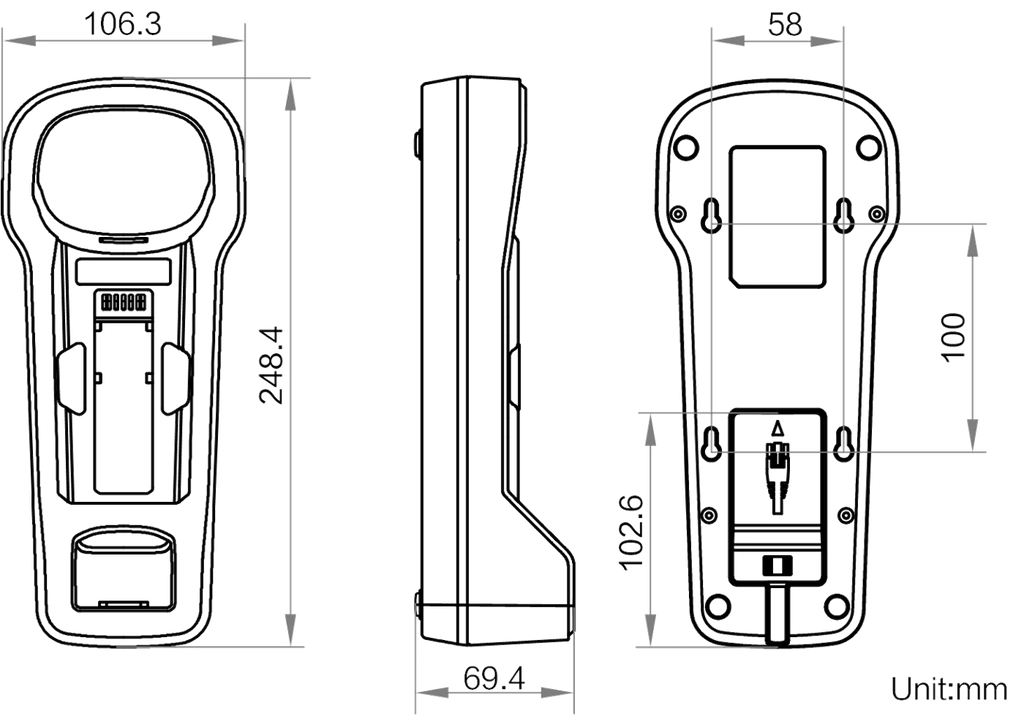

| Dimension | 248.4 mm × 106.3mm × 69.4 mm |
|---|---|
| Weight | Approx. 380 g |
| Shipping weight (estimated) | 0.63 kg |
