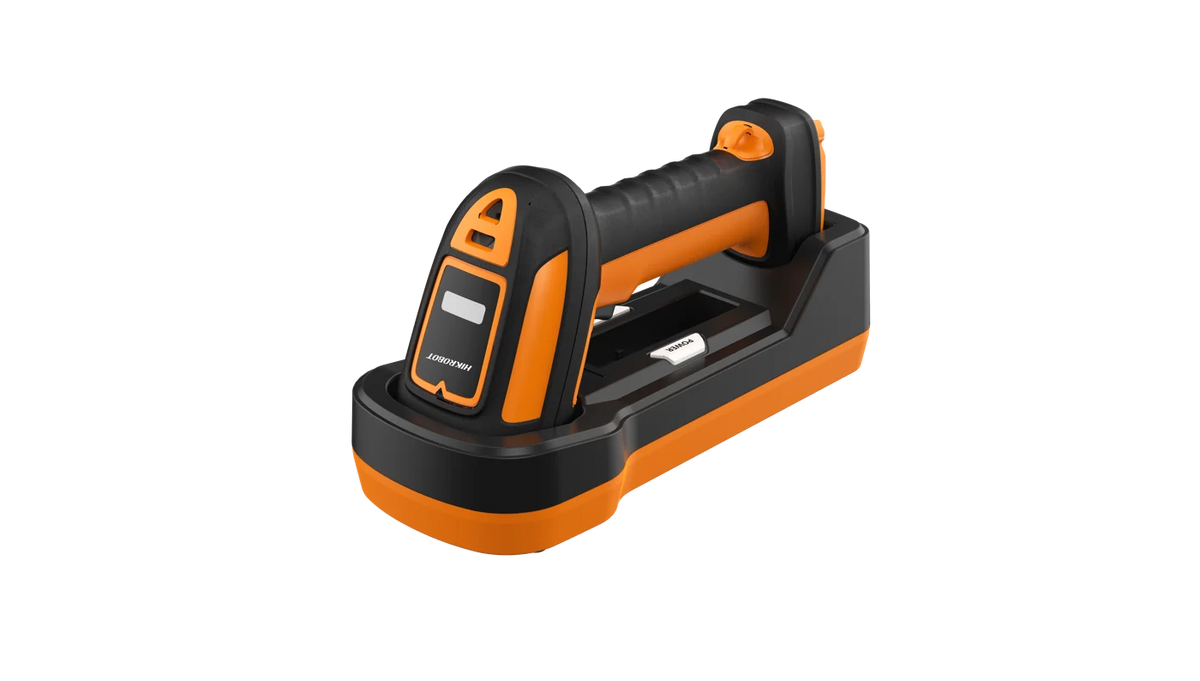

Hikrobot MV-IDH7000B/10SR/07RN/LS Wireless Industrial Handheld Code Reader (LAN Base)

Handheld code readers

Hikrobot MV-IDH7000B/10SR/07RN/US Wireless Industrial Handheld Code Reader (USB Base)

Model MV-IDH7000B/10SR/07RN/USHikrobot

Resolution1280 × 800
SensorCMOS
InterfaceUSB 2.0, RS-232, DC terminal3
Focal length6.7 mm

$869.00

Ships in 2-3 weeks

0.67 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-IDH7000B/10SR/07RN/US Wireless Industrial Handheld Code Reader. Built-in code reading algorithm for decoding different types of 1D and 2D codes. Provides good robustness to read codes with spots, defects and low contrast ratio.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-IDH7000B/10SR/07RN/US
Brand	Hikrobot
Min. accuracy	3 mil
Detection angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol contrast	20%
Battery	3150 mAh
Charging time	Shutdown mode: USB 3.0 (5 V, 1 A): 4 h, 12 VDC (12 V, 2 A): 3.5 h
Endurance	13 h (interval scanning, once in 2 seconds)
Prompt	LED indicator, buzzer, vibrator
Laser safety class	Laser 2
Charging time (smart base)	Adapter: 4 h, USB: 8 h

Optics

Depth of field	Code 39 (5 mil): 30 mm to 200 mm; Code 128 (3 mil): 55 mm to 110 mm; Code 128 (20 mil): 56 mm to 660 mm; Data Matrix (10 mil): 20 mm to 220 mm; QR Code (10 mil): 20 mm to 220 mm; QR Code (20 mil): 10 mm to 450 mm
Field of view	Horizontal 31°, vertical 20°
Focal length	6.7 mm

Sensor and imaging

Symbologies	1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE; 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, Han Xin; Stacked code: PDF417
Sensor type	CMOS
Resolution	1280 × 800
Aiming system	Cross laser aiming

Interfaces and I/O

Communication mode	Bluetooth BT 5.0, BLE
Wireless range	100 m (open range)
Client software	IDMVS
Communication protocol	SmartSDK, USB (HID/CDC), Bluetooth
Data interface	USB 2.0, RS-232, DC terminal3

Light

Ambient illumination	0 lux to 100000 lux
Light source	Direct lighting: white LED; Diffused reflection lighting: red LED
Wavelength	650 nm

Environment and compliance

Ingress protection	IP65
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F); Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, KC
Ingress protection (smart base)	IP40
Humidity (smart base)	20% RH to 95% RH (no condensation)

Electrical

Maximum power	1 mW
Power supply	USB: 5 VDC; DC terminal: 12 VDC
Current consumption	USB 2.0: 1.5 A (max.), 0.14 A (during standby); DC terminal: 0.7 A (max.), 0.06 A (during standby)

Mechanical

Dimension	73.4 mm × 104 mm × 215.2 mm (2.9" × 4.1" × 8.5")
Weight	Approx. 410 g (0.9 lb.)
Drop height	2.0 m
Pulse width	8 ms
Shipping weight (estimated)	0.67 kg

Downloads

Features

Built-in code reading algorithm for decoding different types of 1D and 2D codes.
Provides good robustness to read codes with spots, defects and low contrast ratio.
Adopts Bluetooth 5.0 wireless technology to provide convenient and efficient operations.
With smart bases, parameter configuration and device management via IDMVS client software are supported.
Adopts 3150 mAh battery to provide long battery life.
Adopts illumination system to provide direct lighting and diffused reflection lighting.
Supports IP65 and drop height of 2.0 m.
