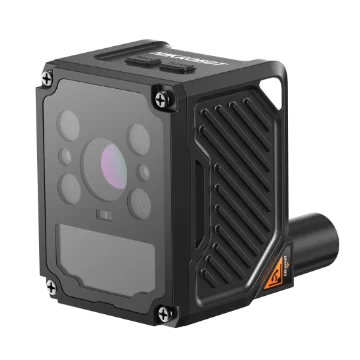

Hikrobot MV-IDCR012X-16MRH Distribution model, 6 MP resolution, 16 mm focal length, Red light, Semi-polarized industrial code reader

Model MV-IDCR012X-16MRHHikrobot

Resolution3200 × 1920
SensorCMOS, rolling shutter
InterfaceFast Ethernet(100 Mbit/s)
Speed20 fps
Lens mountM12
Mono / colourMono

$719.00

List price

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.36 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineer Browse Fixed code readers

MV-IDCR012X-16MRH: resolution 3200 x 1920; sensor type CMOS, rolling shutter; max. frame rate 20 fps; focal length 16 mm.

Hikrobot MV-IDCR012X-16MRH Distribution model, 6 MP resolution, 16 mm focal length, Autofocus, Red light, Semi-polarized industrial code reader. Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions Carefully selected sensor for high-speed capture of high-quality images

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

Model	MV-IDCR012X-16MRH
Brand	Hikrobot
Lens cap	Clear + polarized, Clear optional, Polarizing lens cover
Indicator	Device body indicator, reading result indicator

Optics

Focal length	16 mm

Sensor and imaging

Symbologies	1D code: Code 39, Code 93, Code 128 (incl. GS1-128), CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode; 2D code: QR Code (incl. GS1-QR), Data Matrix (incl. GS1-DM), MicroQR, AZTEC, HanXin, etc.; Stacked code: PDF417, MicroPDF417
Max. frame rate	20 fps
Max. reading speed	36 codes/sec
Sensor type	CMOS, rolling shutter
Pixel size	2 μm × 2 μm
Sensor size	1/2.4”
Resolution	3200 × 1920
Exposure time	540 μs ~ 200 ms
Gain	0 dB ~ 40 dB
Mono/color	Mono
Aiming system	Red LED

Interfaces and I/O

Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, Ethernet/IP, ModBus, UDP, FINS
Data interface	Fast Ethernet(100 Mbit/s)
Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1.; Triggering the device is supported via pressing the top button.
Client software	IDMVS

Light

Light source	Red spot light, Spot light: white/blue/IR optional

Environment and compliance

Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Electrical

Power supply	12 ~ 24 VDC
Power consumption	Avg. power: 5 W @ 24 VDC (built-in light on); Max. power: 19 W @ 24 VDC (built-in light on)

Mechanical

Lens mount	M12-mount, mechanical focus

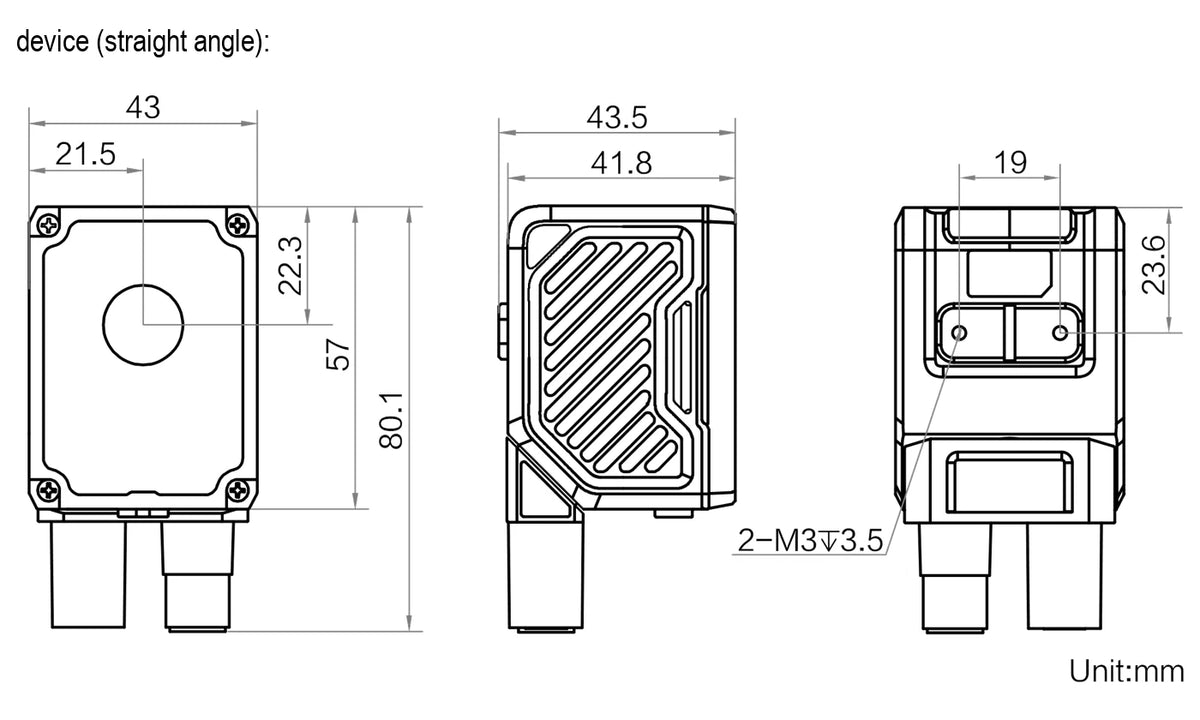

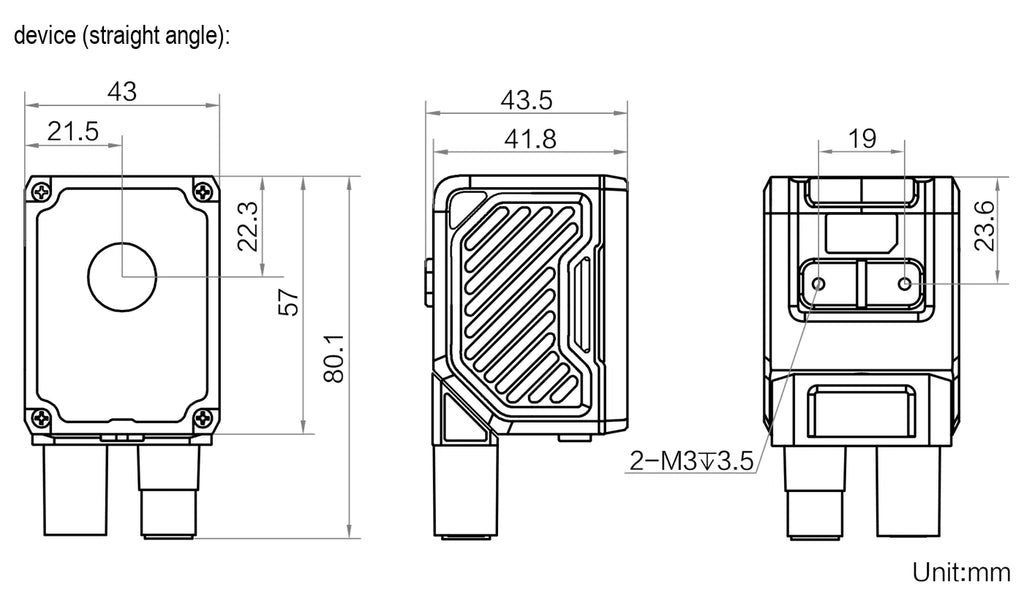

Dimension	Straight angle: 80.1 mm × 43 mm × 43.5 mm (3.2" × 1.7" × 1.7"); Right angle: 58.5 mm × 43 mm × 64.6 mm (2.3" × 1.7" × 2.5")
Weight	Approx. 185 g
Shipping weight (estimated)	0.36 kg

Downloads

Features

Frame rate up to 20 fps
Exposure time 540 µs to 200 ms
Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
Carefully selected sensor for high-speed capture of high-quality images
Extremely easy to use: one-click auto-tuning
Top and side status indicators plus projected light: code-reading status visible from every side
Rotatable tail cable design adapts flexibly to tight spaces
Polarized and clear multi-mode illumination for outstanding environmental adaptability
Rich I/O interface for multiple input and output signals
IP67 protection for harsh industrial environments

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

The MV-IDCR012X-16MRH at a glance

The numbers that set this model apart, taken from its own printed specifications.

Resolution3200 × 1920 px

Max. frame rate20 fps

Max. reading speed36 codes/s

Focal length16 mm

Ingress protectionIP67

Power consumption5 Wavg. at 24 V DC; max. 19 W
