Hikrobot ID-EJH33-06M-WBN 1.3 MP smart code reader

Model ID-EJH33-06M-WBNHikrobot

Resolution1280 × 1024
SensorCMOS, global shutter
InterfaceFast Ethernet (100 Mbit/s)
Speed60 fps
Lens mountM12
Mono / colourMono

$719.00

Ships in 2-3 weeks

0.49 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot ID-EJH33-06M-WBN 1.3 MP smart code reader. Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions Single cable provides a rich I/O interface for multiple input and output signals

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	ID-EJH33-06M-WBN
Brand	Hikrobot
Lens cap	Semi-polarizing lens cover, Clear and full-polarizing lens covers optional
Indicator	Power indicator PWR, Network indicator LNK, Status indicator STS, Result indicator OK/NG

Optics

Focal length	6 mm

Sensor and imaging

Symbologies	1D code: Code39, Code93, Code128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, Matrix; 2 of 5, Matrix 25, MSl, China Post, Code 11, Industrial 25, etc.; 2D code: QR Code, Data Matrix, etc.; Stacked code: PDF417, etc.
Max. frame rate	60 fps
Max. reading speed	84 codes/sec
Sensor type	CMOS, global shutter
Pixel size	4 µm × 4 µm
Sensor size	1/2.7”
Resolution	1280 × 1024
Exposure time	35 μs ~ 1 sec
Gain	0 dB ~ 15dB
Mono/color	Mono

Interfaces and I/O

Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, Fins, SLMP
Data interface	Fast Ethernet (100 Mbit/s)
Digital I/O	17-pin M12 connector for power and I/O: 3 non-isolated inputs (LineIn 0/1/2), 3 non-isolated outputs (LineOut 0/1/2), 1× RS-232, Device trigger via top button supported
Client software	IDMVS

Light

Light source	White/red/blue/IR light

Environment and compliance

Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, FCC, RoHS

Electrical

Power supply	24 VDC
Max. power consumption	20 W @ 24 VDC (built-in light on)

Mechanical

Lens mount	M12-Mount, Mechanical focus

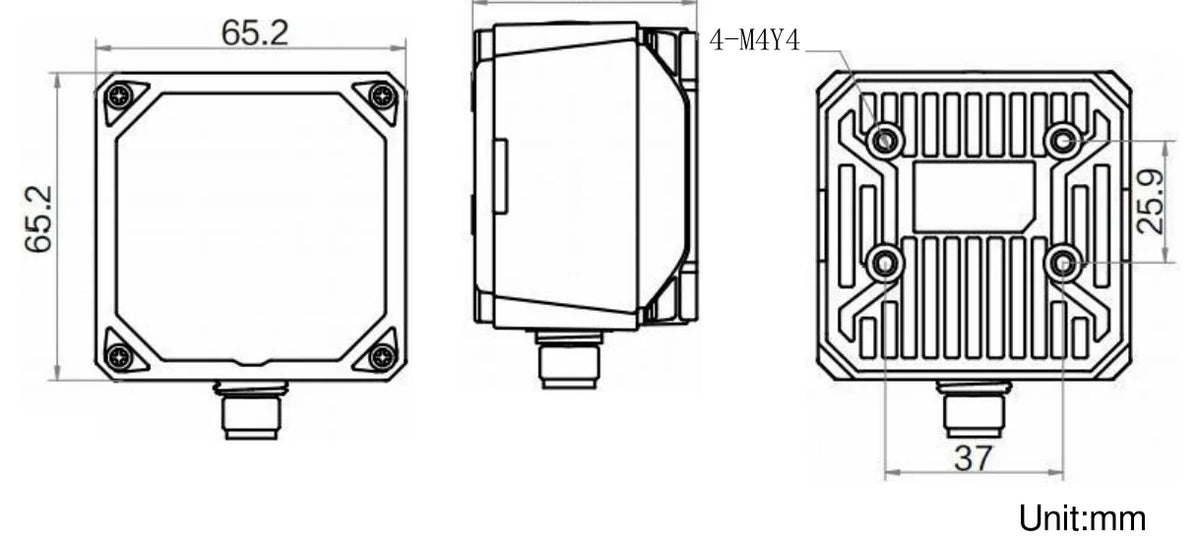

Dimension	65.2 mm × 65.2 mm × 47 mm
Weight	Approx. 280 g (0.6 lb.)
Shipping weight (estimated)	0.49 kg

Photo shows a representative model of this series; see the specifications for this model.

Downloads

Datasheet (PDF, Chinese)ID-EJH33-06M-WBN · 382 KB

Features

Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
Single cable provides a rich I/O interface for multiple input and output signals
14-LED composite light with flexible grouping
Polarization support: switch quickly between polarized and non-polarized modes
Top ring indicator and dual side-strip result indicators show working status at a glance
Built-in dual LED aimer for easy alignment
