Fixed code readers

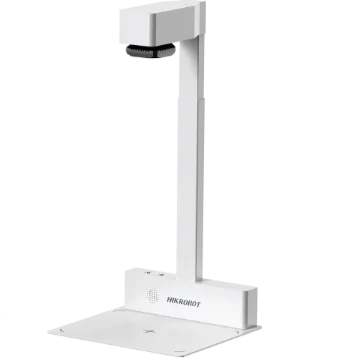

Hikrobot MV-IDM-E10(V2.0) 6 MP resolution, White light, Full-polarization pharma code reading all-in-one, Gen 2

Model MV-IDM-E10(V2.0)Hikrobot

Resolution3072 × 2048
Speed60 fps
Lens mountM12
Mono / colourMono

$719.00

Ships in 2-3 weeks

6.4 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable cameras:

3072 x 2048 fixed code reader, 30 fps, 90 codes/s, 8 mm lens (LS-CRD-0036)$920.00
3072 x 2048 fixed code reader, 30 fps, 90 codes/s, 12 mm lens (LS-CRD-0037)$920.00
3072 x 2048 fixed code reader, 30 fps, 90 codes/s, 16 mm lens (LS-CRD-0038)$920.00

Hikrobot MV-IDM-E10(V2.0) 6 MP resolution, White light, Full-polarization pharma code reading all-in-one, Gen 2. SoC with a dedicated deep-learning hardware core and models trained on millions of samples Real-time code-reading status feedback with status indicator

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-IDM-E10(V2.0)
Brand	Hikrobot
Lens cap	Polarizing lens cover
Indicator	Body status indicators, Code reading OK/NG result indicator
Voice prompts	Voice announcements supported (announces "startup complete" at power-on, automatically announces medicine box count) and volume adjustment

Sensor and imaging

Symbologies	1D code: Code 39, Code 93, Code 128 (incl. GS1-128), CodaBar, EAN8, EAN13, ITF25, ITF14, Matrix25, UPCA, UPCE, MSI, Code11, Industrial 2of5, China Post, Pharmacode; 2D code: QR Code (incl. GS1-QR), Data Matrix (incl. GS1-DM), Micro QR, AZTEC, Hanxin; Stacked code: PDF417
Max. frame rate	60 fps
Resolution	3072 × 2048
Mono/color	Mono

Interfaces and I/O

Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, Fins, UDP
Data interface	Type-C port: focus output; RJ45 Ethernet port: data transfer (100 Mbps Ethernet)
Client software	IDMVS

Light

Light source	White LED lamp

Environment and compliance

Humidity	20% RH to 95% RH (no condensation)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)

Electrical

Power supply	24 VDC
Max. power consumption	23 W@24 VDC

Mechanical

Lens mount	M12-mount, mechanical focus
Height adjustment	Factory default height: 580 mm; Adjustment range: 560 to 660 mm

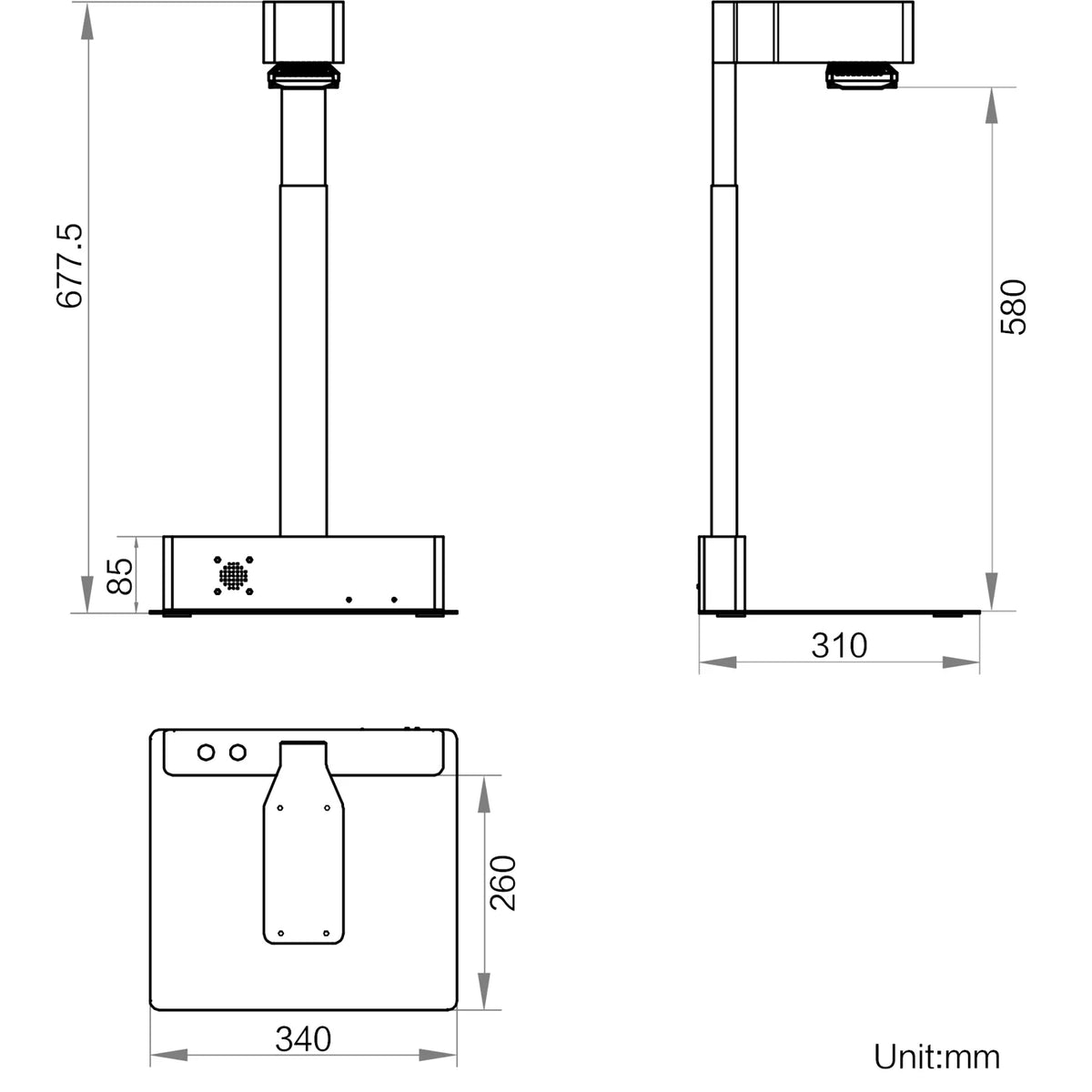

Dimension	340mm × 310mm × 677.5mm
Weight	Approx. 4.5 kg
Shipping weight (estimated)	6.40 kg

Downloads

Features

SoC with a dedicated deep-learning hardware core and models trained on millions of samples
Real-time code-reading status feedback with status indicator
Voice announcements on some models: startup complete and automatic medicine box count
Height-adjustable on some models for flexible switching between pharmacy and production use
One-button start, plug and play
Focus output support for seamless HIS integration
Feature-rich: duplicate-code filtering, presence-sensing trigger and more
Soft lighting optimized for comfortable human interaction
