Fixed code readers

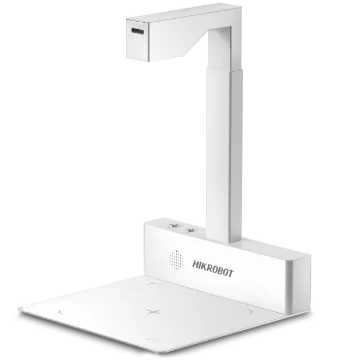

Hikrobot MV-IDM-B08 Cost-effective 2 MP resolution, White light, Fully polarized fast-boot pharmaceutical code recognition all-in-one unit

Model MV-IDM-B08Hikrobot

Resolution1536×1264
Speed60 fps
Lens mountM10
Mono / colourMono

$719.00

Ships in 2-3 weeks

7.1 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-IDM-B08 Cost-effective 2 MP resolution, White light, Fully polarized fast-boot pharmaceutical code recognition all-in-one unit. SoC with a dedicated deep-learning hardware core and models trained on millions of samples Real-time code-reading status feedback with status indicator

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-IDM-B08
Brand	Hikrobot
Lens cap	Polarizing lens cover
Indicator	Body status indicators, Code reading OK/NG result indicator
Voice prompts	Voice announcements supported (announces "startup complete" at power-on, automatically announces medicine box count) and volume adjustment

Sensor and imaging

Symbologies	1D code: Code 39, Code 93, Code 128 (incl. GS1-128), CodaBar, EAN8, EAN13, ITF25, ITF14, Matrix25, UPCA, UPCE, MSI, Code11, Industrial 2of5, China Post, Pharmacode; 2D code: QR Code (incl. GS1-QR), Data Matrix (incl. GS1-DM), Micro QR, AZTEC, Hanxin; Stacked code: PDF417
Max. frame rate	60 fps
Resolution	1536×1264
Mono/color	Mono

Interfaces and I/O

Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, Fins, UDP
Data interface	Type-C port: focus output; RJ45 Ethernet port: data transfer (100 Mbps Ethernet)
Client software	IDMVS

Light

Light source	White LED lamp

Environment and compliance

Humidity	20% RH to 95% RH (no condensation)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)

Electrical

Power supply	24 VDC
Max. power consumption	4 W@24 VDC

Mechanical

Lens mount	M10-Mount, Manual focus adjustable
Height adjustment	Factory default height: 360 mm; Adjustment range: 340 to 440 mm
Dimension	342 mm×310 mm×417.5 mm
Weight	Approx. 5 kg (11 lb.)
Shipping weight (estimated)	7.10 kg

Downloads

Features

SoC with a dedicated deep-learning hardware core and models trained on millions of samples
Real-time code-reading status feedback with status indicator
Voice announcements on some models: startup complete and automatic medicine box count
Height-adjustable on some models for flexible switching between pharmacy and production use
One-button start, plug and play
Focus output support for seamless HIS integration
Feature-rich: duplicate-code filtering, presence-sensing trigger and more
Soft lighting optimized for comfortable human interaction
