Hikrobot MV-BX0106-06-HSRP Ultra-compact smart code reader
MV-BX0106-06-HSRP
- Resolution 1408 × 1024
- Sensor CMOS, global shutter
$819.00
Not available in the United States
Cables
Hikrobot MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-HF-3m Integrated cable, Ethernet, high-flex, 90°, 3 m, 17-pin to open/RJ45/DB9
Model MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-HF-3mHikrobot
- Length3 m
- End AM12 17-pin A-code male
- End BRJ45, DB9F, 8-pin terminal
- Diameter8 mm
- Max. voltage30 VDC
- JacketPVC
$49.00
Ships in 2-3 weeks
0.31 kg shipping weight
Not available in the United States. Available for delivery to other countries.
lumaspecvision.com/products/lumaspec-mv-ida-pe-m12a17pf-up-openrj45db9-hf-3m
A 3 m length (M12 17-pin A-code male, 8 mm cable diameter) makes MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-HF-3m one of the shorter lengths in the series, for shorter runs. It also has a bending life of Over 500 x 10,000 cycles (U-type).

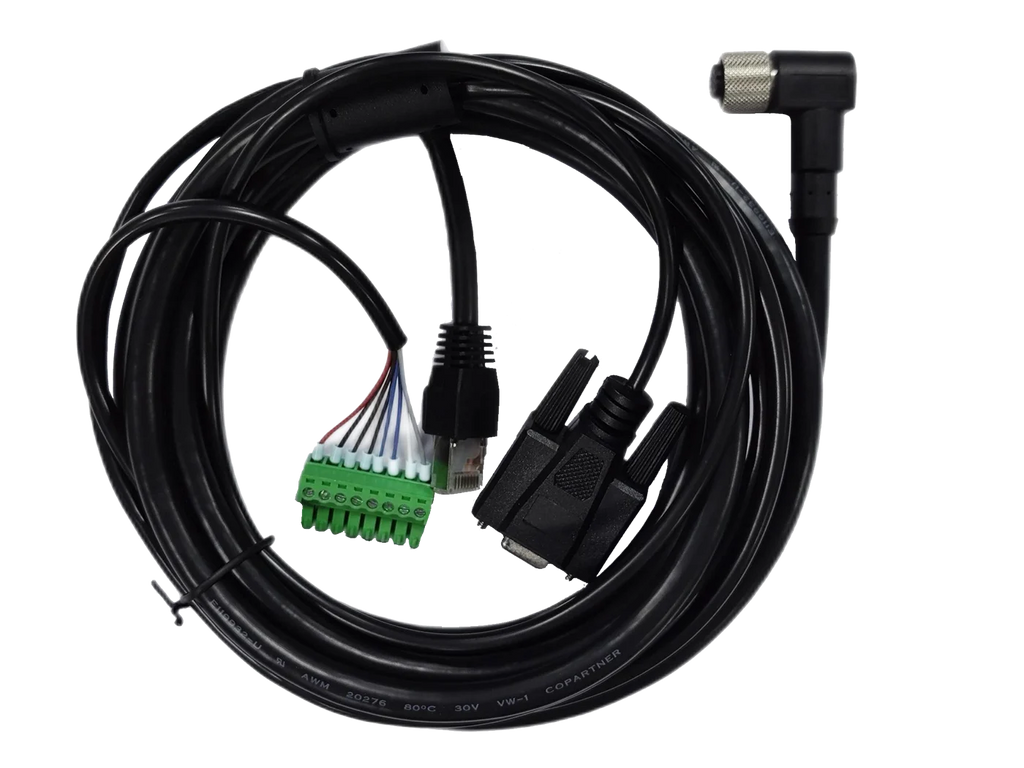

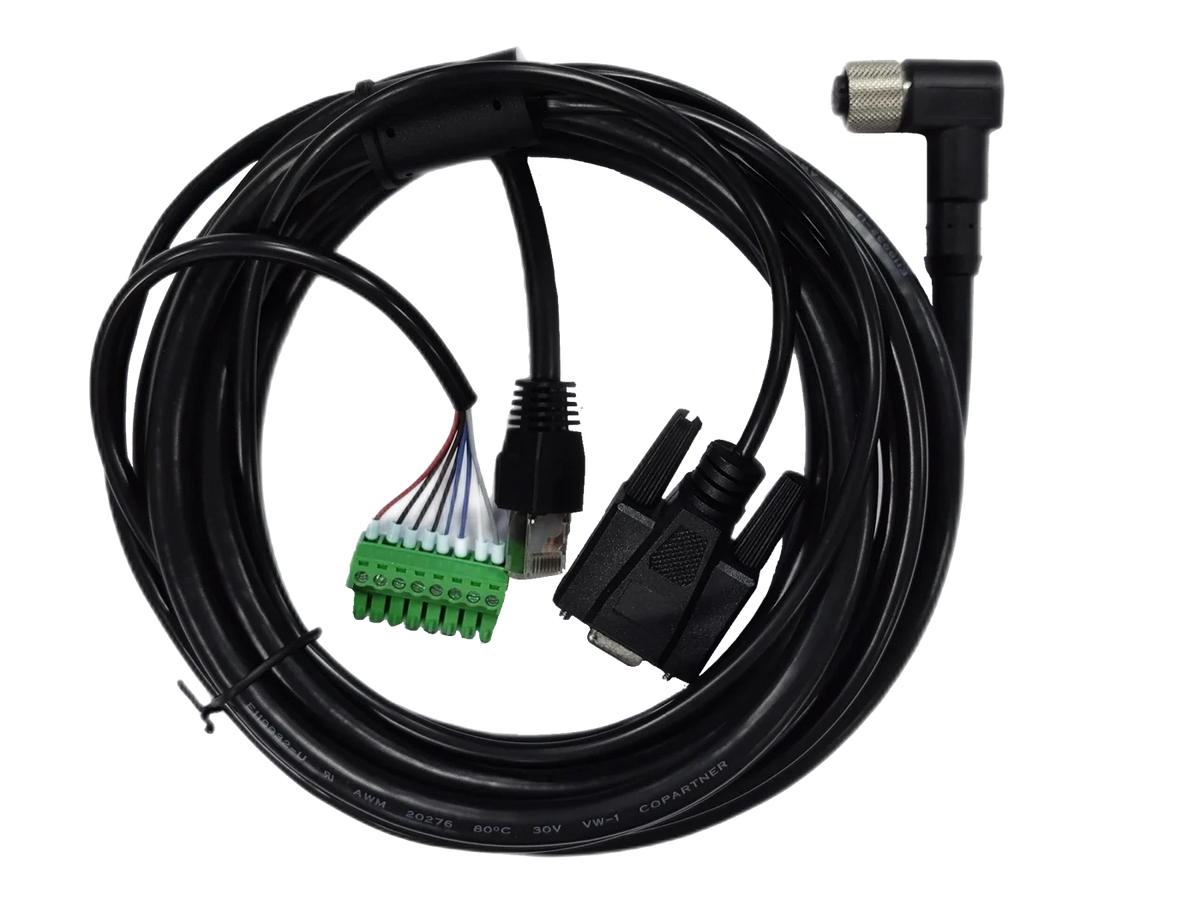

17-pin M12 right-angle high-flex GigE combo cable for camera power, I/O signals and data transmission.
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Final sale Hikrobot products cannot be returned or exchanged; a defective or wrong item is covered by the warranty. Return policy
CertificationsRoHSUL
Specifications
General
| Model | MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-HF-3m |
|---|---|
| Brand | Hikrobot |
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | M12 17-pin A-code male |
|---|---|
| End B connector | RJ45, DB9F, 8-pin terminal |
| Cable diameter | 8 mm |
| Cable mechanical | UL20276(26#*2P+AB)+26#*11C+26#*2C+AB |
| Cable color | Black |
| Connector durability | >500 cycles |
| Applicable scenario | Drag chain |
Environment and compliance
| Working temperature | -20 to 80 °C |
|---|---|
| Certification | RoHS, UL |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 3 m |
|---|---|
| Min. bending radius | 68 mm |
| Max. U-type bending cycles | Over 500 × 10,000 cycles |
| Shipping weight (estimated) | 0.31 kg |
Size
To scale, from the printed dimensionsFeatures of the MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-HF-3m
- Sits between the 2.5 m and 3.5 m versions of this series
- Rated for drag-chain use
- RoHS and UL compliant
- 3 m long, PVC jacket
- Bends to a 68 mm radius: a U-turn needs about 140 mm of width
Shared by the whole Code Reader Cable series1 point
- PVC jacket
Applications
- Moving machine axes: 3 m runs in drag chains (cable carriers)
- Wiring into a PLC, terminal block or power supply: one end is open wires / a terminal, the other an M12 17-pin A-code male connector
- Plugging into a PC network card or Ethernet switch port (RJ45 end)
- Planning the cable route: End A M12 17-pin A-code male, 8 mm thick, 68 mm minimum bending radius, PVC jacket
Complete the station
Engineering data
The MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-HF-3m at a glance
Min. bending radius68 mm
Operating temperature-20 to 80 °C
CertificationRoHS, UL
Max. voltage30 V DC
Compatible parts
Fits with this part
Checked against each device's printed connector (type and pin count) and its interface.
Code readers and smart cameras this cable connects to
Printed M12 17-pin connector on both parts
Hikrobot MV-SC2004EM-06S-WBN-Mini SC2000E series mini vision sensor, 0.4 MP, Mono, 6.72 mm focal length
MV-SC2004EM-06S-WBN-Mini
- Resolution 704 × 540
- Sensor CMOS, global shutter
$709.00
Not available in the United States
Printed M12 17-pin connector on both parts
Hikrobot IA-FBS-06AI-06MW 1.3 MP smart code reader
IA-FBS-06AI-06MW
- Resolution 1280 × 1024
- Sensor CMOS, global shutter
$779.00
Not available in the United States
Printed M12 17-pin connector on both parts
Hikrobot HY-ID3135A-CZ-W 1.3 MP smart code reader
HY-ID3135A-CZ-W
- Resolution 1280 × 1024
- Sensor CMOS, global shutter
$779.00
Not available in the United States
Printed M12 17-pin connector on both parts
Hikrobot SC016M-12M-01 1.6 MP 1/2.9" vision sensor
SC016M-12M-01
- Resolution 1408 × 1024
- Sensor CMOS, global shutter
$1,989.00
Not available in the United States
Printed M12 17-pin connector on both parts
Hikrobot HY-ZXJ6163C-W 1.6 MP color vision sensor
HY-ZXJ6163C-W
- Resolution 1408 × 1024
- Sensor CMOS, global shutter
$1,699.00
Not available in the United States
Printed M12 17-pin connector on both parts
Before you buy
Questions about the MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-HF-3m
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
What connectors and length does the MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-HF-3m have?
The end A connector is M12 17-pin A-code male. The end B connector is RJ45, DB9F, 8-pin terminal. The length is 3 m.
Which code readers and smart cameras does the MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-HF-3m connect to?
Fit-tested code readers and smart cameras whose printed M12 17-pin connector matches this cable: MV-BX0106-06-HSRP, MV-SC2004EM-06S-WBN-Mini, IA-FBS-06AI-06MW, HY-ID3135A-CZ-W, SC016M-12M-01 and HY-ZXJ6163C-W.
Is the MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-HF-3m rated for moving cable carriers?
Yes - the minimum bending radius is 68 mm. The applicable scenario is drag chain. The maximum U-type bending cycles are Over 500 × 10,000 cycles.
What voltage is the MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-HF-3m rated for?
The maximum voltage is 30 VDC.
What temperature range is the MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-HF-3m rated for?
Its operating temperature range is -20 to 80 °C.
Learn
Guides for this part
Engineering guides picked for the MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-HF-3m: how to choose it, set it up and get a better image.
Camera trigger cable selection for a signal generatorCamera trigger cable selection starts with the camera's documented connector pinout and input circuit, not the connector's appearance.
Robot camera cable failures: routing and fatigue checksRepeated robot camera cable failures call for a routing and motion audit before another replacement.
Do I need a camera GPIO cable for image acquisition?You do not need a camera GPIO cable for image acquisition if the documented data connection supplies power and you use free-running or software-triggered capture.
Other models in the Code Reader Cable series
See all 62 models in the seriesHow this model compares
- Compared with MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-ST-3m: applicable scenario Drag chain here, Static scenes there.
- Length 3 m; next size down 2.5 m (MV-IDA-PE-HDB15-USBRJ45DB9Open-ST-2.5m), up 3.5 m (MV-IDA-PE-HDB15-RJ45DB9Open-ST-3.5m); 11 different lengths in the series.
Swipe to see all columns
| Model | Length | End A | End B | Max. U-type bending cycles | Price | Availability | Link |
|---|---|---|---|---|---|---|---|
| MV-IDA-PE-M12A17pF-openRJ45FDB9-HF-3m | 3 m | M12 17-pin A-code female | RJ45F, DB9F, 8-pin terminal | Over 500 x 10,000 cycles | $49.00 | Ships in 2-3 weeks | View |
| MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-ST-3m | 3 m | M12 17-pin A-code male | RJ45, DB9F, 8-pin terminal | $49.00 | Ships in 2-3 weeks | View | |
| MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-HF-3mThis model | 3 m | M12 17-pin A-code male | RJ45, DB9F, 8-pin terminal | Over 500 x 10,000 cycles | $49.00 | Ships in 2-3 weeks | |
| MV-IDA-PE-M12A17pF-openRJ45DB9-SF-5m | 5 m | M12 17-pin A-code male | RJ45, DB9F, 8-pin terminal | $49.00 | Ships in 2-3 weeks | View | |
| MV-IDA-PE-M12A17pF-openRJ45DB9-HF-5m | 5 m | M12 17-pin A-code male | RJ45, DB9F, 8-pin terminal | 5 million times | $49.00 | Ships in 2-3 weeks | View |
| MV-IDA-PE-M12A17pF-openRJ45DB9-HF-7m | 7 m | M12 17-pin A-code male | RJ45, DB9F, 8-pin terminal | 5 million times | $59.00 | Ships in 2-3 weeks | View |
| MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-ST-10m | 10 m | M12 17-pin A-code male | RJ45, DB9F, 8-pin terminal | $59.00 | Ships in 2-3 weeks | View | |
| MV-IDA-PE-M12A17pF-openRJ45DB9-HF-10m | 10 m | M12 17-pin A-code male | RJ45, DB9F, 8-pin terminal | 5 million times | $59.00 | Ships in 2-3 weeks | View |
| MV-IDA-PE-M12A17pF-openRJ45DB9-HF-15m | 15 m | M12 17-pin A-code male | RJ45, DB9F, 8-pin terminal | 5 million times | $69.00 | Ships in 2-3 weeks | View |
