Camera trigger cable selection for a signal generator

A signal generator can provide repeatable camera triggers, but the connection is not defined by connector shape alone. The camera may expect a ground-referenced logic signal, an isolated input circuit, or a switching interface that the generator cannot drive directly. A cable with the correct shell can still put voltage on the wrong pin.

For buyers and integrators, the practical starting point is a documented electrical match. Establish the camera pinout, input limits, signal reference and pulse requirements before choosing the cable. Then verify the generator waveform and acquisition settings separately, so a configuration problem does not lead to unsafe wiring changes.

Decide what must connect before choosing a cable

Treat the trigger path as three separate selections: the camera-side cable, the generator-side connection and any electrical interface between them. A connector adapter changes the physical connection; it does not necessarily translate voltage, supply input current or provide isolation.

Start with the manufacturer's manual for the exact camera variant. Obtain documentation through the manufacturer or its authorized distributor, and record:

• The I/O connector designation, mating connector and pin-numbering view.
• The trigger-capable input pins and their associated return terminals.
• The input circuit diagram, operating limits and switching thresholds.
• The permitted pulse widths, polarity and trigger operating modes.
• Whether the connector also carries camera power or output signals.

A cable drawing must identify each conductor by pin, not merely by color. Colors are useful labels only when the cable documentation establishes their meaning.

Browse camera cables by connector and construction, then use the accessory finder to narrow the physical options. If you are still selecting the camera, require trigger documentation alongside the interface specifications when comparing area scan cameras.

For USB-connected equipment, external-trigger support checks explain why the data interface alone does not establish hardware-trigger capability.

Identify the input circuit and its reference

The input circuit determines whether a generator can connect directly. Do not assume every camera input behaves like a general-purpose logic input.

These are circuit categories, not interchangeable wiring instructions. Follow the diagram for the actual input. In particular, a terminal marked as an input return is not automatically equivalent to chassis, cable shield or protective earth.

For an isolated input, preserve the manufacturer's intended isolation arrangement. Do not add a camera-ground connection merely because a ground-referenced input would need one.

If the waveform appears correct but the camera does not respond, the trigger common-reference diagnostic covers that specific failure mode. Before making any connection, the camera GPIO wiring precautions provide a useful check against confusing power, inputs and outputs.

Select the camera-side cable by documented construction

Match the connector family, pin count, coding, gender and latch or thread arrangement. Check the mechanical drawing rather than relying on a photograph. A right-angle connector also needs the correct exit direction and enough clearance around the camera.

For an open-ended cable, request a pin-to-conductor table. For a fully terminated cable, request the end-to-end pin mapping. Confirm that every conductor needed by the input circuit is available, including any separate return or supply conductor.

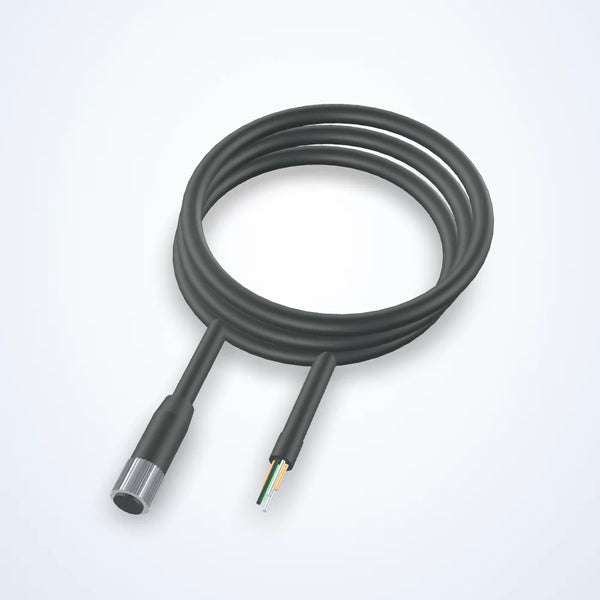

The LS-CBL-0208 is listed as a 2 m I/O and power cable with a right-angle connector.

The LS-CBL-0300 is listed with an M8 8-pin male connector and an open end, for drag-chain use.

These are construction examples, not confirmed matches for an unspecified camera. Neither listing establishes compatibility with your camera's pinout, input circuit or trigger thresholds. Obtain the matching documentation before ordering either cable for this task.

Also distinguish stationary routing from repeated movement. Choose construction documented for the actual motion, then follow its bend-radius and strain-relief requirements. Connector retention does not replace strain relief.

For the generator end, define the complete transition from its output connector to the camera cable. Use an insulated, documented connection arrangement rather than exposed conductors pressed against a connector contact.

Check generator voltage under the actual load

A generator's displayed amplitude may depend on its configured load assumption. Some instruments display the voltage expected across a matched termination rather than the voltage delivered into a high-impedance input. Read the generator manual before interpreting its amplitude and offset settings.

A simple resistive model illustrates the issue:

Here, V_open is the generator's open-circuit voltage, R_source its source resistance and R_input the load resistance. This is a steady-state estimate; it does not model cable reflections or input capacitance.

For a hypothetical generator with a 50 ohm source resistance, a 4 V open-circuit high level produces the following across a 50 ohm termination:

With a much higher input resistance, the same source approaches 4 V instead. Thus, a displayed 2 V level under a matched-load convention could correspond to nearly 4 V at a high-impedance input. These are illustrative values, not recommended camera settings.

Check the waveform's high level, low level, offset, overshoot and undershoot against the camera documentation. A waveform centered on zero may contain a prohibited negative voltage even when its peak-to-peak amplitude looks acceptable.

Convert pulse settings into a timing budget

Electrical compatibility and timing compatibility are different checks. A valid voltage pulse can still be too short, too frequent or presented while the camera cannot accept another trigger.

For a periodic pulse train:

Suppose a hypothetical test uses 100 Hz and a 40% high duty cycle:

Compare both intervals with the documented input requirements. Then check whether the acquisition mode can accept triggers every 10 ms at the selected exposure, image size and readout settings. Meeting the minimum input pulse width does not establish that the camera can sustain the requested acquisition rate.

For initial testing, use isolated pulses spaced well beyond the documented acquisition cycle. Increase frequency only after each pulse produces the expected acquisition event.

A trigger pulse does not necessarily set exposure duration. Depending on the selected mode, exposure may follow a separate exposure-time setting or a documented pulse-width-controlled behavior. The external-pulse frame-rate guide explains the distinction between pulse frequency and accepted acquisition rate.

Connect only after the electrical checks pass

Use a controlled connection sequence. Keep machine motion inhibited through the approved commissioning procedure; a camera trigger test must not unexpectedly initiate a machine cycle.

1. Disable the generator output. Configure waveform type, load convention, amplitude, offset and polarity before enabling it.
2. Remove camera power before changing wiring. Follow the manufacturer's connection sequence and handling precautions.
3. Verify the cable mapping. With the cable disconnected from equipment, check conductor continuity against its drawing and check for unintended shorts.
4. Identify the signal and return terminals. Use the camera's circuit diagram, not a generic connector pinout found elsewhere.
5. Install any required interface. A level translator, isolated interface or switching stage must match both sides electrically and support the required pulse timing.
6. Restore power and inspect the disabled-output condition. Confirm that the input is not held at an unintended voltage before issuing a pulse.
7. Enable one test pulse. Observe the electrical signal and acquisition response before enabling a continuous train.

Measure with a suitable instrument and probe arrangement. Bench instruments may have earth-referenced output or probe connections. Attaching a ground clip can create a connection that was absent from the planned circuit.

Never disconnect protective earth to resolve a reference problem. If the measurement arrangement is uncertain, have a qualified person establish a suitable differential or isolated measurement method.

Apply basic trigger settings without guessing feature names

First establish that ordinary acquisition works. Capture an image using a supported free-running or software-trigger mode, then stop acquisition before changing settings where the camera requires it.

GenICam feature names often follow the pattern below, but availability, selector behavior and writable states depend on the camera. Read the current device feature descriptions rather than assuming these nodes exist.

Read back the settings after applying them. Then start acquisition, issue a single pulse and check the received frame or documented event counter.

Use the trigger-source line configuration diagnostic when the expected physical line is missing or unavailable. Do not compensate for a configuration error by increasing generator voltage.

Verify the signal and acquisition independently

A useful acceptance test separates electrical evidence from application behavior. Record the waveform near the camera input, the active trigger settings and the number of acquisition events observed.

Begin with slow pulses. As an illustrative commissioning check, issue 20 widely spaced pulses and compare the generator count with camera events and received frames. A mismatch tells you where to investigate; it does not identify the cause by itself.

Change one variable at a time. Keep a known-working low-rate setup so you can distinguish a new timing limitation from a wiring regression.

If failures begin only when triggers arrive during an acquisition cycle, review the trigger-overlap configuration checks. Cable replacement is unlikely to solve a documented acquisition-mode restriction.

Know when direct generator wiring is the wrong answer

Use an interface rather than direct wiring when the documented circuits do not match. Examples include incompatible voltage ranges, insufficient input current, a required sinking output or differential signaling that a single-ended generator cannot supply.

An interface also needs a timing specification. Propagation delay shifts the trigger event; delay variation affects repeatability. Check both against the application's timing tolerance rather than treating electrical isolation as timing-neutral.

Do not improvise a resistor-only solution for an input whose circuit is unknown. A divider may reduce a steady voltage while leaving threshold margin, transient behavior and input current unresolved.

A longer cable may require additional signal-integrity assessment. Fast edges can create ringing even at a low repetition rate. Measure at the receiving end and use only the termination or conditioning arrangement supported by the equipment documentation.

Finally, an ordinary camera trigger connection is not a safety circuit. If the signal participates in a safety-related machine function, that function requires a separate compliant design and validation process.

Complete the pre-order checklist

Before placing the order, collect the evidence that establishes compatibility:

• Camera connector drawing: exact mating connector, pin numbering and mechanical clearance.
• Input circuit documentation: polarity, return path, thresholds, operating limits and input current.
• Cable assembly drawing: pin-to-conductor mapping, connector orientation and required conductors.
• Routing requirements: stationary or moving service, length, bend radius and strain relief.
• Generator documentation: source impedance, load-display convention, output levels and disabled-output behavior.
• Timing requirements: minimum high and low times, acquisition readiness and supported trigger behavior.
• Verification plan: safe measurement arrangement, slow-pulse test and recorded settings.

If any of these remain unknown, resolve them before energizing the connection. A connector match alone is not sufficient evidence.

Use the accessory configuration step once the interface is defined. For help selecting a cable, send the camera connector drawing, input circuit and generator output specifications through application support. Those documents make a compatibility review useful; a camera photograph alone does not.
