Hikrobot MV-DP2470-01P V2.0 MV-DP2470-01P(O-STD) V2.0

Model MV-DP2470-01P V2.0Hikrobot

TypeLaser profiler
Data points/profile3200
Reference distance565 mm
Resolution (Z-axis)10.39 μm to 169.79 μm

$8,549.00

List price

Ships in 2-3 weeks

2.13 kg shipping weight

Not available in the United States. Available for delivery to other countries.

MV-DP2470-01P V2.0: measurement range (z-axis) 670 mm, reference distance 565 mm, resolution (z-axis) 10.39 µm to 169.79 µm, profile data interval 43.9 µm to 177.4 µm, wavelength 405 nm.

Hikrobot MV-DP2470-01P V2.0 MV-DP2470-01P(O-STD) V2.0. Built-in high-accuracy algorithm and accuracy is up to submicron level. Adopts high frame rate chip with 23.9 kHz scan frame rate.

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-DP2470-01P V2.0
Brand	Hikrobot
Data points/profile	3200
Reference distance	565 mm
Measurement range (Z-axis)	670 mm
Measurement range (X-axis)	142 mm @ near field of view; 315 mm @ reference distance; 488 mm @ far field of view
Repeatability (Z-axis)*	4.45 μm @ data that sensor tests gauge block on optical platform*
Linearity Z-axis (±% of MR)	0.01
Profile data interval	43.9 μm to 177.4 μm
Laser safety class	Class 3B

Sensor and imaging

Resolution (Z-axis)	10.39 μm to 169.79 μm
Scan frame rate	1.7 kHz to 23.9 kHz (high frame rate mode)

Interfaces and I/O

Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	12-pin M12 interface provides power and I/O, including opto-isolated input × 2 (Line 0/9), differential input × 2 (Line 3/6), and differential output × 1 (Line 1)
Client software	3DMVS, VM3D, or third-party software

Light

Wavelength	405 nm

Environment and compliance

Ingress protection	IP67
Temperature	Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 85% RH (no condensation)

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended)

Electrical

Data output	Profile data, depth image, brightness image
Trigger mode	Software trigger, hardware trigger (differential encoder)
Power supply	24 VDC
Power consumption	Typ. 15.2 W @ 24 VDC

Mechanical

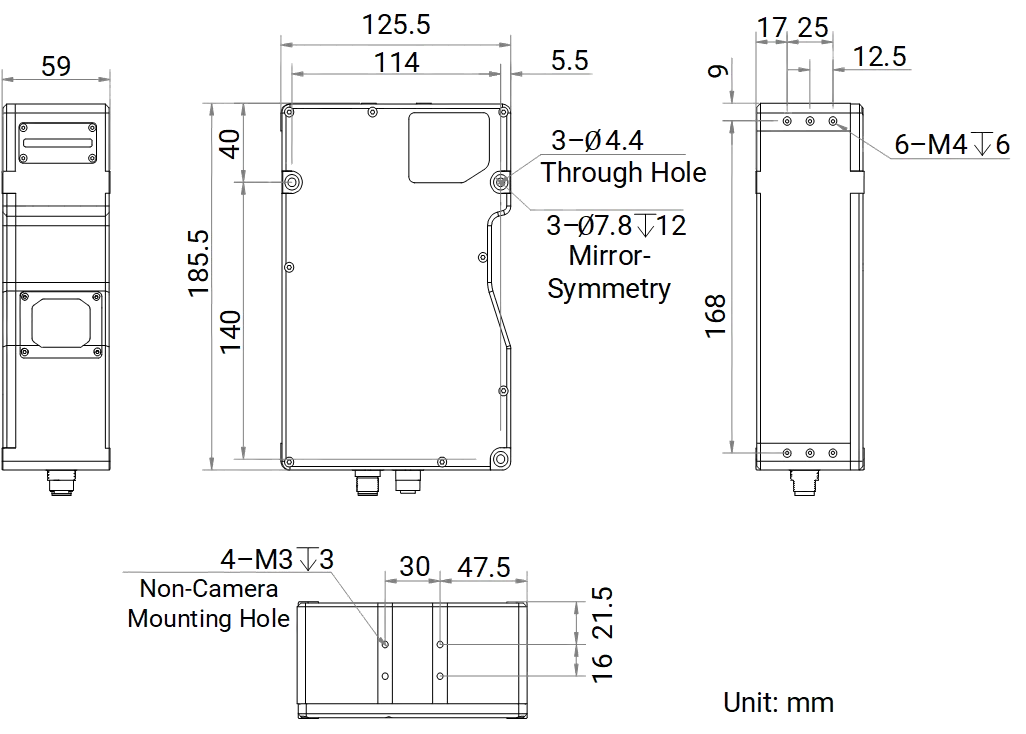

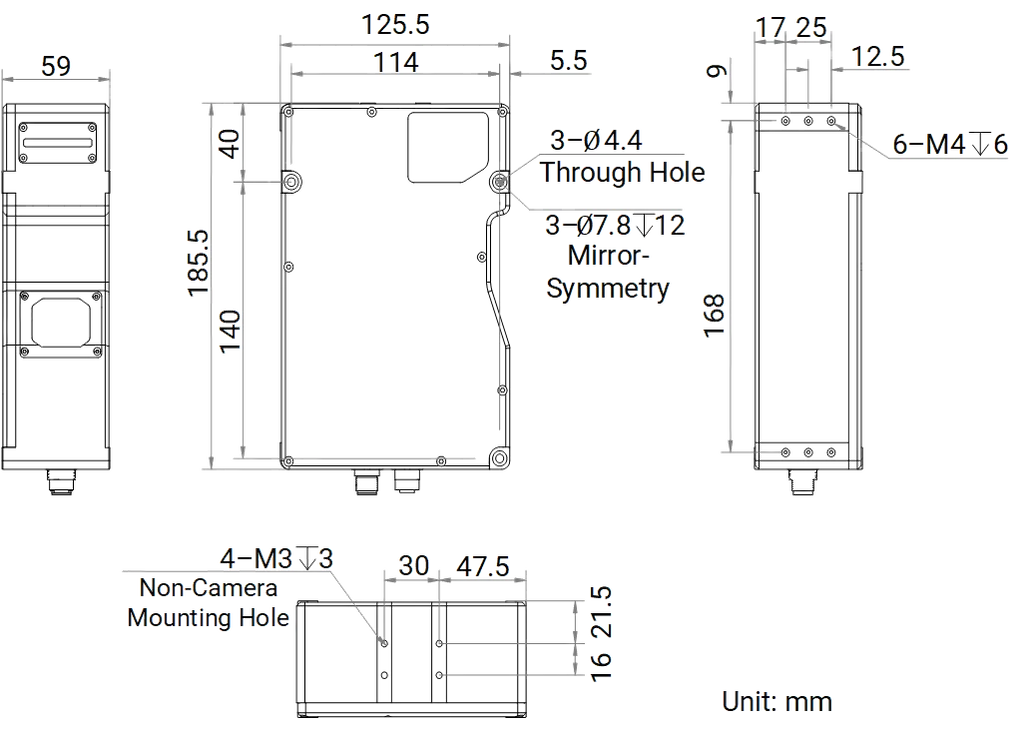

Dimension	185.5 mm × 125.5 mm × 59 mm (7.3" × 4.9" × 2.3")
Weight	Approx. 1450 g (3.2 lb.)
Shipping weight (estimated)	2.13 kg

Downloads

Features

Built-in high-accuracy algorithm and accuracy is up to submicron level.
Adopts high frame rate chip with 23.9 kHz scan frame rate.
Supports multiple exposure modes with good robustness.
Adopts multiple-frame integration technology to provide complete profiles.
Provides multiple filter modes with stable data.
Supports ROI selection and auto setting for easier operation.
