3D sensors

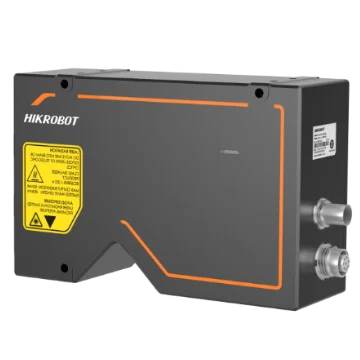

Hikrobot MV-DP2140-01P V2.0 3D Laser Profile Sensor

Model MV-DP2140-01P V2.0Hikrobot

TypeLaser profiler
Data points/profile3200
Reference distance141 mm
Resolution (Z-axis)6.38 μm to 7.09 μm

$8,549.00

Quote

Ships in 2-3 weeks

1.36 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-DP2140-01P V2.0 3D Laser Profile Sensor. Built-in high-accuracy algorithm and accuracy is up to submicron level. Adopts high frame rate chip with a maximum scan frame rate of 23.9 kHz.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-DP2140-01P V2.0
Brand	Hikrobot
Data points/profile	3200
Reference distance	141 mm
Measurement range (Z-axis)	26 mm
Measurement range (X-axis)	97.5 mm @ reference distance; 91 mm @ near field of view; 104 mm @ far field of view
Repeatability (Z-axis)*	2.07 μm @ data that sensor tests gauge block on optical platform
Linearity Z-axis (±% of MR)	0.01
Profile data interval	29.2 μm to 33.2 μm
Laser safety class	Class 3R

Sensor and imaging

Resolution (Z-axis)	6.38 μm to 7.09 μm
Scan frame rate	3.3 kHz to 23.9 kHz (high frame rate mode)

Interfaces and I/O

Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	12-pin M12 interface provides power and I/O, including opto-isolated input × 2 (Line 0/9), differential input × 2 (Line 3/6), and differential output × 1 (Line 1)
Client software	3DMVS, VM3D, or third-party software

Light

Laser wavelength	405 nm

Environment and compliance

Ingress protection	IP67
Temperature	Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 85% RH (no condensation)

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended)

Electrical

Data output	Original image, profile data, depth image, brightness image
Trigger mode	Software trigger, hardware trigger (differential encoder)
Power supply	24 VDC
Power consumption	Typ. 15.2 W @ 24 VDC

Mechanical

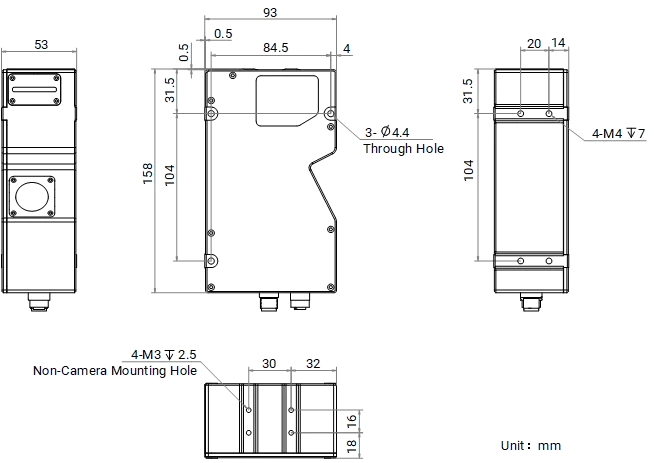

Dimension	158 mm × 93 mm × 53 mm (6.2" × 3.7" × 2.1")
Weight	Approx. 900 g (2.0 lb.)
Shipping weight (estimated)	1.36 kg

Downloads

Features

Built-in high-accuracy algorithm and accuracy is up to submicron level.
Adopts high frame rate chip with a maximum scan frame rate of 23.9 kHz.
Supports multiple exposure modes with good robustness.
Adopts multiple-frame integration technology to provide complete profiles.
Provides multiple filter modes with stable data.
Supports ROI selection and auto setting for easier operation.

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
