Hikrobot MV-DP2120-03P V2.0 3D Laser Profile Sensor

Model MV-DP2120-03P V2.0Hikrobot

Speed1.7 kHz to 23.9 kHz (high frame mode)
TypeLaser profiler
Data points/profile3200
Reference distance120 mm

$8,549.00

List price

Ships in 2-3 weeks

1.43 kg shipping weight

Not available in the United States. Available for delivery to other countries.

MV-DP2120-03P V2.0: measurement range (z-axis) 80 mm, reference distance 120 mm, resolution (z-axis) 3.66 µm to 8.36 µm, profile data interval 18.2 µm to 31.7 µm, wavelength 660 nm.

Hikrobot MV-DP2120-03P V2.0 3D Laser Profile Sensor. Built-in high-accuracy algorithm and accuracy is up to submicron level. Adopts high frame rate chip with 23.9 kHz scan frame rate.

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-DP2120-03P V2.0
Brand	Hikrobot
Data points/profile	3200
Reference distance	120 mm
Measurement range (Z-axis)	80 mm
Measurement range (X-axis)	58 mm @ near field of view; 76.5 mm @ reference distance; 95 mm @ far field of view
Repeatability (Z-axis)*	1.48 μm @ data that sensor tests gauge block on optical platform
Linearity Z-axis (±% of MR)	0.01
Profile data interval	18.2 μm to 31.7 μm
Laser safety class	Class 3R

Sensor and imaging

Resolution (Z-axis)	3.66 μm to 8.36 μm
Scan frame rate	1.7 kHz to 23.9 kHz (high frame mode)

Interfaces and I/O

Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input × 2 (Line 0/9), differential input × 2 (Line 3/6), differential output × 1 (Line 1).
Client software	3DMVS, VM3D, or third-party software

Light

Wavelength	660 nm

Environment and compliance

Ingress protection	IP67
Temperature	Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 85% RH (no condensation)

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended)

Electrical

Data output	Original image, profile data, depth image, brightness image
Trigger mode	Software trigger, hardware trigger (differential encoder)
Power supply	24 VDC
Power consumption	Typ. 15.2 W @ 24 VDC

Mechanical

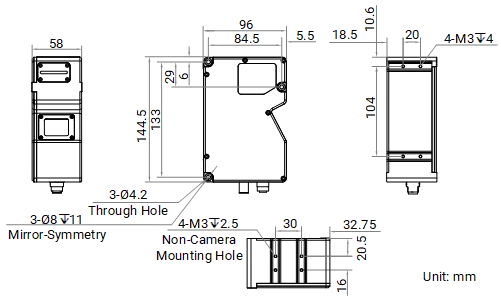

Dimension	144.5 mm × 96 mm × 58 mm (5.7" × 3.8" × 2.3")
Weight	Approx. 950 g (2.1 lb.)
Shipping weight (estimated)	1.43 kg

Downloads

Features

Built-in high-accuracy algorithm and accuracy is up to submicron level.
Adopts high frame rate chip with 23.9 kHz scan frame rate.
Supports multiple exposure modes with good robustness.
Adopts multiple-frame integration technology to provide complete profiles.
Provides multiple filter modes with stable data.
Supports ROI selection and auto setting for easier operation.
