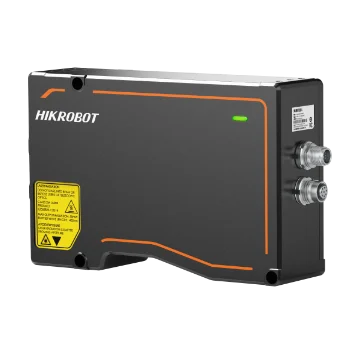

Hikrobot MV-DP2240-01P V2.0 MV-DP2240-01P(O-STD) V2.0

Model MV-DP2240-01P V2.0Hikrobot

TypeLaser profiler
Data points/profile3200
Reference distance245 mm
Resolution (Z-axis)6.47 μm to 26.11 μm

$9,679.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

2.13 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-DP2240-01P V2.0 MV-DP2240-01P(O-STD) V2.0. Built-in high-accuracy algorithm and accuracy is up to submicron level. Adopts high frame rate chip with 23.9 kHz scan frame rate.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-DP2240-01P V2.0
Brand	Hikrobot
Data points/profile	3200
Reference distance	245 mm
Measurement range (Z-axis)	200 mm
Measurement range (X-axis)	100 mm @ near field of view; 150 mm @ reference distance; 200 mm @ far field of view
Repeatability (Z-axis)*	1.73 μm @ data that sensor tests gauge block on optical platform*
Linearity Z-axis (±% of MR)	0.01
Profile data interval	31.2 μm to 67.7 μm
Laser safety class	Class 3R

Sensor and imaging

Resolution (Z-axis)	6.47 μm to 26.11 μm
Scan frame rate	1.7 kHz to 23.9 kHz (high frame rate mode)

Interfaces and I/O

Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	12-pin M12 interface provides power and I/O, including opto-isolated input × 2 (Line 0/9), differential input × 2 (Line 3/6), and differential output × 1 (Line 1)
Client software	3DMVS, VM3D, or third-party software

Light

Wavelength	405 nm

Environment and compliance

Ingress protection	IP67
Temperature	Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 85% RH (no condensation)

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended)

Electrical

Data output	Profile data, depth image, brightness image
Trigger mode	Software trigger, hardware trigger (differential encoder)
Power consumption	Typ. 15.2 W @ 24 VDC
Power supply	24 VDC

Mechanical

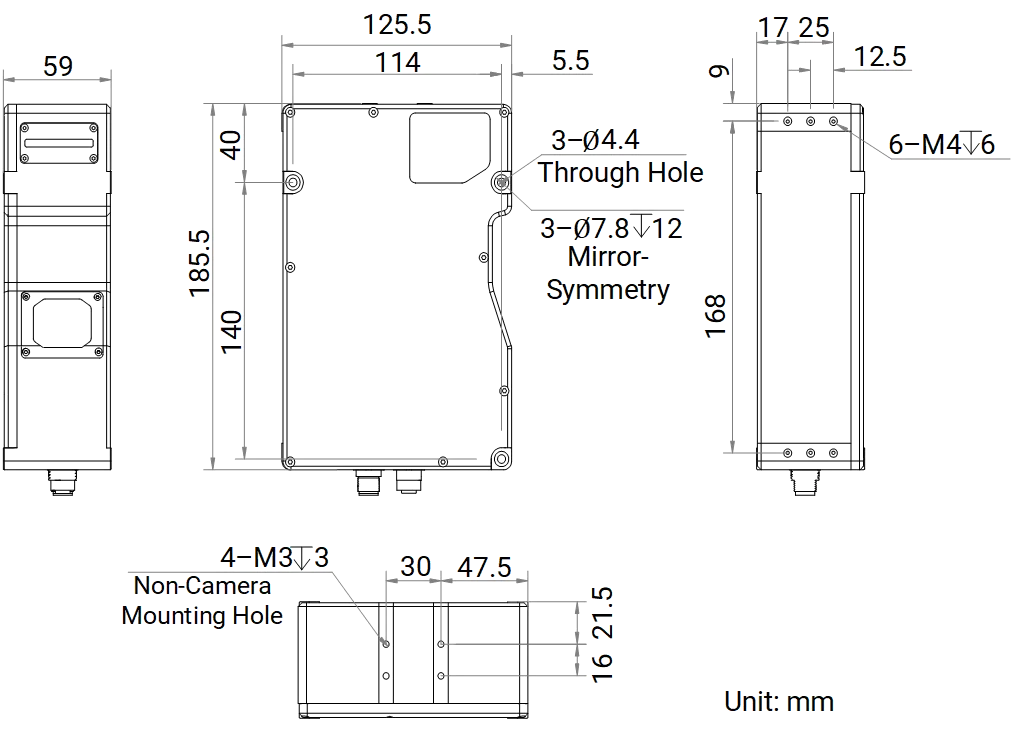

Dimension	185.5 mm × 125.5 mm × 59 mm (7.3" × 4.9" × 2.3")
Weight	Approx. 1450 g (3.2 lb.)
Shipping weight (estimated)	2.13 kg

Downloads

Features

Built-in high-accuracy algorithm and accuracy is up to submicron level.
Adopts high frame rate chip with 23.9 kHz scan frame rate.
Supports multiple exposure modes with good robustness.
Adopts multiple-frame integration technology to provide complete profiles.
Provides multiple filter modes with stable data.
Supports ROI selection and auto setting for easier operation.
