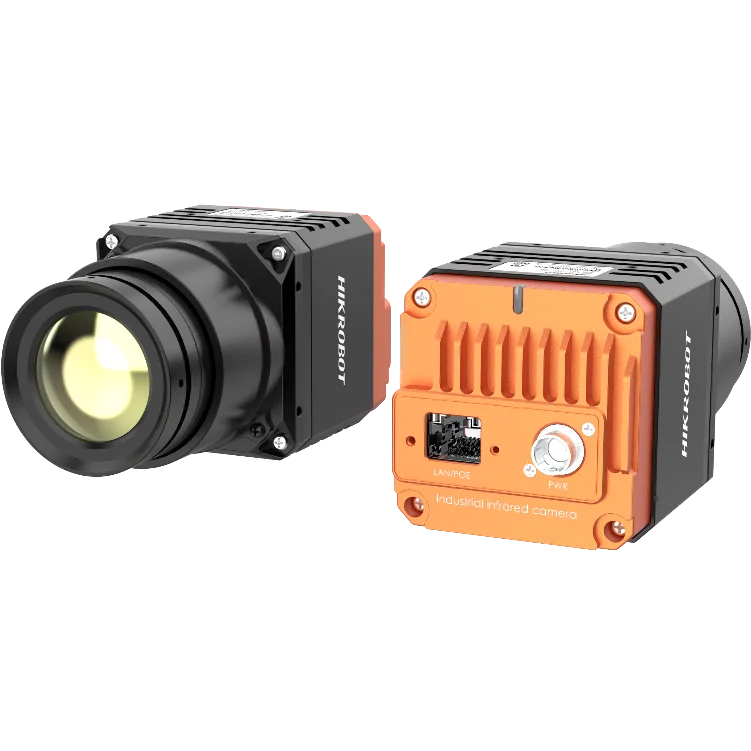

Hikrobot MV-CI003-GL-N25 0.3MP LWIR Camera, GigE, EFL 25mm
  • Hikrobot MV-CI003-GL-N25 0.3MP LWIR Camera, GigE, EFL 25mm
  • MV-CI003-GL-N25 dimensions (mm)

Infrared cameras

Hikrobot MV-CI003-GL-N25 0.3MP LWIR Camera, GigE, EFL 25mm

Model MV-CI003-GL-N25Hikrobot

  • Resolution640 × 512
  • SensorVanadium oxide uncooled detector
  • Speed50 fps @ 640 × 512
  • Lens mountM34x0.75
  • Pixel size17 μm
  • Focal length25 mm

Price on request

Ships in 2-3 weeks

0.48 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable cameras:

Ask an engineerBrowse Infrared cameras

MV-CI003-GL-N25: focal length 25 mm, field of view 24.6° x 18.5°, min. operation distance 0.25 m.

Hikrobot MV-CI003-GL-N25 0.3MP LWIR Camera, GigE, EFL 25mm. Adopts high-sensitivity vanadium oxide uncooled detector with 0.3 MP. Supports multiple palette modes, grayscale detection, image adjustment, etc.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CI003-GL-N25
BrandHikrobot
NETD< 35 mk (F1.0, 25 °C)
Response time< 10 ms
Image processSupports brightness, contrast, image detail strength, digital noise reduction (spatial and temporal)
Min. operation distance0.25 m
CompatibilityGigE Vision V2.0, GenICam

Optics

Focal length25 mm
Field of view24.6° × 18.5°

Sensor and imaging

Sensor typeVanadium oxide uncooled detector
Pixel size17 μm
Resolution640 × 512
Max. frame rate50 fps @ 640 × 512
Pixel formatMono 8/12/14, YUV422_YUYV_Packed

Interfaces and I/O

Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client softwareMVS or third-party software meeting with GigE Vision Protocol

Light

Color palettesWhite Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot, Dark Blue

Environment and compliance

Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 90% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux.

Electrical

Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 2.5 W @ 12 VDC

Mechanical

Lens mountM34*0.75
Dimension58 mm × 58 mm × 96.9 mm (2.3" × 2.3" × 3.8")
WeightApprox. 275 g (0.6 lb.)
Shipping weight (estimated)0.48 kg
