Infrared cameras

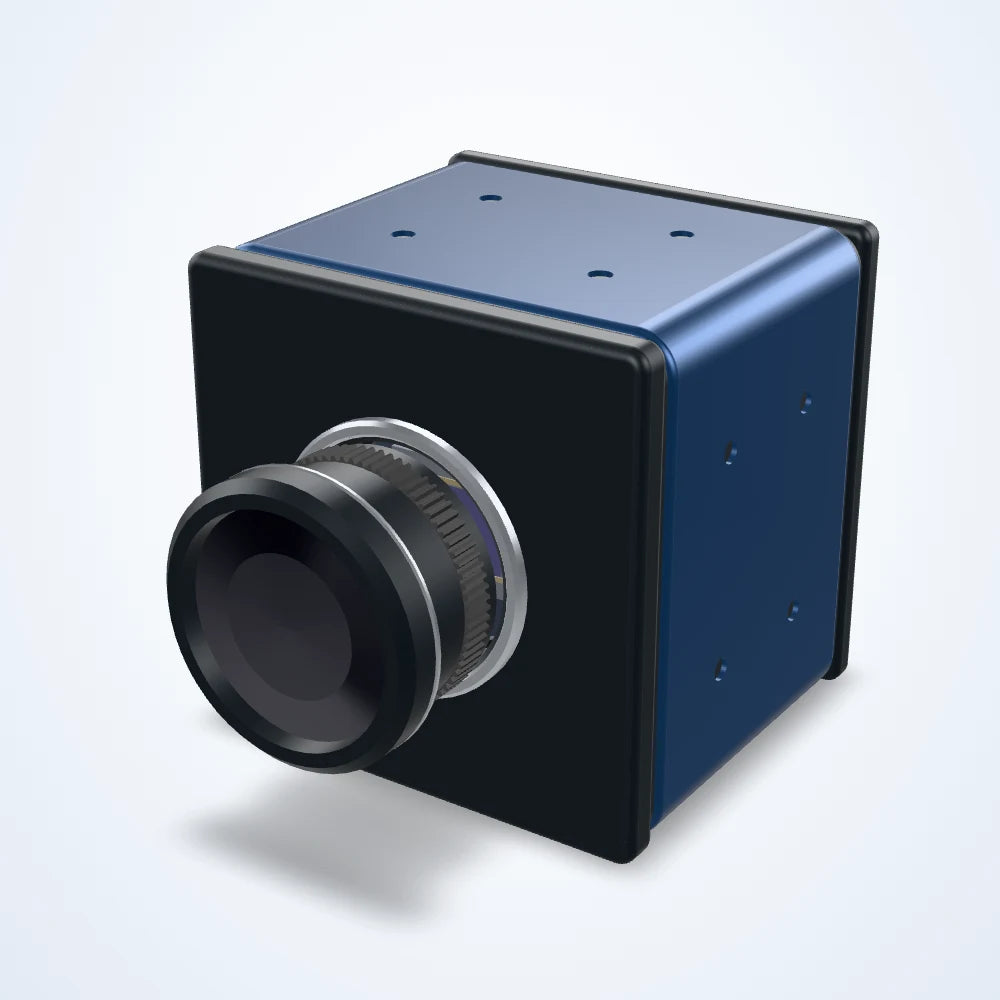

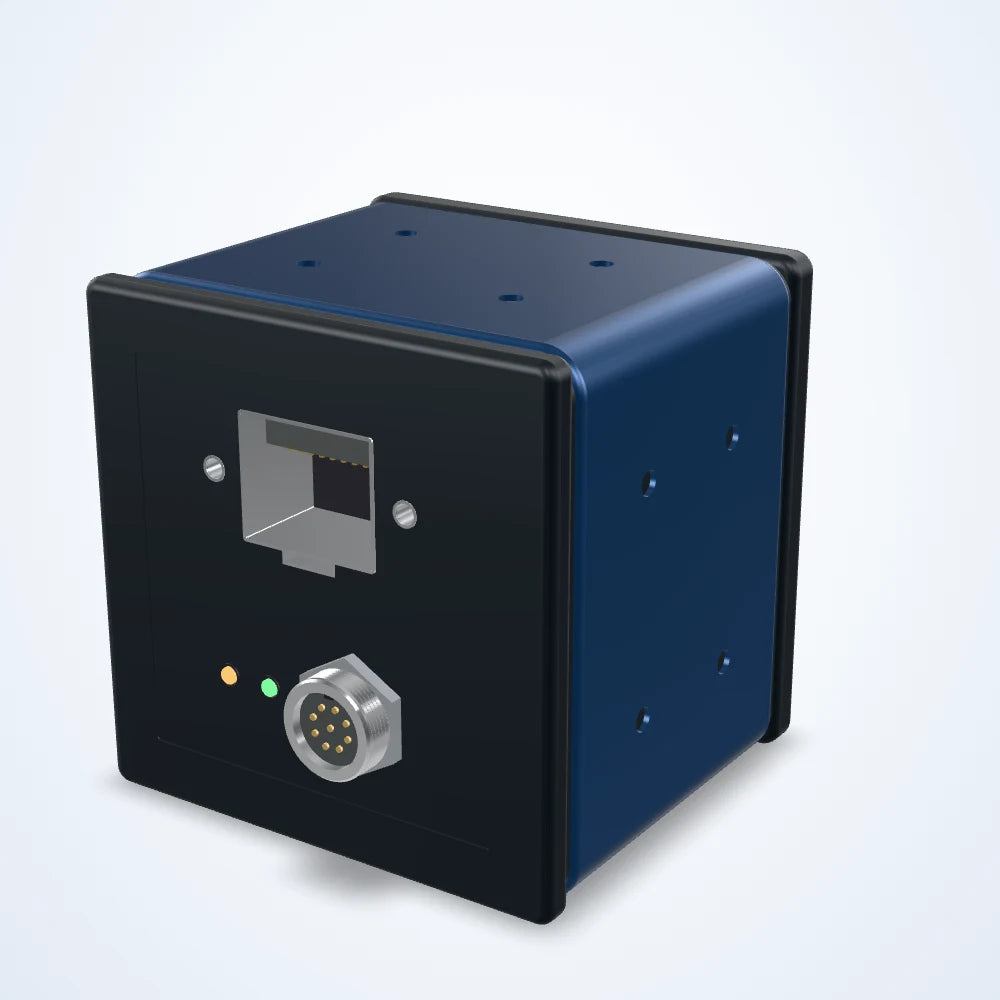

640 x 512 thermal camera, 7.5-14 μm, radiometric, up to 1500 °C, 25 Hz, GigE (LS-IRC-0041)
Model LS-IRC-0041
- Resolution640 × 512
- SensorUncooled Vanadium Oxide (VOx) Detector
- Speed25 Hz
- Pixel size12 μm
- Focal length4.1 mm F3.0 6.9 mm F3.5 19 mm F3.5
$7,800.00
Ships in 3-4 weeks
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Thermal camera for non-contact temperature measurement and process monitoring. Uncooled vanadium oxide sensor; 640 x 512 pixels of 12 μm; up to 25 Hz; GigE interface; spectral range 7500-14000 nm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-IRC-0041 |
|---|---|
| Spectral range | 7.5 ~ 14 μm |
| NETD | ≤ 40mK(@25° C,F#1.0,25 Hz) |
| Audio Standard | G.711a/G.711u/AAC/PCM |
| Digital Zoom | 1.0~8.0× Continuous Zoom (In 0.1×increment) |
| Spectral Band | 8~14 μm |
| Image Flip | Left-Right / Up-Down / Diagonal |
| Ethernet | Control &Image Transmission |
Optics
| Lens focal length | 4.1 mm F3.0 6.9 mm F3.5 19 mm F3.5 |
|---|---|
| Field of view | 100° ×82° 62.9° ×50.4° 22.9° ×18.4° |
Sensor and imaging
| Resolution | 640 × 512 |
|---|---|
| Max. frame rate | 25 Hz |
| Sensor type | Uncooled Vanadium Oxide (VOx) Detector |
| Pixel size | 12 μm |
| Spatial Resolution | 2.927mrad 1.74mrad 0.632mrad |
Interfaces and I/O
| Data interface | RJ45, 10/100M Adaptive Ethernet Port 1× RS485, supports extended Pelco-D protocol |
|---|---|
| Audio Interface | 1× Audio Input, 1× Audio Output |
| Alarm Interface | 1× Alarm Input, 1× Alarm Output |
| Storage Interface | Supports SD Card |
| Protocols | IPv4, HTTP, HTTPS, SMTP, FTP, UPnP, DNS, DDNS, NTP, RTCP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP |
| Analog Video Output | 1 Video Output |
| Network Interface | RJ45 10M/100M/1000M Adaptive |
| External Power Supply, Connector Type | DC Power Supply |
Light
| Brightness\Contrast Adjustment | Manual/Auto 0 (Default)/Auto 1 |
|---|---|
| Pseudo Color | 18 Pseudo Colors Supported |
Environment and compliance
| Temperature range | 0 °C ~800 °C ,600~2000 °C |
|---|---|
| Temperature Accuracy | ±2 °C or ±2% of reading, whichever is greater |
| Operating temperature | -20° C~+60 °C |
| Object Temperature Range | 0 °C~ 400 °C 400 °C~ 1500 °C |
| Temperature Measurement Tools | Anyfixedpoint Fullscreenmax./min. temperaturecapture Centerpoint Line/Areaanalysistool Manuallychoosetemperaturewidth Radartemperaturemeasurement tool |
| Storage temperature | -40 °C~ +70 °C |
| Humidity | 5%–95% RH (Non-Condensing) |
| Shock | 30g, 11 ms, All Axes |
| Vibration | 4.3g, Random, All Axes |
Electrical
| Power supply | 12 V DC or PoE Power Supply |
|---|---|
| Power consumption | ＜ 2.5 W |
| Polarity | Black Hot / White Hot |
| Voltage | 9–26 VDC |
Mechanical

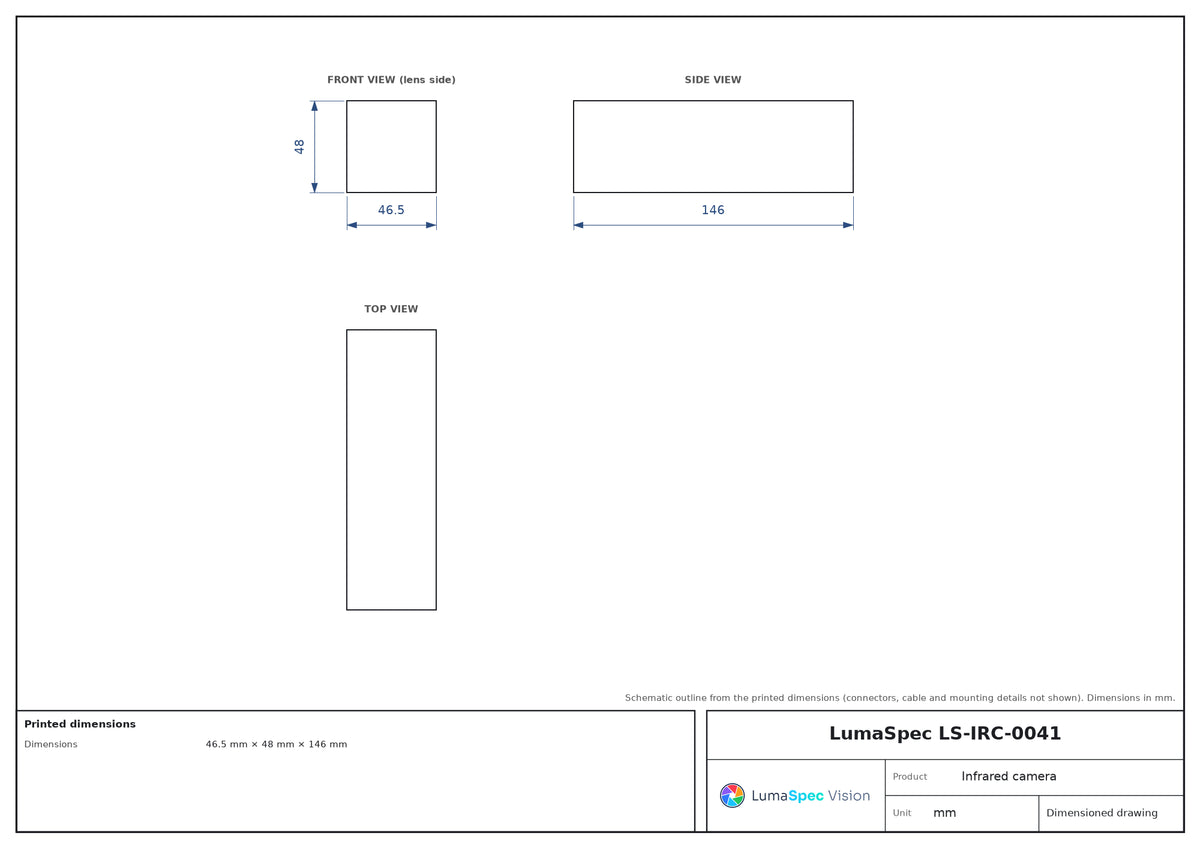

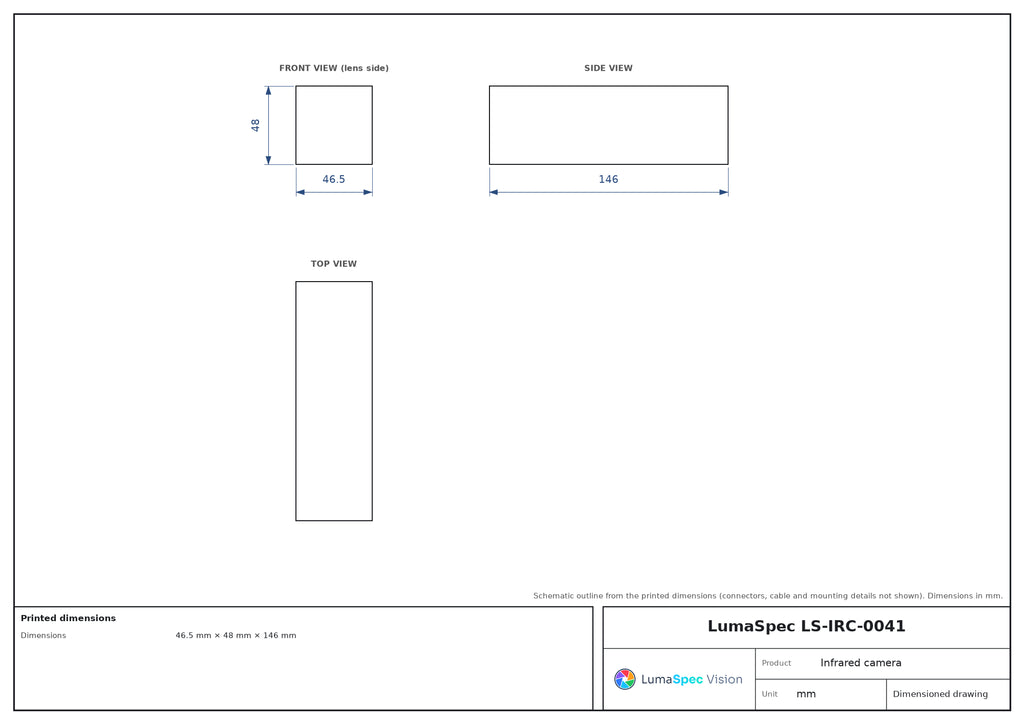

| Dimensions | 46.5 mm × 48 mm × 146 mm (337g ±5g) |
|---|---|
| Housing Material | Aluminum |
| Shipping weight | 2.00 kg |
