Rendered illustration: the actual product may differ in appearance.
Infrared cameras
640 x 512 thermal camera, 8-14 μm, 50 Hz, GigE (LS-IRC-0047)
Model LS-IRC-0047
- Resolution640x512
- SensorUncooled VOx Detector
- InterfaceGigE
- Speed50 fps
- Lens mountC-mount
- Pixel size17 μm
$5,885.00
Ships in 3-4 weeks
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Thermal camera for non-contact temperature measurement and process monitoring. Uncooled VOx detector; 640 x 512 pixels of 17 μm; up to 50 Hz; GigE interface; C-mount lens mount; spectral range 8000-14000 nm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-IRC-0047 |
|---|---|
| Spectral range | 8000-14000 nm |
| NETD | <35 mk(F1.0, 25 °C) |
| Response Time | <10 ms |
| Image Processing | Supports Brightness, Contrast, Image Detail Enhancement, Digital Noise Reduction (Time Domain, Spatial Domain) |
| FOV | 24.6° × 18.5° |
Optics
| Lens focal length | 25 mm |
|---|---|
| M.O.D | 0.25 m |
Sensor and imaging
| Max. frame rate | 50 fps |
|---|---|
| Resolution | 640x512 |
| Pixel size | 17 μm |
| Sensor type | Uncooled VOx Detector |
| Pixel format | Mono 8/12/14, YUV422_YUYV_Packed |
Interfaces and I/O
| Data interface | GigE |
|---|---|
| Digital I/O | Opto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1 |
Light
| Pseudo-color Mode | White Hot, Black Hot, Fusion 1, Rainbow,Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot, Dark Blue |
|---|
Environment and compliance
| Certification | GigE Vision,GenICam |
|---|---|
| Operating temperature | -30- 60°C(Working) -30~70 °C(Storage) |
Computing
| Operating system | Windows/Linux |
|---|
Electrical
| Power supply | DC 9-24 V, Supporting PoE |
|---|---|
| Power consumption | 12 V @2.5 W |
Mechanical
| Lens mount | C-Mount |
|---|---|

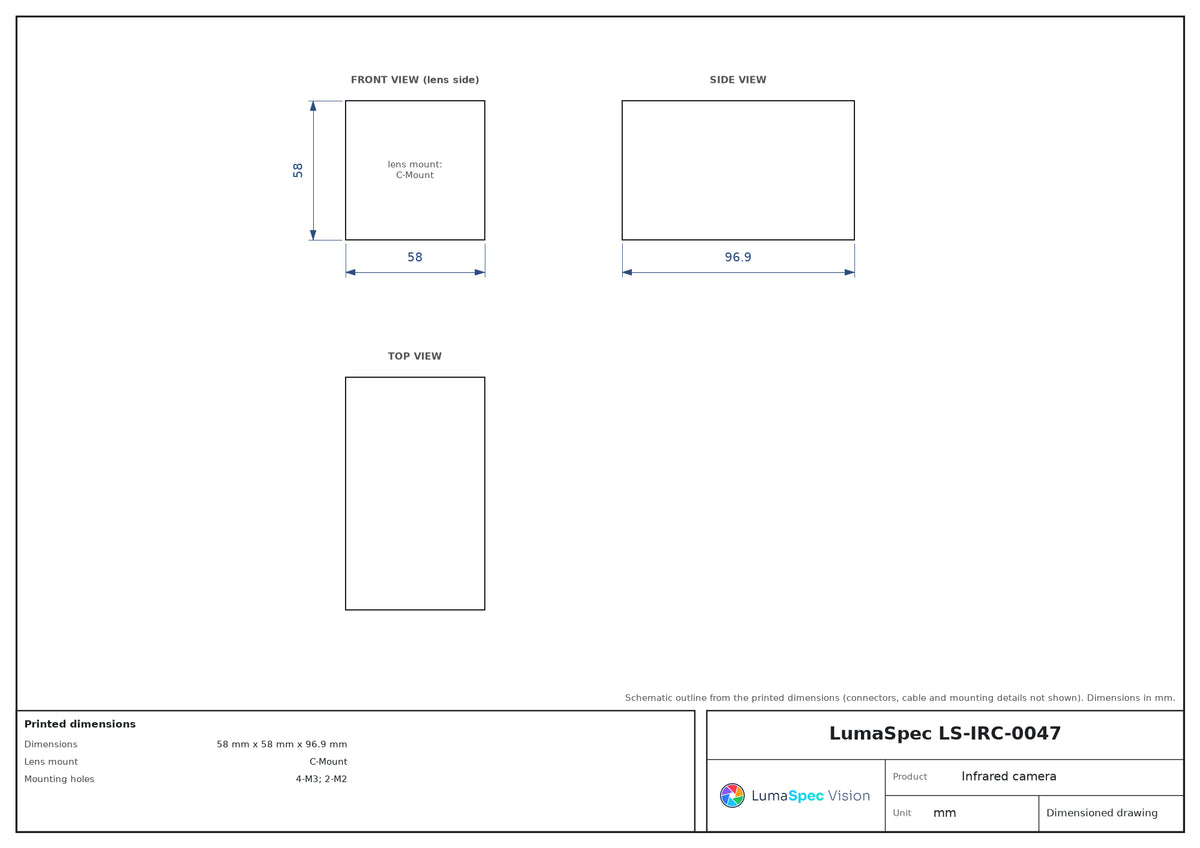

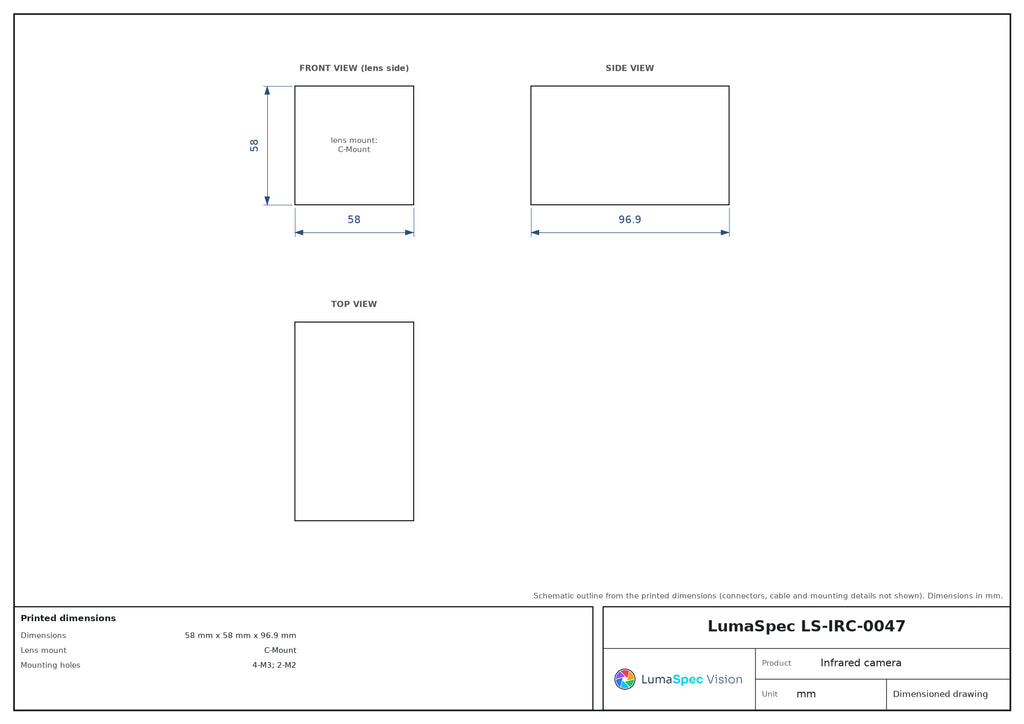

| Dimensions | 58 mm x 58 mm x 96.9 mm |
| Weight | 275g |
| Mounting holes | 4-M3; 2-M2 |
