384 x 288 thermal camera, 8-14 μm, radiometric, 50 Hz, Camera Link
  • 384 x 288 thermal camera, 8-14 μm, radiometric, 50 Hz, Camera Link
  • 384 x 288 thermal camera, 8-14 μm, radiometric, 50 Hz, Camera Link

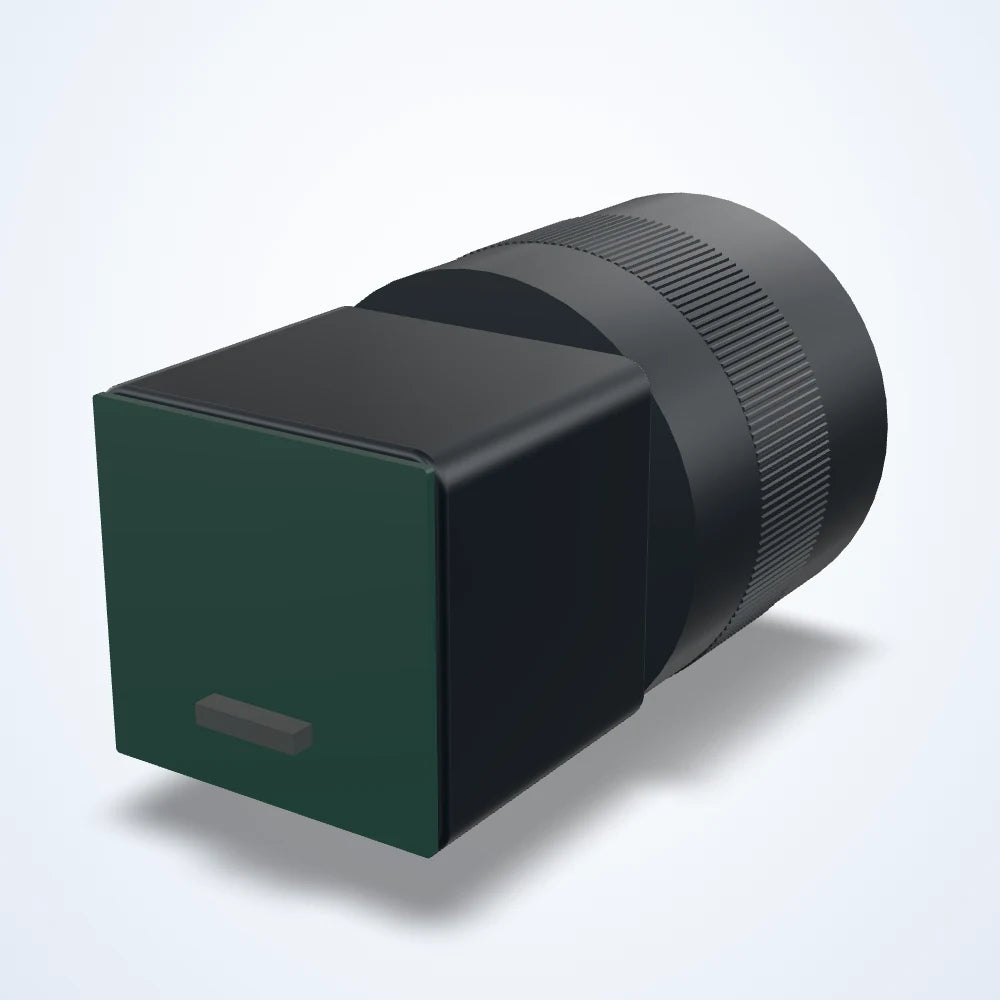

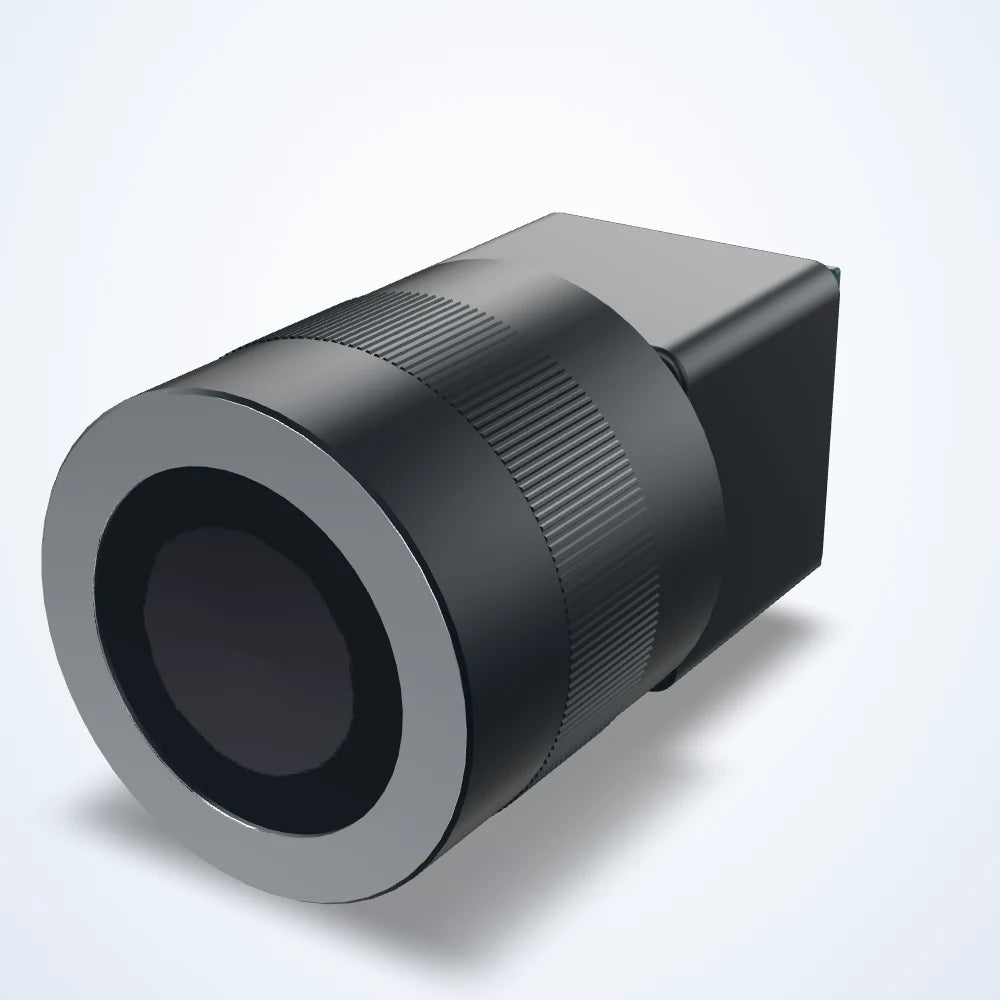

Rendered illustration: the actual product may differ in appearance.

Infrared cameras

384 x 288 thermal camera, 8-14 μm, radiometric, 50 Hz, Camera Link (LS-IRC-0037)

Model LS-IRC-0037

  • Resolution384 px x 288 px
  • SensorVOx Uncooled detector
  • InterfaceUSB/CameraLink & Ethernet
  • Speed50 Hz
  • Pixel size12 μm x 12 μm
$6,950.00

Ships in 3-4 weeks

0.16 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

384 x 288 thermal camera, 8-14 μm, radiometric, 50 Hz, Camera Link (LS-IRC-0037)LS-IRC-0037

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Thermal camera for non-contact temperature measurement and process monitoring. VOx uncooled detector; 384 x 288 pixels of 12 μm; up to 50 Hz; Camera Link interface; spectral range 8000-14000 nm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-IRC-0037
Digital Zoom1.0-8.0x
NETD≤40mK@25 °C,F#1.0
Spectral range8~14 μm
Electronic zoom1.0~8.0×continuous zoom (step 0.1), arbitrary area magnification
Image ProcessingBased on scene non-uniformity correction/image detail strength/Brightness &Contrast Adjustment/Time-domain filtering, air-domain filtering for noise reduction
Image MirrorHorizontal / Vertical / Diagonal
ZoomSupport
Analog Video1 Channel PAL

Optics

Lens focal lengthAthermal IR Lens/Motorized Fixed Focus IR Lens/Continuous zoom IR Lens
FocusSupport auto/variable

Sensor and imaging

Resolution384 px x 288 px
Sensor typeVOx Uncooled detector
Pixel size12 μm x 12 μm
Max. frame rate50 Hz

Interfaces and I/O

Data interfaceUSB/CameraLink & Ethernet
Serial Communication InterfaceRS-232/RS-485(PELCO-D protocol only)(Optional)
Extended ComponentBLVCA

Light

Color PalettesSupport

Environment and compliance

Operating temperature-40 - 70°C(Working) -45 - 85 °C(Storage)

Computing

Operating systemWindows

Electrical

PolarityBlack-hot/white-hot
Power consumption＜1.8 W

Mechanical

Dimensions44.5 mm × 43 mm
Weight80±10g
