640 x 512 thermal camera, 7.5-14 μm, radiometric, up to 2000 °C, 25 Hz, GigE
  • 640 x 512 thermal camera, 7.5-14 μm, radiometric, up to 2000 °C, 25 Hz, GigE
  • 640 x 512 thermal camera, 7.5-14 μm, radiometric, up to 2000 °C, 25 Hz, GigE

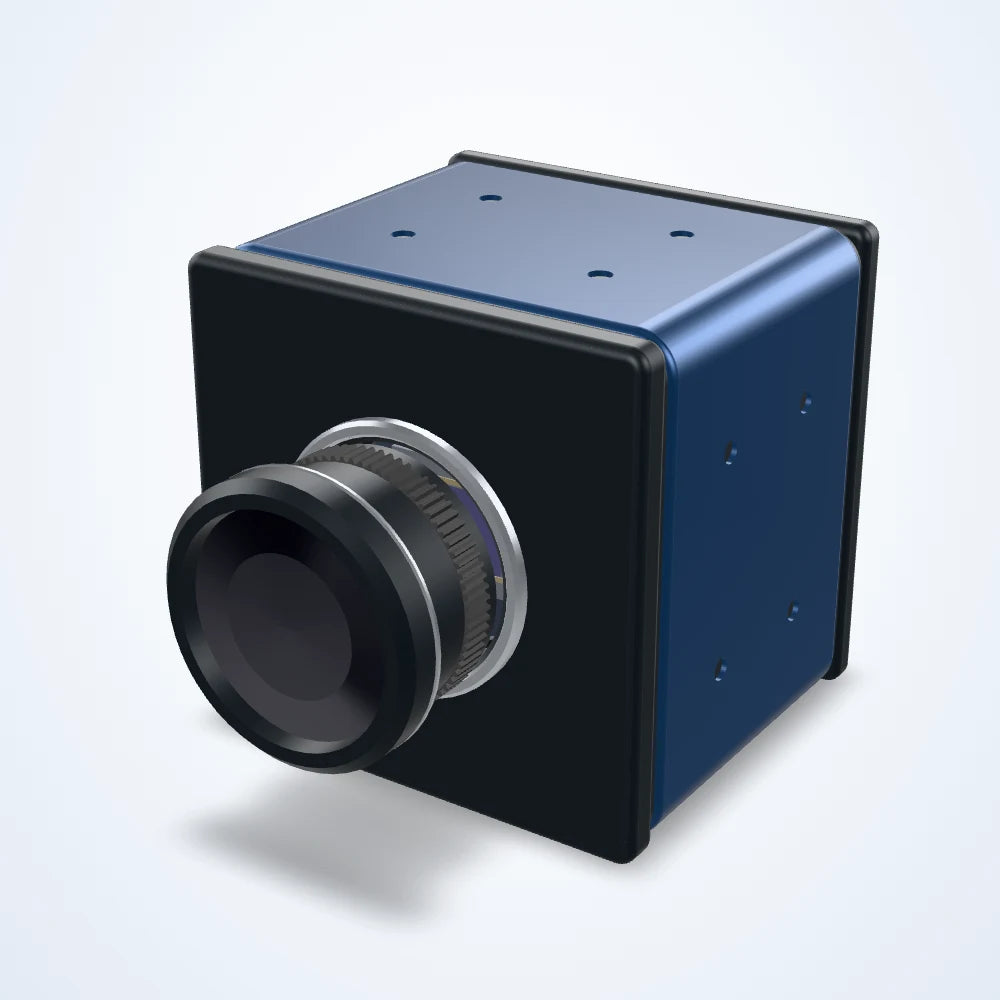

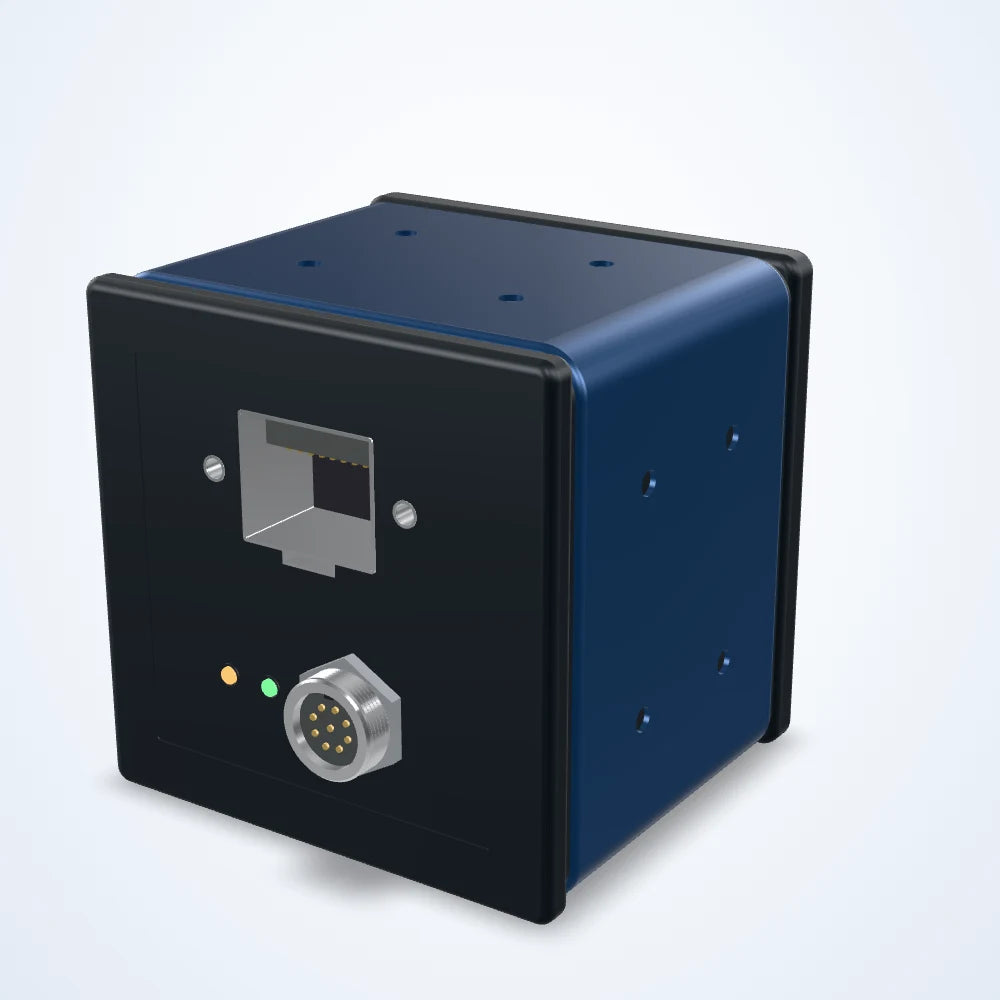

Rendered illustration: the actual product may differ in appearance.

Infrared cameras

640 x 512 thermal camera, 7.5-14 μm, radiometric, up to 2000 °C, 25 Hz, GigE, 640x512 0 °C to +2000 °C with Protective enclosure (LS-IRC-0042)

Model LS-IRC-0042

  • Resolution640 × 512
  • SensorUncooled Vanadium Oxide (VOx) Detector
  • Speed25 Hz
  • Pixel size12 μm
$9,300.00

Ships in 3-4 weeks

2.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

640 x 512 thermal camera, 7.5-14 μm, radiometric, up to 2000 °C, 25 Hz, GigE, 640x512 0 °C to +2000 °C with Protective enclosure (LS-IRC-0042)LS-IRC-0042

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Thermal camera for non-contact temperature measurement and process monitoring. Uncooled vanadium oxide sensor; 640 x 512 pixels of 12 μm; up to 25 Hz; GigE interface; spectral range 7500-14000 nm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-IRC-0042
Spectral range7.5 ~ 14 μm
NETD≤ 40mK(@25° C,F#1.0,25 Hz)
Audio StandardG.711a/G.711u/AAC/PCM
Digital Zoom1.0~8.0× Continuous Zoom (In 0.1×increment)

Sensor and imaging

Resolution640 × 512
Max. frame rate25 Hz
Sensor typeUncooled Vanadium Oxide (VOx) Detector
Pixel size12 μm

Interfaces and I/O

Data interfaceRJ45, 10/100M Adaptive Ethernet Port 1× RS485, supports extended Pelco-D protocol
Audio Interface1× Audio Input, 1× Audio Output
ProtocolsIPv4, HTTP, HTTPS, SMTP, FTP, UPnP, DNS, DDNS, NTP, RTCP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP

Environment and compliance

Temperature range0 °C ~800 °C ,600~2000 °C
Temperature Accuracy±2 °C or ±2% of reading, whichever is greater
Operating temperature-20° C~+60 °C

Electrical

Power supply12 V DC or PoE Power Supply
Power consumption＜ 2.5 W

Mechanical

Shipping weight2.00 kg
